STD7NM80-1

STD7NM80-1 Overview

RoHS compliant with Details Input bias current of Through Hole Package type is IPAK-3 Single 1 Channel for basic signal processing The transistor polarity is N-Channel. 800 V is the Vds - Drain-Source Breakdown Voltage Continuous Drain Current identified as 6.5 A; The Rds On - Drain-Source Resistance of the product is 1.05 Ohms. The Vgs - Gate-Source Voltage attribute for this product is 30 V. 18 nC Gate Charge of Qg; Maximum Operating Temperature: + 150 C Si is the technology used. Tube is the packaging method for this product Enhancement Channel Mode Configuration Single Fall Time of 10 ns - 55 C minimum operating temperature The power dissipation is 90 W. 8 ns Rise Time Product belongs to the N-channel MDmesh series. 1 N-Channel Transistor Type Typical Turn-Off Delay Time of 35 ns; The 20 ns typical turn-on delay time The Unit Weight is 0.139332 oz.

STD7NM80-1 Image

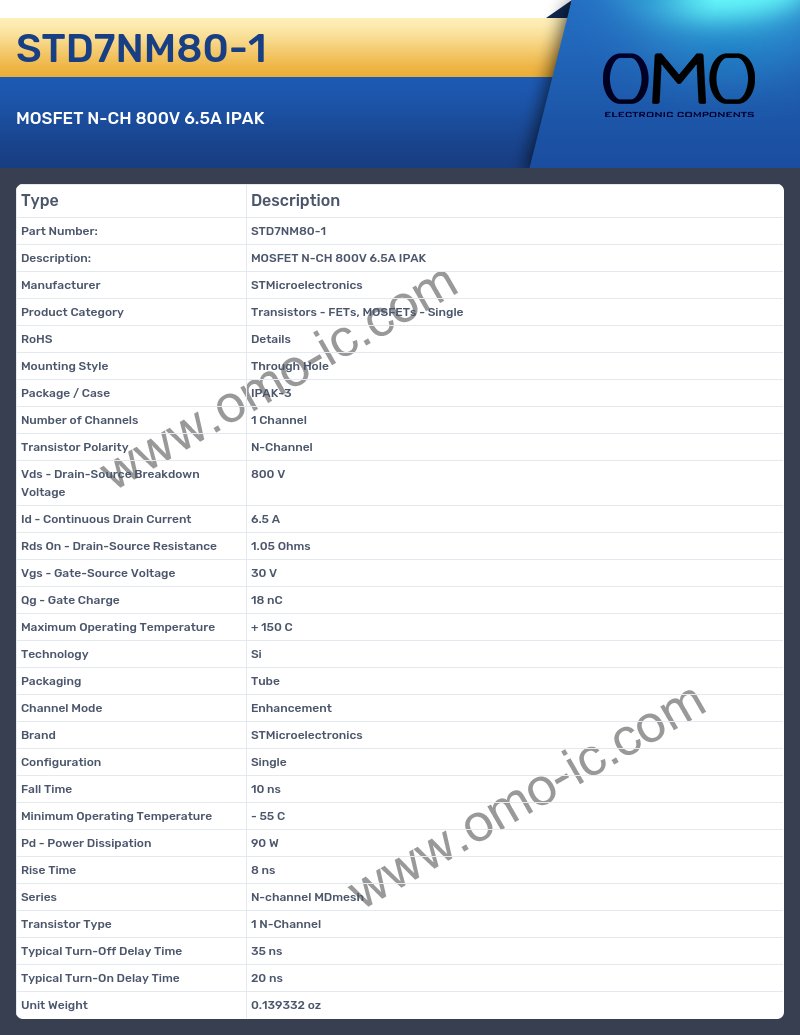

STD7NM80-1 Specifications

• Manufacturer STMicroelectronics
• Product Category Transistors - FETs, MOSFETs - Single
• RoHS Details
• Mounting Style Through Hole
• Package / Case IPAK-3
• Number of Channels 1 Channel
• Transistor Polarity N-Channel
• Vds - Drain-Source Breakdown Voltage 800 V
• Id - Continuous Drain Current 6.5 A
• Rds On - Drain-Source Resistance 1.05 Ohms
• Vgs - Gate-Source Voltage 30 V
• Qg - Gate Charge 18 nC
• Maximum Operating Temperature + 150 C
• Technology Si
• Packaging Tube
• Channel Mode Enhancement
• Brand STMicroelectronics
• Configuration Single
• Fall Time 10 ns
• Minimum Operating Temperature - 55 C
• Pd - Power Dissipation 90 W
• Rise Time 8 ns
• Series N-channel MDmesh
• Transistor Type 1 N-Channel
• Typical Turn-Off Delay Time 35 ns
• Typical Turn-On Delay Time 20 ns
• Unit Weight 0.139332 oz
