STF24N60M2

STF24N60M2 Overview

Product belongs to the MDmesh II Plus series. Tube is the packaging method for this product Weight of 0.011640 oz Through Hole Mounting-Style TO-220-3 Full Pack Si is the technology used. Operational temperature range: -55°C ~ 150°C (TJ) Through Hole mounting type Number of channels: 1 Channel Supplier device package: TO-220FP This product uses an MOSFET N-Channel, Metal Oxide FET-Type transistor. Transistor type: 1 N-Channel 600V This product has an 1060pF @ 100V value of 300pF @ 25V. This product's Standard. 18A (Tc) continuous drain-ID current at 25°C; This product has an 190 mOhm @ 9A, 10V of 12 Ohm @ 150mA, 0V. Power-off control: 30 W Maximum operating temperature of + 150 C Minimum operating temperature: - 55 C This product has a 61 ns of 16 ns. This product has a 9 ns of 16 ns. The ID of continuous drain current is 18 A. This product has a Vds-Drain-Source-Breakdown-Voltageof 600 V. This product has a 4 V Vgs-th gate-source threshold voltage for efficient power management. The 190 mOhms for this product is 12 Ohms. The transistor polarity is N-Channel. 'Typical-Turn-Off-Delay-Time' of 15 ns This product has a 14 ns. Qg-Gate-Charge is 29 nC.

STF24N60M2 Image

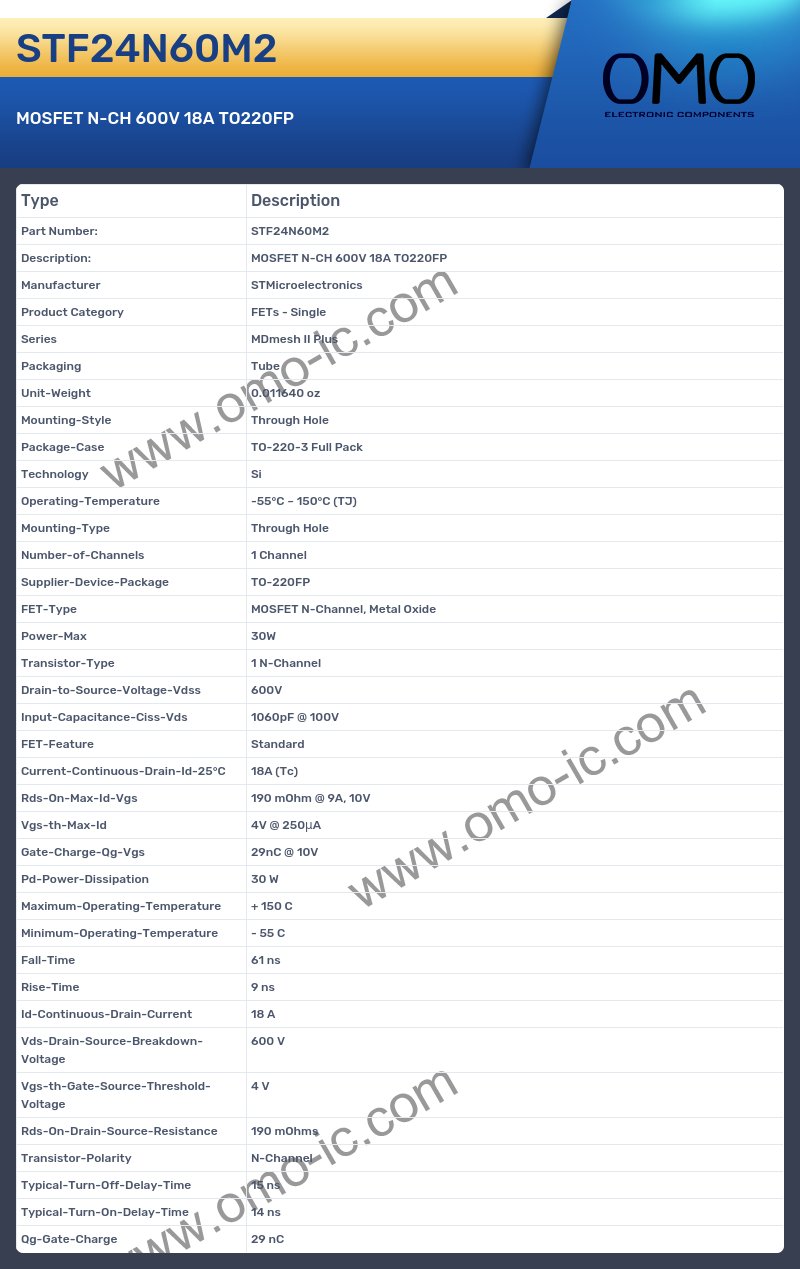

STF24N60M2 Specifications

• Manufacturer STMicroelectronics
• Product Category FETs - Single
• Series MDmesh II Plus
• Packaging Tube
• Unit-Weight 0.011640 oz
• Mounting-Style Through Hole
• Package-Case TO-220-3 Full Pack
• Technology Si
• Operating-Temperature -55°C ~ 150°C (TJ)
• Mounting-Type Through Hole
• Number-of-Channels 1 Channel
• Supplier-Device-Package TO-220FP
• FET-Type MOSFET N-Channel, Metal Oxide
• Power-Max 30W
• Transistor-Type 1 N-Channel
• Drain-to-Source-Voltage-Vdss 600V
• Input-Capacitance-Ciss-Vds 1060pF @ 100V
• FET-Feature Standard
• Current-Continuous-Drain-Id-25°C 18A (Tc)
• Rds-On-Max-Id-Vgs 190 mOhm @ 9A, 10V
• Vgs-th-Max-Id 4V @ 250μA
• Gate-Charge-Qg-Vgs 29nC @ 10V
• Pd-Power-Dissipation 30 W
• Maximum-Operating-Temperature + 150 C
• Minimum-Operating-Temperature - 55 C
• Fall-Time 61 ns
• Rise-Time 9 ns
• Id-Continuous-Drain-Current 18 A
• Vds-Drain-Source-Breakdown-Voltage 600 V
• Vgs-th-Gate-Source-Threshold-Voltage 4 V
• Rds-On-Drain-Source-Resistance 190 mOhms
• Transistor-Polarity N-Channel
• Typical-Turn-Off-Delay-Time 15 ns
• Typical-Turn-On-Delay-Time 14 ns
• Qg-Gate-Charge 29 nC
