STGB20NC60VT4

STGB20NC60VT4 Overview

Product belongs to the PowerMESH series. Digi-ReelR Alternate Packaging is the packaging method for this product TO-263-3, D2Pak (2 Leads + Tab), TO-263AB The Standard for this product is CMOS/TTL. Surface Mount mounting type Supplier device package: D2PAK Maximum current collector Ic is 60A . Maximum collector-emitter breakdown voltage of 600V The Current-Collector-Pulsed-Icm is rated at 100A. The Vce-on-Max-Vge-Ic is rated at 2.5V @ 15V, 20A. 31ns/100ns Td-on-off at 25°C; Operating temperature: 390V, 20A, 3.3 Ohm, 15V

STGB20NC60VT4 Image

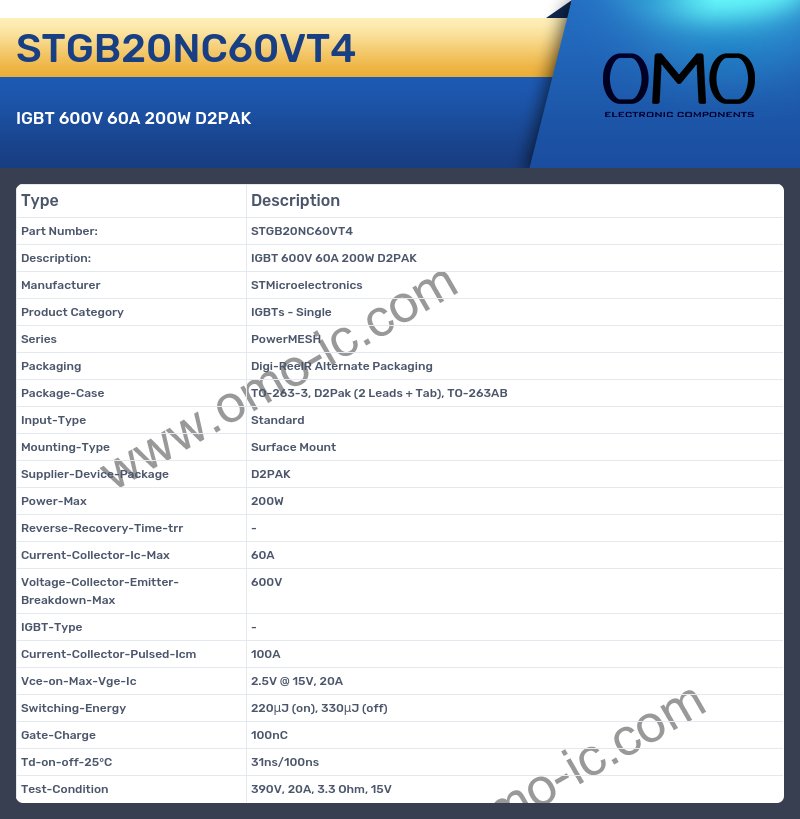

STGB20NC60VT4 Specifications

• Manufacturer STMicroelectronics
• Product Category IGBTs - Single
• Series PowerMESH
• Packaging Digi-ReelR Alternate Packaging
• Package-Case TO-263-3, D2Pak (2 Leads + Tab), TO-263AB
• Input-Type Standard
• Mounting-Type Surface Mount
• Supplier-Device-Package D2PAK
• Power-Max 200W
• Reverse-Recovery-Time-trr -
• Current-Collector-Ic-Max 60A
• Voltage-Collector-Emitter-Breakdown-Max 600V
• IGBT-Type -
• Current-Collector-Pulsed-Icm 100A
• Vce-on-Max-Vge-Ic 2.5V @ 15V, 20A
• Switching-Energy 220μJ (on), 330μJ (off)
• Gate-Charge 100nC
• Td-on-off-25°C 31ns/100ns
• Test-Condition 390V, 20A, 3.3 Ohm, 15V
