STGB20V60F

STGB20V60F Overview

Product belongs to the 600-650V IGBTs series. Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.070548 oz SMD/SMT Mounting-Style TO-263-3, D2Pak (2 Leads + Tab), TO-263AB The Standard for this product is CMOS/TTL. Surface Mount mounting type Supplier device package: D2PAK Configuration Single Maximum current collector Ic is 40A . Maximum collector-emitter breakdown voltage of 600V The Current-Collector-Pulsed-Icm is rated at 80A. The Vce-on-Max-Vge-Ic is rated at 2.2V @ 15V, 20A. 38ns/149ns Td-on-off at 25°C; Operating temperature: 400V, 20A, 15V Power-off control: 167 W Maximum operating temperature of + 175 C Minimum operating temperature: - 55 C Rated VCEO up to 600 V Saturation voltage between collector and emitter is 1.8 V 40 A Continuous Collector Current at 25°C Maximum-Gate-Emitter-Voltage: +/- 20 V

STGB20V60F Image

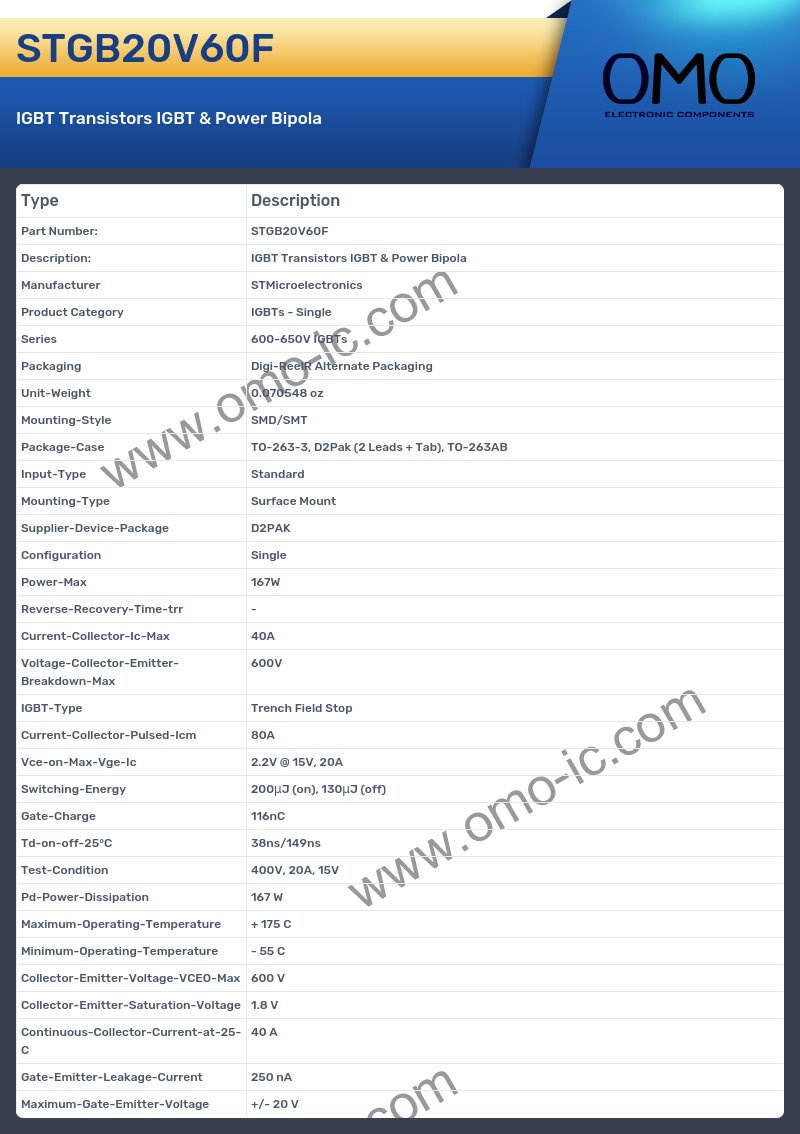

STGB20V60F Specifications

• Manufacturer STMicroelectronics
• Product Category IGBTs - Single
• Series 600-650V IGBTs
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.070548 oz
• Mounting-Style SMD/SMT
• Package-Case TO-263-3, D2Pak (2 Leads + Tab), TO-263AB
• Input-Type Standard
• Mounting-Type Surface Mount
• Supplier-Device-Package D2PAK
• Configuration Single
• Power-Max 167W
• Reverse-Recovery-Time-trr -
• Current-Collector-Ic-Max 40A
• Voltage-Collector-Emitter-Breakdown-Max 600V
• IGBT-Type Trench Field Stop
• Current-Collector-Pulsed-Icm 80A
• Vce-on-Max-Vge-Ic 2.2V @ 15V, 20A
• Switching-Energy 200μJ (on), 130μJ (off)
• Gate-Charge 116nC
• Td-on-off-25°C 38ns/149ns
• Test-Condition 400V, 20A, 15V
• Pd-Power-Dissipation 167 W
• Maximum-Operating-Temperature + 175 C
• Minimum-Operating-Temperature - 55 C
• Collector-Emitter-Voltage-VCEO-Max 600 V
• Collector-Emitter-Saturation-Voltage 1.8 V
• Continuous-Collector-Current-at-25-C 40 A
• Gate-Emitter-Leakage-Current 250 nA
• Maximum-Gate-Emitter-Voltage +/- 20 V
