| Mfr. #: | STGD10HF60KD |
|---|---|
| メーカー: | STMicroelectronics |
| 説明: | IGBT Transistors IGBT & Power Bipola |
| ライフサイクル: | メーカー新製品 |
| データシート: | STGD10HF60KD データシート |
Product belongs to the Automotive, AEC-Q101 series. Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.012346 oz SMD/SMT Mounting-Style TO-252-3, DPak (2 Leads + Tab), SC-63 The Standard for this product is CMOS/TTL. Surface Mount mounting type Supplier device package: DPAK Configuration Single Maximum current collector Ic is 18A . Maximum collector-emitter breakdown voltage of 600V The Current-Collector-Pulsed-Icm is rated at 30A. The Vce-on-Max-Vge-Ic is rated at 2.75V @ 15V, 5A. 9.5ns/87ns Td-on-off at 25°C; Operating temperature: 400V, 5A, 10 Ohm, 15V Power-off control: 62.5 W Maximum operating temperature of + 175 C Minimum operating temperature: - 55 C Rated VCEO up to 600 V Saturation voltage between collector and emitter is 2.75 V 18 A Continuous Collector Current at 25°C Maximum-Gate-Emitter-Voltage: 20 V Maximal 10 A Collector Current of Continuity;
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

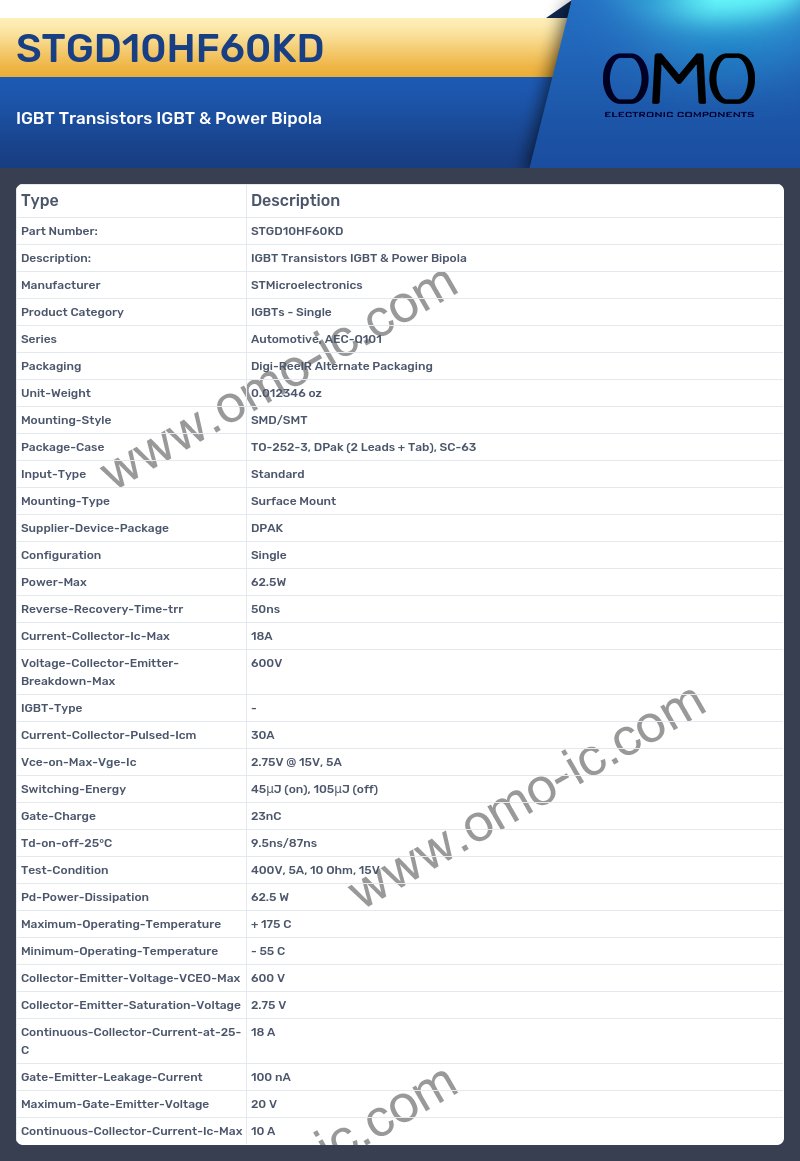

STGD10HF60KD Specifications
A: What is the Series of the product?
Q: The Series of the product is Automotive, AEC-Q101.
A: Is the cutoff frequency of the product Packaging?
Q: Yes, the product's Packaging is indeed Digi-ReelR Alternate Packaging
A: Is the cutoff frequency of the product Unit-Weight?
Q: Yes, the product's Unit-Weight is indeed 0.012346 oz
A: What is the Mounting-Style of the product?
Q: The Mounting-Style of the product is SMD/SMT.
A: Is the cutoff frequency of the product Package-Case?
Q: Yes, the product's Package-Case is indeed TO-252-3, DPak (2 Leads + Tab), SC-63
A: What is the Input-Type of the product?
Q: The Input-Type of the product is Standard.
A: Is the cutoff frequency of the product Mounting-Type?
Q: Yes, the product's Mounting-Type is indeed Surface Mount
A: What is the Supplier-Device-Package of the product?
Q: The Supplier-Device-Package of the product is DPAK.
A: Is the cutoff frequency of the product Configuration?
Q: Yes, the product's Configuration is indeed Single
A: What is the Current-Collector-Ic-Max of the product?
Q: The Current-Collector-Ic-Max of the product is 18A.
A: What is the Voltage-Collector-Emitter-Breakdown-Max of the product?
Q: The Voltage-Collector-Emitter-Breakdown-Max of the product is 600V.
A: What is the Current-Collector-Pulsed-Icm of the product?
Q: The Current-Collector-Pulsed-Icm of the product is 30A.
A: What is the Vce-on-Max-Vge-Ic of the product?
Q: The Vce-on-Max-Vge-Ic of the product is 2.75V @ 15V, 5A.
A: What is the Td-on-off-25°C of the product?
Q: The Td-on-off-25°C of the product is 9.5ns/87ns.
A: At what frequency does the Test-Condition?
Q: The product Test-Condition is 400V, 5A, 10 Ohm, 15V.
A: What is the Pd-Power-Dissipation of the product?
Q: The Pd-Power-Dissipation of the product is 62.5 W.
A: What is the Maximum-Operating-Temperature of the product?
Q: The Maximum-Operating-Temperature of the product is + 175 C.
A: At what frequency does the Minimum-Operating-Temperature?
Q: The product Minimum-Operating-Temperature is - 55 C.
A: At what frequency does the Collector-Emitter-Voltage-VCEO-Max?
Q: The product Collector-Emitter-Voltage-VCEO-Max is 600 V.
A: What is the Collector-Emitter-Saturation-Voltage of the product?
Q: The Collector-Emitter-Saturation-Voltage of the product is 2.75 V.
A: Is the cutoff frequency of the product Continuous-Collector-Current-at-25-C?
Q: Yes, the product's Continuous-Collector-Current-at-25-C is indeed 18 A
A: At what frequency does the Maximum-Gate-Emitter-Voltage?
Q: The product Maximum-Gate-Emitter-Voltage is 20 V.
A: Is the cutoff frequency of the product Continuous-Collector-Current-Ic-Max?
Q: Yes, the product's Continuous-Collector-Current-Ic-Max is indeed 10 A
