STGE200NB60S Overview

Product belongs to the PowerMESH series. Tube is the packaging method for this product Weight of 1 oz Through Hole Mounting-Style ISOTOP Chassis Mount mounting type Supplier device package: ISOTOP Input type: Standard Configuration Single Maximum current collector Ic is 200A . Maximum collector-emitter breakdown voltage of 600V The Vce-on-Max-Vge-Ic is rated at 1.6V @ 15V, 100A. 1.56nF @ 25V of Input-Capacitance-Cies-Vce; No NTC-Thermistor Power-off control: 600 W Maximum operating temperature of + 150 C Minimum operating temperature: - 55 C Rated VCEO up to 600 V Saturation voltage between collector and emitter is 1.2 V 200 A Continuous Collector Current at 25°C Maximum-Gate-Emitter-Voltage: +/- 20 V

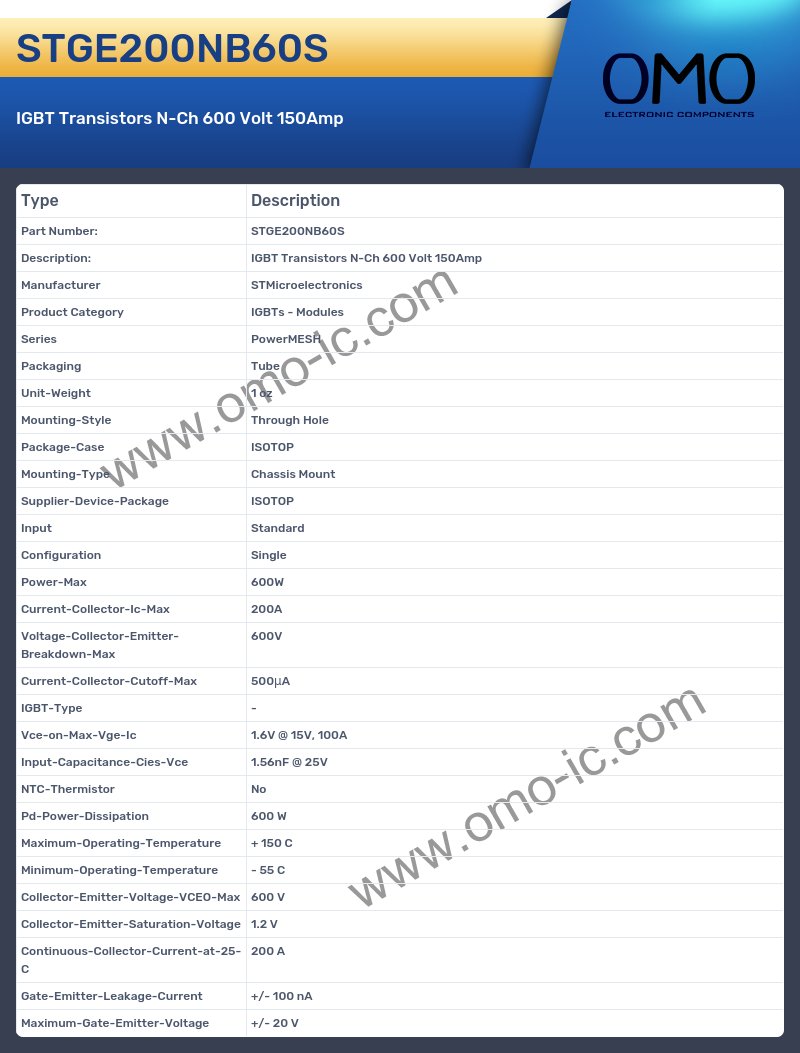

STGE200NB60S Image

STGE200NB60S Specifications

• Manufacturer STMicroelectronics
• Product Category IGBTs - Modules
• Series PowerMESH
• Packaging Tube
• Unit-Weight 1 oz
• Mounting-Style Through Hole
• Package-Case ISOTOP
• Mounting-Type Chassis Mount
• Supplier-Device-Package ISOTOP
• Input Standard
• Configuration Single
• Power-Max 600W
• Current-Collector-Ic-Max 200A
• Voltage-Collector-Emitter-Breakdown-Max 600V
• Current-Collector-Cutoff-Max 500μA
• IGBT-Type -
• Vce-on-Max-Vge-Ic 1.6V @ 15V, 100A
• Input-Capacitance-Cies-Vce 1.56nF @ 25V
• NTC-Thermistor No
• Pd-Power-Dissipation 600 W
• Maximum-Operating-Temperature + 150 C
• Minimum-Operating-Temperature - 55 C
• Collector-Emitter-Voltage-VCEO-Max 600 V
• Collector-Emitter-Saturation-Voltage 1.2 V
• Continuous-Collector-Current-at-25-C 200 A
• Gate-Emitter-Leakage-Current +/- 100 nA
• Maximum-Gate-Emitter-Voltage +/- 20 V
