STGFW30NC60V

STGFW30NC60V Overview

Product belongs to the PowerMESH series. Tube is the packaging method for this product TO-3P-3 Full Pack The Standard for this product is CMOS/TTL. Through Hole mounting type Supplier device package: TO-3PF Maximum current collector Ic is 36A . Maximum collector-emitter breakdown voltage of 600V The Current-Collector-Pulsed-Icm is rated at 100A. The Vce-on-Max-Vge-Ic is rated at 2.5V @ 15V, 20A. 31ns/100ns Td-on-off at 25°C; Operating temperature: 390V, 20A, 3.3 Ohm, 15V

STGFW30NC60V Image

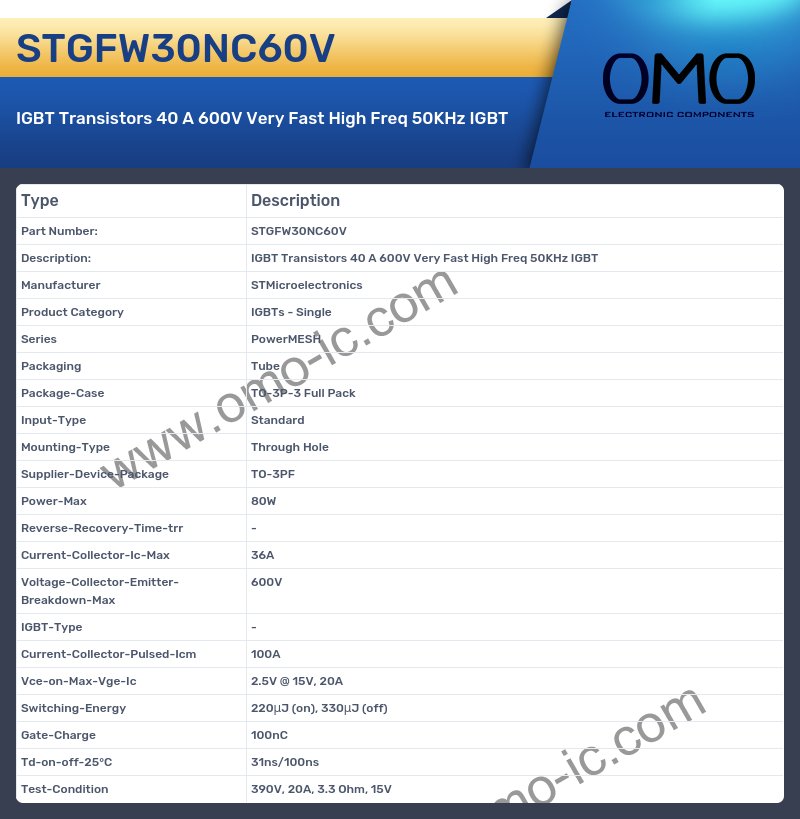

STGFW30NC60V Specifications

• Manufacturer STMicroelectronics
• Product Category IGBTs - Single
• Series PowerMESH
• Packaging Tube
• Package-Case TO-3P-3 Full Pack
• Input-Type Standard
• Mounting-Type Through Hole
• Supplier-Device-Package TO-3PF
• Power-Max 80W
• Reverse-Recovery-Time-trr -
• Current-Collector-Ic-Max 36A
• Voltage-Collector-Emitter-Breakdown-Max 600V
• IGBT-Type -
• Current-Collector-Pulsed-Icm 100A
• Vce-on-Max-Vge-Ic 2.5V @ 15V, 20A
• Switching-Energy 220μJ (on), 330μJ (off)
• Gate-Charge 100nC
• Td-on-off-25°C 31ns/100ns
• Test-Condition 390V, 20A, 3.3 Ohm, 15V
