STGP10NB37LZ

STGP10NB37LZ Overview

Product belongs to the PowerMESH series. Tube is the packaging method for this product TO-220-3 The Standard for this product is CMOS/TTL. Through Hole mounting type Supplier device package: TO-220AB Maximum current collector Ic is 20A . Maximum collector-emitter breakdown voltage of 440V The Current-Collector-Pulsed-Icm is rated at 40A. The Vce-on-Max-Vge-Ic is rated at 1.8V @ 4.5V, 10A. 1.3μs/8μs Td-on-off at 25°C; Operating temperature: 328V, 10A, 1 kOhm, 5V

STGP10NB37LZ Image

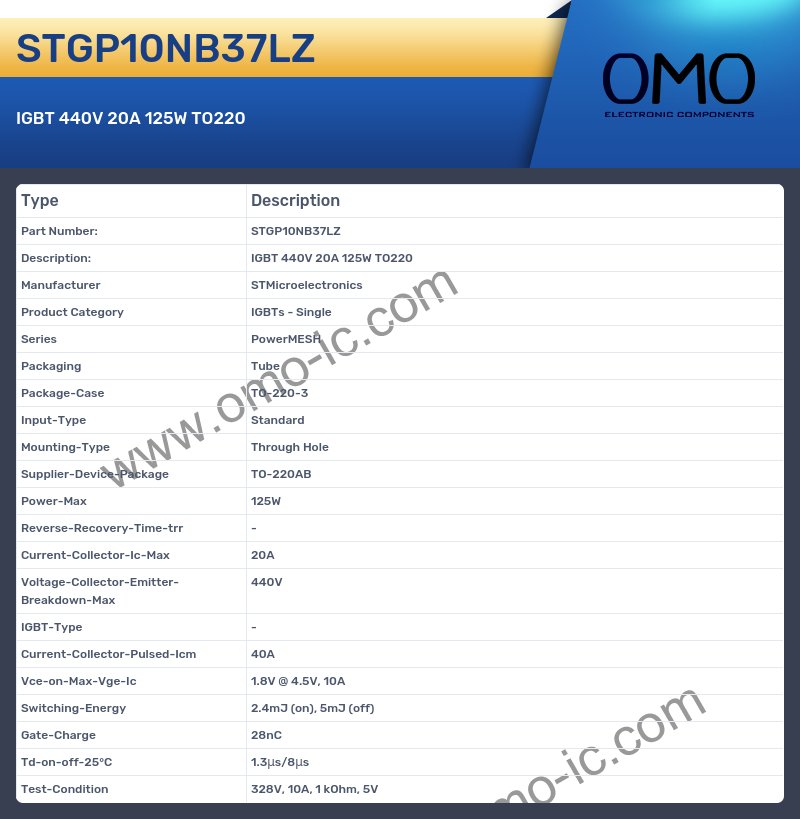

STGP10NB37LZ Specifications

• Manufacturer STMicroelectronics
• Product Category IGBTs - Single
• Series PowerMESH
• Packaging Tube
• Package-Case TO-220-3
• Input-Type Standard
• Mounting-Type Through Hole
• Supplier-Device-Package TO-220AB
• Power-Max 125W
• Reverse-Recovery-Time-trr -
• Current-Collector-Ic-Max 20A
• Voltage-Collector-Emitter-Breakdown-Max 440V
• IGBT-Type -
• Current-Collector-Pulsed-Icm 40A
• Vce-on-Max-Vge-Ic 1.8V @ 4.5V, 10A
• Switching-Energy 2.4mJ (on), 5mJ (off)
• Gate-Charge 28nC
• Td-on-off-25°C 1.3μs/8μs
• Test-Condition 328V, 10A, 1 kOhm, 5V
