STGP10NB60S

STGP10NB60S Overview

Product belongs to the PowerMESH series. Tube is the packaging method for this product Weight of 0.211644 oz Through Hole Mounting-Style TO-220-3 The Standard for this product is CMOS/TTL. Through Hole mounting type Supplier device package: TO-220AB Configuration Single Maximum current collector Ic is 29A . Maximum collector-emitter breakdown voltage of 600V The Current-Collector-Pulsed-Icm is rated at 80A. The Vce-on-Max-Vge-Ic is rated at 1.75V @ 15V, 10A. 700ns/1.2μs Td-on-off at 25°C; Operating temperature: 480V, 10A, 1 kOhm, 15V Power-off control: 80 W Maximum operating temperature of + 150 C Minimum operating temperature: - 55 C Rated VCEO up to 600 V Saturation voltage between collector and emitter is 1.7 V 20 A Continuous Collector Current at 25°C Maximum-Gate-Emitter-Voltage: +/- 20 V Maximal 20 A Collector Current of Continuity;

STGP10NB60S Image

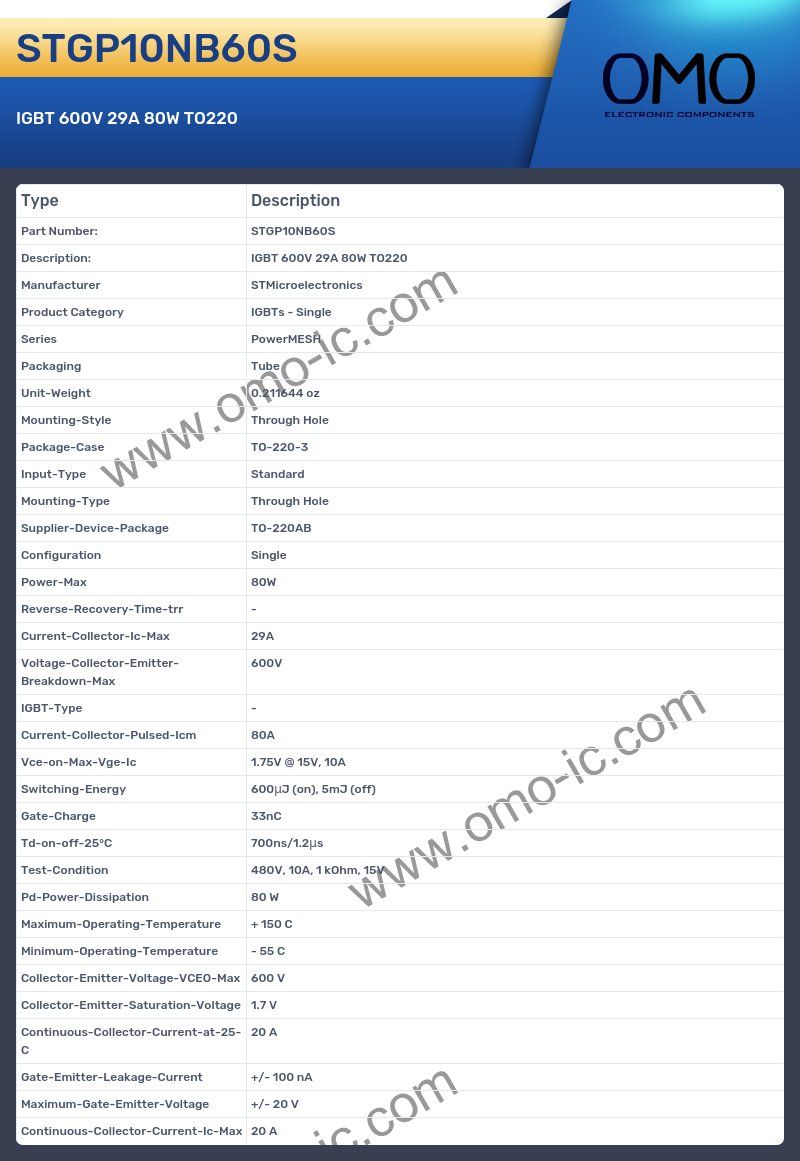

STGP10NB60S Specifications

• Manufacturer STMicroelectronics
• Product Category IGBTs - Single
• Series PowerMESH
• Packaging Tube
• Unit-Weight 0.211644 oz
• Mounting-Style Through Hole
• Package-Case TO-220-3
• Input-Type Standard
• Mounting-Type Through Hole
• Supplier-Device-Package TO-220AB
• Configuration Single
• Power-Max 80W
• Reverse-Recovery-Time-trr -
• Current-Collector-Ic-Max 29A
• Voltage-Collector-Emitter-Breakdown-Max 600V
• IGBT-Type -
• Current-Collector-Pulsed-Icm 80A
• Vce-on-Max-Vge-Ic 1.75V @ 15V, 10A
• Switching-Energy 600μJ (on), 5mJ (off)
• Gate-Charge 33nC
• Td-on-off-25°C 700ns/1.2μs
• Test-Condition 480V, 10A, 1 kOhm, 15V
• Pd-Power-Dissipation 80 W
• Maximum-Operating-Temperature + 150 C
• Minimum-Operating-Temperature - 55 C
• Collector-Emitter-Voltage-VCEO-Max 600 V
• Collector-Emitter-Saturation-Voltage 1.7 V
• Continuous-Collector-Current-at-25-C 20 A
• Gate-Emitter-Leakage-Current +/- 100 nA
• Maximum-Gate-Emitter-Voltage +/- 20 V
• Continuous-Collector-Current-Ic-Max 20 A
