STGP19NC60HD

STGP19NC60HD Overview

Product belongs to the PowerMESH series. Tube is the packaging method for this product Weight of 0.211644 oz Through Hole Mounting-Style TO-220-3 The Standard for this product is CMOS/TTL. Through Hole mounting type Supplier device package: TO-220 Configuration Single Maximum current collector Ic is 40A . Maximum collector-emitter breakdown voltage of 600V The Current-Collector-Pulsed-Icm is rated at 60A. The Vce-on-Max-Vge-Ic is rated at 2.5V @ 15V, 12A. 25ns/97ns Td-on-off at 25°C; Operating temperature: 390V, 12A, 10 Ohm, 15V Maximum operating temperature of + 150 C Minimum operating temperature: - 55 C Rated VCEO up to 600 V Maximum-Gate-Emitter-Voltage: +/- 20 V Maximal 40 A Collector Current of Continuity;

STGP19NC60HD Image

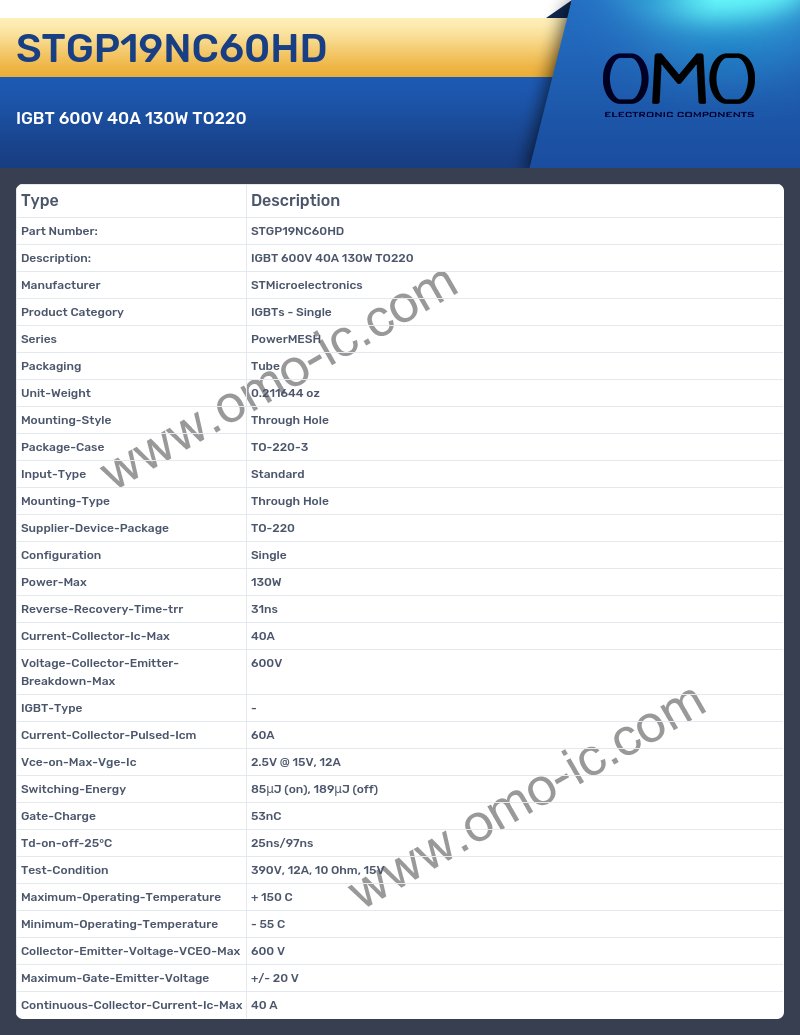

STGP19NC60HD Specifications

• Manufacturer STMicroelectronics
• Product Category IGBTs - Single
• Series PowerMESH
• Packaging Tube
• Unit-Weight 0.211644 oz
• Mounting-Style Through Hole
• Package-Case TO-220-3
• Input-Type Standard
• Mounting-Type Through Hole
• Supplier-Device-Package TO-220
• Configuration Single
• Power-Max 130W
• Reverse-Recovery-Time-trr 31ns
• Current-Collector-Ic-Max 40A
• Voltage-Collector-Emitter-Breakdown-Max 600V
• IGBT-Type -
• Current-Collector-Pulsed-Icm 60A
• Vce-on-Max-Vge-Ic 2.5V @ 15V, 12A
• Switching-Energy 85μJ (on), 189μJ (off)
• Gate-Charge 53nC
• Td-on-off-25°C 25ns/97ns
• Test-Condition 390V, 12A, 10 Ohm, 15V
• Maximum-Operating-Temperature + 150 C
• Minimum-Operating-Temperature - 55 C
• Collector-Emitter-Voltage-VCEO-Max 600 V
• Maximum-Gate-Emitter-Voltage +/- 20 V
• Continuous-Collector-Current-Ic-Max 40 A
