STGW30N90D

STGW30N90D Overview

Product belongs to the PowerMESH series. Tube is the packaging method for this product TO-247-3 The Standard for this product is CMOS/TTL. Through Hole mounting type Supplier device package: TO-247-3 Maximum current collector Ic is 60A . Maximum collector-emitter breakdown voltage of 900V The Current-Collector-Pulsed-Icm is rated at 135A. The Vce-on-Max-Vge-Ic is rated at 2.75V @ 15V, 20A. 29ns/275ns Td-on-off at 25°C; Operating temperature: 900V, 20A, 10 Ohm, 15V

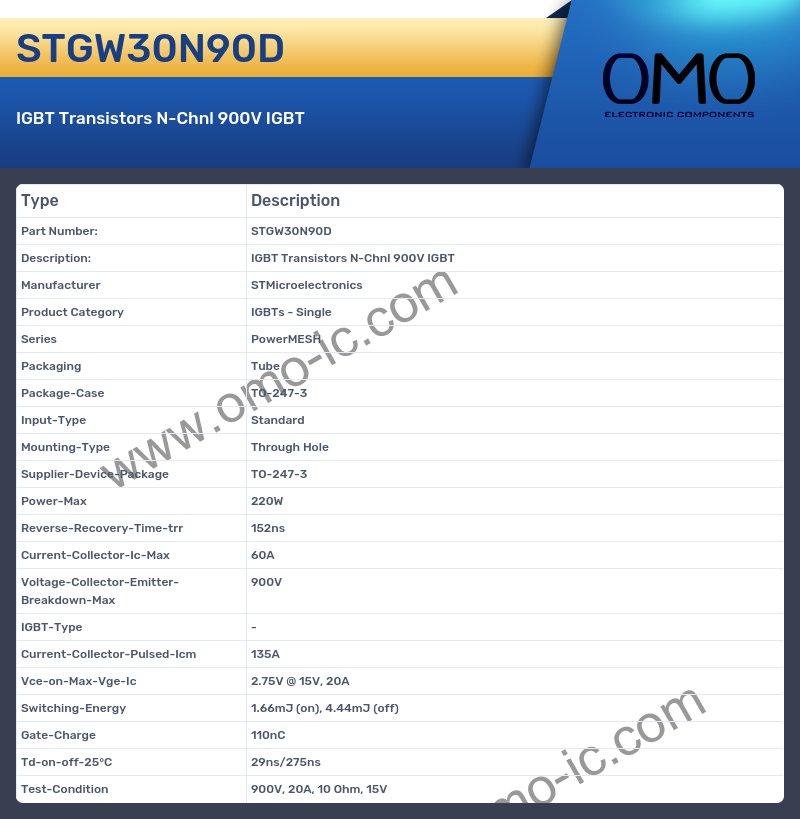

STGW30N90D Image

STGW30N90D Specifications

• Manufacturer STMicroelectronics
• Product Category IGBTs - Single
• Series PowerMESH
• Packaging Tube
• Package-Case TO-247-3
• Input-Type Standard
• Mounting-Type Through Hole
• Supplier-Device-Package TO-247-3
• Power-Max 220W
• Reverse-Recovery-Time-trr 152ns
• Current-Collector-Ic-Max 60A
• Voltage-Collector-Emitter-Breakdown-Max 900V
• IGBT-Type -
• Current-Collector-Pulsed-Icm 135A
• Vce-on-Max-Vge-Ic 2.75V @ 15V, 20A
• Switching-Energy 1.66mJ (on), 4.44mJ (off)
• Gate-Charge 110nC
• Td-on-off-25°C 29ns/275ns
• Test-Condition 900V, 20A, 10 Ohm, 15V
