| Mfr. #: | STGW30NC60VD |
|---|---|
| メーカー: | STMicroelectronics |
| 説明: | IGBT 600V 80A 250W TO247 |
| ライフサイクル: | メーカー新製品 |
| データシート: | STGW30NC60VD データシート |
Product belongs to the PowerMESH series. Tube is the packaging method for this product Weight of 1.340411 oz Through Hole Mounting-Style TO-247-3 The Standard for this product is CMOS/TTL. Through Hole mounting type Supplier device package: TO-247-3 Configuration Single Maximum current collector Ic is 80A . Maximum collector-emitter breakdown voltage of 600V The Current-Collector-Pulsed-Icm is rated at 150A. The Vce-on-Max-Vge-Ic is rated at 2.5V @ 15V, 20A. 31ns/100ns Td-on-off at 25°C; Operating temperature: 390V, 20A, 3.3 Ohm, 15V Power-off control: 250 W Maximum operating temperature of + 150 C Minimum operating temperature: - 55 C Rated VCEO up to 600 V Saturation voltage between collector and emitter is 2.5 V Maximum-Gate-Emitter-Voltage: +/- 20 V Maximal 80 A Collector Current of Continuity;
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

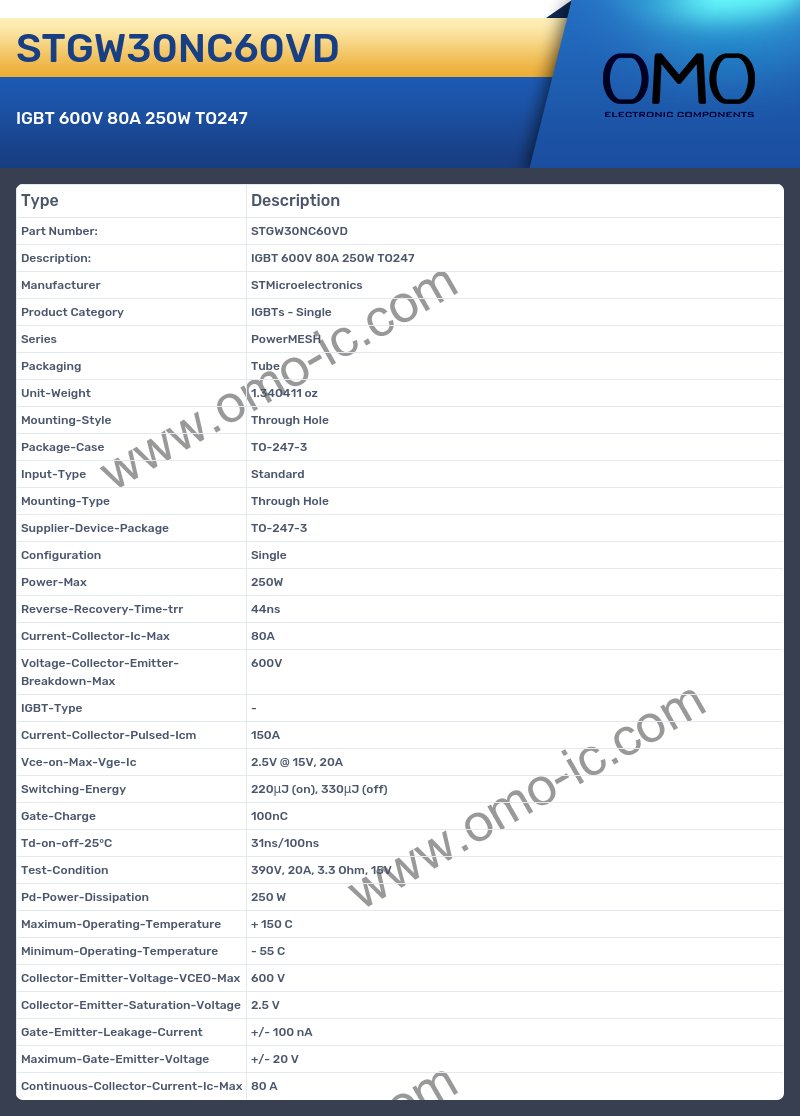

STGW30NC60VD Specifications
A: At what frequency does the Series?
Q: The product Series is PowerMESH.
A: Is the cutoff frequency of the product Packaging?
Q: Yes, the product's Packaging is indeed Tube
A: Is the cutoff frequency of the product Unit-Weight?
Q: Yes, the product's Unit-Weight is indeed 1.340411 oz
A: What is the Mounting-Style of the product?
Q: The Mounting-Style of the product is Through Hole.
A: What is the Package-Case of the product?
Q: The Package-Case of the product is TO-247-3.
A: Is the cutoff frequency of the product Input-Type?
Q: Yes, the product's Input-Type is indeed Standard
A: Is the cutoff frequency of the product Mounting-Type?
Q: Yes, the product's Mounting-Type is indeed Through Hole
A: Is the cutoff frequency of the product Supplier-Device-Package?
Q: Yes, the product's Supplier-Device-Package is indeed TO-247-3
A: At what frequency does the Configuration?
Q: The product Configuration is Single.
A: At what frequency does the Current-Collector-Ic-Max?
Q: The product Current-Collector-Ic-Max is 80A.
A: At what frequency does the Voltage-Collector-Emitter-Breakdown-Max?
Q: The product Voltage-Collector-Emitter-Breakdown-Max is 600V.
A: Is the cutoff frequency of the product Current-Collector-Pulsed-Icm?
Q: Yes, the product's Current-Collector-Pulsed-Icm is indeed 150A
A: Is the cutoff frequency of the product Vce-on-Max-Vge-Ic?
Q: Yes, the product's Vce-on-Max-Vge-Ic is indeed 2.5V @ 15V, 20A
A: At what frequency does the Td-on-off-25°C?
Q: The product Td-on-off-25°C is 31ns/100ns.
A: What is the Test-Condition of the product?
Q: The Test-Condition of the product is 390V, 20A, 3.3 Ohm, 15V.
A: Is the cutoff frequency of the product Pd-Power-Dissipation?
Q: Yes, the product's Pd-Power-Dissipation is indeed 250 W
A: Is the cutoff frequency of the product Maximum-Operating-Temperature?
Q: Yes, the product's Maximum-Operating-Temperature is indeed + 150 C
A: At what frequency does the Minimum-Operating-Temperature?
Q: The product Minimum-Operating-Temperature is - 55 C.
A: Is the cutoff frequency of the product Collector-Emitter-Voltage-VCEO-Max?
Q: Yes, the product's Collector-Emitter-Voltage-VCEO-Max is indeed 600 V
A: At what frequency does the Collector-Emitter-Saturation-Voltage?
Q: The product Collector-Emitter-Saturation-Voltage is 2.5 V.
A: At what frequency does the Maximum-Gate-Emitter-Voltage?
Q: The product Maximum-Gate-Emitter-Voltage is +/- 20 V.
A: At what frequency does the Continuous-Collector-Current-Ic-Max?
Q: The product Continuous-Collector-Current-Ic-Max is 80 A.
