| Mfr. #: | STGW40V60DLF |
|---|---|
| メーカー: | STMicroelectronics |
| 説明: | IGBT Transistors 600V 40A High Speed Trench Gate IGBT |
| ライフサイクル: | メーカー新製品 |
| データシート: | STGW40V60DLF データシート |
Product belongs to the 600-650V IGBTs series. Tube is the packaging method for this product Weight of 0.229281 oz Through Hole Mounting-Style TO-247-3 The Standard for this product is CMOS/TTL. Through Hole mounting type Supplier device package: TO-247 Configuration Single Maximum current collector Ic is 80A . Maximum collector-emitter breakdown voltage of 600V The Current-Collector-Pulsed-Icm is rated at 160A. The Vce-on-Max-Vge-Ic is rated at 2.3V @ 15V, 40A. -/208ns Td-on-off at 25°C; Operating temperature: 400V, 40A, 10 Ohm, 15V Power-off control: 283 W Maximum operating temperature of + 175 C Minimum operating temperature: - 55 C Rated VCEO up to 600 V Saturation voltage between collector and emitter is 2.35 V 80 A Continuous Collector Current at 25°C Maximum-Gate-Emitter-Voltage: 20 V
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

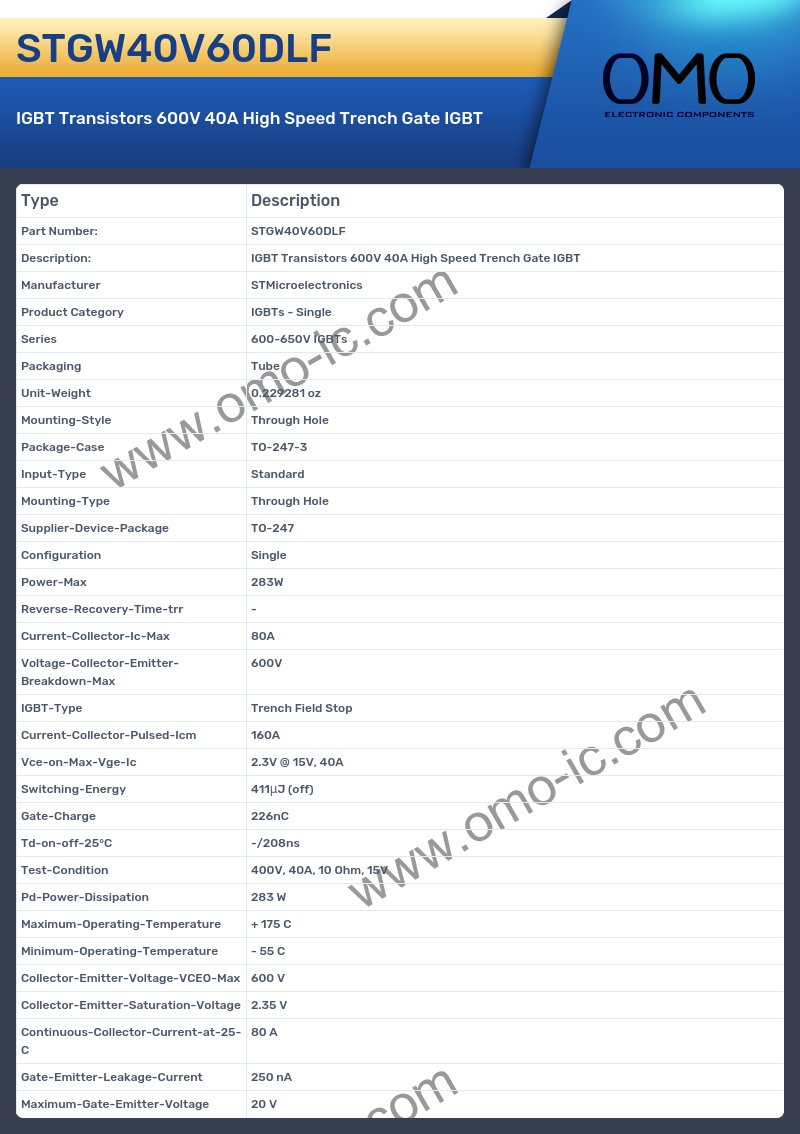

STGW40V60DLF Specifications
A: At what frequency does the Series?
Q: The product Series is 600-650V IGBTs.
A: What is the Packaging of the product?
Q: The Packaging of the product is Tube.
A: Is the cutoff frequency of the product Unit-Weight?
Q: Yes, the product's Unit-Weight is indeed 0.229281 oz
A: What is the Mounting-Style of the product?
Q: The Mounting-Style of the product is Through Hole.
A: What is the Package-Case of the product?
Q: The Package-Case of the product is TO-247-3.
A: What is the Input-Type of the product?
Q: The Input-Type of the product is Standard.
A: Is the cutoff frequency of the product Mounting-Type?
Q: Yes, the product's Mounting-Type is indeed Through Hole
A: Is the cutoff frequency of the product Supplier-Device-Package?
Q: Yes, the product's Supplier-Device-Package is indeed TO-247
A: Is the cutoff frequency of the product Configuration?
Q: Yes, the product's Configuration is indeed Single
A: What is the Current-Collector-Ic-Max of the product?
Q: The Current-Collector-Ic-Max of the product is 80A.
A: At what frequency does the Voltage-Collector-Emitter-Breakdown-Max?
Q: The product Voltage-Collector-Emitter-Breakdown-Max is 600V.
A: Is the cutoff frequency of the product Current-Collector-Pulsed-Icm?
Q: Yes, the product's Current-Collector-Pulsed-Icm is indeed 160A
A: What is the Vce-on-Max-Vge-Ic of the product?
Q: The Vce-on-Max-Vge-Ic of the product is 2.3V @ 15V, 40A.
A: Is the cutoff frequency of the product Td-on-off-25°C?
Q: Yes, the product's Td-on-off-25°C is indeed -/208ns
A: What is the Test-Condition of the product?
Q: The Test-Condition of the product is 400V, 40A, 10 Ohm, 15V.
A: What is the Pd-Power-Dissipation of the product?
Q: The Pd-Power-Dissipation of the product is 283 W.
A: Is the cutoff frequency of the product Maximum-Operating-Temperature?
Q: Yes, the product's Maximum-Operating-Temperature is indeed + 175 C
A: What is the Minimum-Operating-Temperature of the product?
Q: The Minimum-Operating-Temperature of the product is - 55 C.
A: Is the cutoff frequency of the product Collector-Emitter-Voltage-VCEO-Max?
Q: Yes, the product's Collector-Emitter-Voltage-VCEO-Max is indeed 600 V
A: What is the Collector-Emitter-Saturation-Voltage of the product?
Q: The Collector-Emitter-Saturation-Voltage of the product is 2.35 V.
A: What is the Continuous-Collector-Current-at-25-C of the product?
Q: The Continuous-Collector-Current-at-25-C of the product is 80 A.
A: Is the cutoff frequency of the product Maximum-Gate-Emitter-Voltage?
Q: Yes, the product's Maximum-Gate-Emitter-Voltage is indeed 20 V
