| Mfr. #: | STGW40V60F |
|---|---|
| メーカー: | STMicroelectronics |
| 説明: | IGBT Transistors 600V 40A Trench Gate 1.8V Vce IGBT |
| ライフサイクル: | メーカー新製品 |
| データシート: | STGW40V60F データシート |
Product belongs to the 600-650V IGBTs series. Tube is the packaging method for this product Weight of 1.340411 oz Through Hole Mounting-Style TO-247-3 The Standard for this product is CMOS/TTL. Through Hole mounting type Supplier device package: TO-247 Configuration Single Maximum current collector Ic is 80A . Maximum collector-emitter breakdown voltage of 600V The Current-Collector-Pulsed-Icm is rated at 160A. The Vce-on-Max-Vge-Ic is rated at 2.3V @ 15V, 40A. 52ns/208ns Td-on-off at 25°C; Operating temperature: 400V, 40A, 10 Ohm, 15V Power-off control: 283 W Maximum operating temperature of + 175 C Minimum operating temperature: - 55 C Rated VCEO up to 600 V Saturation voltage between collector and emitter is 2.35 V 80 A Continuous Collector Current at 25°C Maximum-Gate-Emitter-Voltage: +/- 20 V Maximal 40 A Collector Current of Continuity;
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

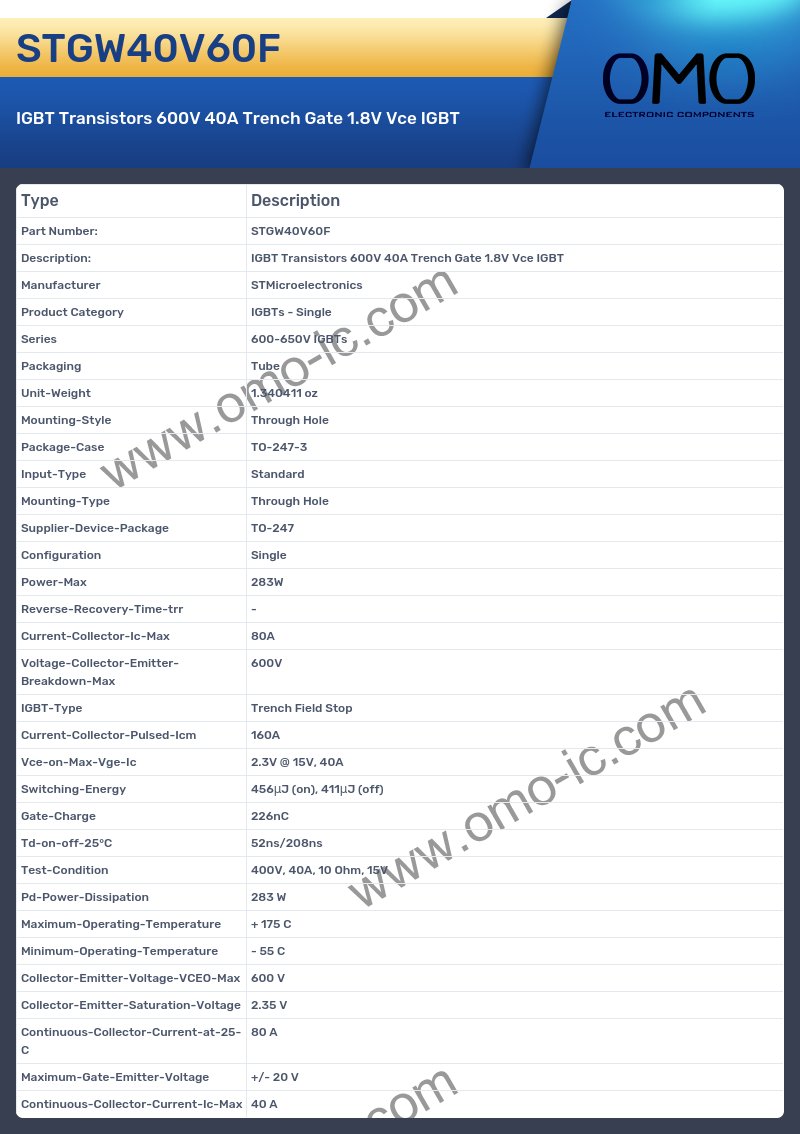

STGW40V60F Specifications
A: Is the cutoff frequency of the product Series?
Q: Yes, the product's Series is indeed 600-650V IGBTs
A: Is the cutoff frequency of the product Packaging?
Q: Yes, the product's Packaging is indeed Tube
A: What is the Unit-Weight of the product?
Q: The Unit-Weight of the product is 1.340411 oz.
A: Is the cutoff frequency of the product Mounting-Style?
Q: Yes, the product's Mounting-Style is indeed Through Hole
A: At what frequency does the Package-Case?
Q: The product Package-Case is TO-247-3.
A: Is the cutoff frequency of the product Input-Type?
Q: Yes, the product's Input-Type is indeed Standard
A: At what frequency does the Mounting-Type?
Q: The product Mounting-Type is Through Hole.
A: What is the Supplier-Device-Package of the product?
Q: The Supplier-Device-Package of the product is TO-247.
A: What is the Configuration of the product?
Q: The Configuration of the product is Single.
A: Is the cutoff frequency of the product Current-Collector-Ic-Max?
Q: Yes, the product's Current-Collector-Ic-Max is indeed 80A
A: Is the cutoff frequency of the product Voltage-Collector-Emitter-Breakdown-Max?
Q: Yes, the product's Voltage-Collector-Emitter-Breakdown-Max is indeed 600V
A: What is the Current-Collector-Pulsed-Icm of the product?
Q: The Current-Collector-Pulsed-Icm of the product is 160A.
A: Is the cutoff frequency of the product Vce-on-Max-Vge-Ic?
Q: Yes, the product's Vce-on-Max-Vge-Ic is indeed 2.3V @ 15V, 40A
A: At what frequency does the Td-on-off-25°C?
Q: The product Td-on-off-25°C is 52ns/208ns.
A: Is the cutoff frequency of the product Test-Condition?
Q: Yes, the product's Test-Condition is indeed 400V, 40A, 10 Ohm, 15V
A: What is the Pd-Power-Dissipation of the product?
Q: The Pd-Power-Dissipation of the product is 283 W.
A: At what frequency does the Maximum-Operating-Temperature?
Q: The product Maximum-Operating-Temperature is + 175 C.
A: Is the cutoff frequency of the product Minimum-Operating-Temperature?
Q: Yes, the product's Minimum-Operating-Temperature is indeed - 55 C
A: What is the Collector-Emitter-Voltage-VCEO-Max of the product?
Q: The Collector-Emitter-Voltage-VCEO-Max of the product is 600 V.
A: What is the Collector-Emitter-Saturation-Voltage of the product?
Q: The Collector-Emitter-Saturation-Voltage of the product is 2.35 V.
A: Is the cutoff frequency of the product Continuous-Collector-Current-at-25-C?
Q: Yes, the product's Continuous-Collector-Current-at-25-C is indeed 80 A
A: At what frequency does the Maximum-Gate-Emitter-Voltage?
Q: The product Maximum-Gate-Emitter-Voltage is +/- 20 V.
A: Is the cutoff frequency of the product Continuous-Collector-Current-Ic-Max?
Q: Yes, the product's Continuous-Collector-Current-Ic-Max is indeed 40 A
