STGW50H60DF

STGW50H60DF Overview

Product belongs to the 600-650V IGBTs series. Tube is the packaging method for this product Weight of 0.229281 oz Through Hole Mounting-Style TO-247-3 The Standard for this product is CMOS/TTL. Through Hole mounting type Supplier device package: TO-247 Maximum current collector Ic is 100A . Maximum collector-emitter breakdown voltage of 600V The Current-Collector-Pulsed-Icm is rated at 200A. The Vce-on-Max-Vge-Ic is rated at 1.8V @ 15V, 50A. 62ns/178ns Td-on-off at 25°C; Operating temperature: 400V, 50A, 10 Ohm, 15V Power-off control: 360 W Maximum operating temperature of + 150 C Minimum operating temperature: - 55 C Saturation voltage between collector and emitter is 1.8 V 100 A Continuous Collector Current at 25°C Maximum-Gate-Emitter-Voltage: +/- 20 V

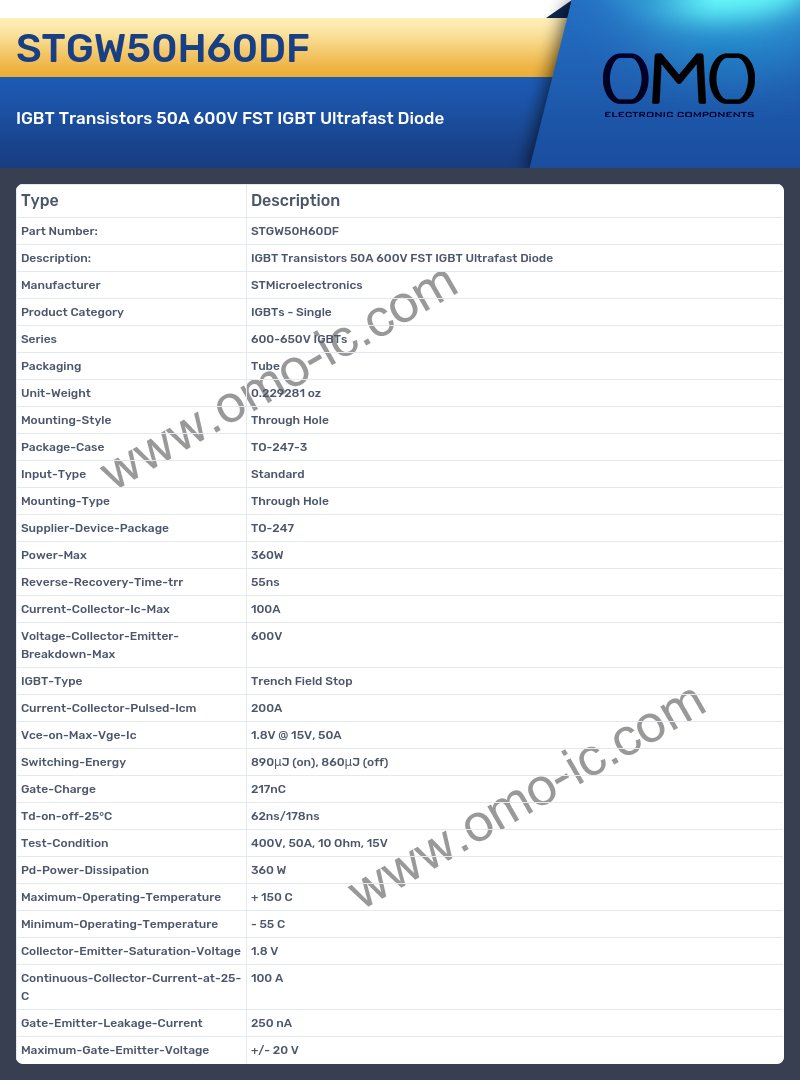

STGW50H60DF Image

STGW50H60DF Specifications

• Manufacturer STMicroelectronics
• Product Category IGBTs - Single
• Series 600-650V IGBTs
• Packaging Tube
• Unit-Weight 0.229281 oz
• Mounting-Style Through Hole
• Package-Case TO-247-3
• Input-Type Standard
• Mounting-Type Through Hole
• Supplier-Device-Package TO-247
• Power-Max 360W
• Reverse-Recovery-Time-trr 55ns
• Current-Collector-Ic-Max 100A
• Voltage-Collector-Emitter-Breakdown-Max 600V
• IGBT-Type Trench Field Stop
• Current-Collector-Pulsed-Icm 200A
• Vce-on-Max-Vge-Ic 1.8V @ 15V, 50A
• Switching-Energy 890μJ (on), 860μJ (off)
• Gate-Charge 217nC
• Td-on-off-25°C 62ns/178ns
• Test-Condition 400V, 50A, 10 Ohm, 15V
• Pd-Power-Dissipation 360 W
• Maximum-Operating-Temperature + 150 C
• Minimum-Operating-Temperature - 55 C
• Collector-Emitter-Saturation-Voltage 1.8 V
• Continuous-Collector-Current-at-25-C 100 A
• Gate-Emitter-Leakage-Current 250 nA
• Maximum-Gate-Emitter-Voltage +/- 20 V
