STGW50HF60SD

STGW50HF60SD Overview

Product belongs to the 600-650V IGBTs series. Tube is the packaging method for this product Weight of 6500 g Through Hole Mounting-Style TO-247 The Standard for this product is CMOS/TTL. Through Hole mounting type Supplier device package: TO-247-3 Configuration Single Maximum current collector Ic is 110A . Maximum collector-emitter breakdown voltage of 600V The Current-Collector-Pulsed-Icm is rated at 130A. The Vce-on-Max-Vge-Ic is rated at 1.45V @ 15V, 30A. 50ns/220ns Td-on-off at 25°C; Operating temperature: 400V, 30A, 10 Ohm, 15V Power-off control: 284 W Maximum operating temperature of + 150 C Minimum operating temperature: - 55 C Rated VCEO up to 600 V Saturation voltage between collector and emitter is 1.15 V 110 A Continuous Collector Current at 25°C Maximum-Gate-Emitter-Voltage: +/- 20 V

STGW50HF60SD Image

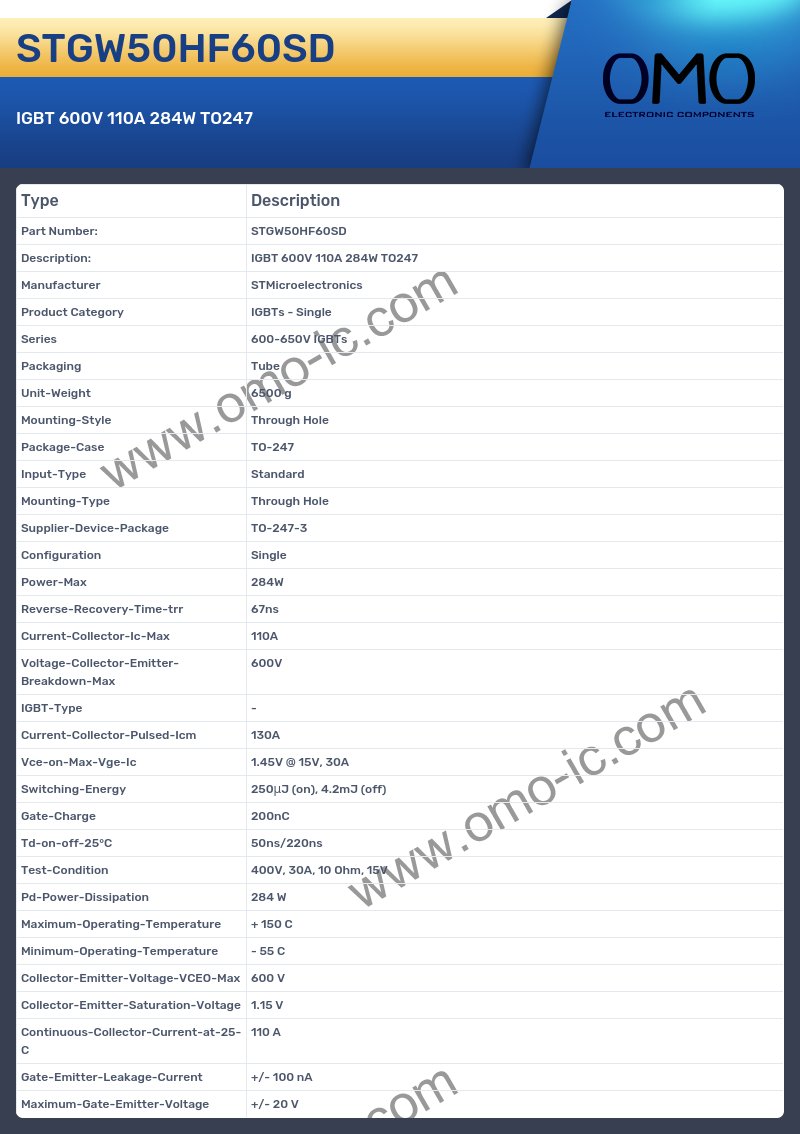

STGW50HF60SD Specifications

• Manufacturer STMicroelectronics
• Product Category IGBTs - Single
• Series 600-650V IGBTs
• Packaging Tube
• Unit-Weight 6500 g
• Mounting-Style Through Hole
• Package-Case TO-247
• Input-Type Standard
• Mounting-Type Through Hole
• Supplier-Device-Package TO-247-3
• Configuration Single
• Power-Max 284W
• Reverse-Recovery-Time-trr 67ns
• Current-Collector-Ic-Max 110A
• Voltage-Collector-Emitter-Breakdown-Max 600V
• IGBT-Type -
• Current-Collector-Pulsed-Icm 130A
• Vce-on-Max-Vge-Ic 1.45V @ 15V, 30A
• Switching-Energy 250μJ (on), 4.2mJ (off)
• Gate-Charge 200nC
• Td-on-off-25°C 50ns/220ns
• Test-Condition 400V, 30A, 10 Ohm, 15V
• Pd-Power-Dissipation 284 W
• Maximum-Operating-Temperature + 150 C
• Minimum-Operating-Temperature - 55 C
• Collector-Emitter-Voltage-VCEO-Max 600 V
• Collector-Emitter-Saturation-Voltage 1.15 V
• Continuous-Collector-Current-at-25-C 110 A
• Gate-Emitter-Leakage-Current +/- 100 nA
• Maximum-Gate-Emitter-Voltage +/- 20 V
