STGY50NC60WD

STGY50NC60WD Overview

Product belongs to the PowerMESH series. Tube is the packaging method for this product Through Hole Mounting-Style TO-247-3 The Standard for this product is CMOS/TTL. Through Hole mounting type Supplier device package: MAX247 Configuration Single Maximum current collector Ic is 110A . Maximum collector-emitter breakdown voltage of 600V The Current-Collector-Pulsed-Icm is rated at 180A. The Vce-on-Max-Vge-Ic is rated at 2.6V @ 15V, 40A. 52ns/240ns Td-on-off at 25°C; Operating temperature: 390V, 40A, 10 Ohm, 15V Maximum operating temperature of + 150 C Minimum operating temperature: - 55 C Rated VCEO up to 600 V Maximum-Gate-Emitter-Voltage: +/- 20 V Maximal 110 A Collector Current of Continuity;

STGY50NC60WD Image

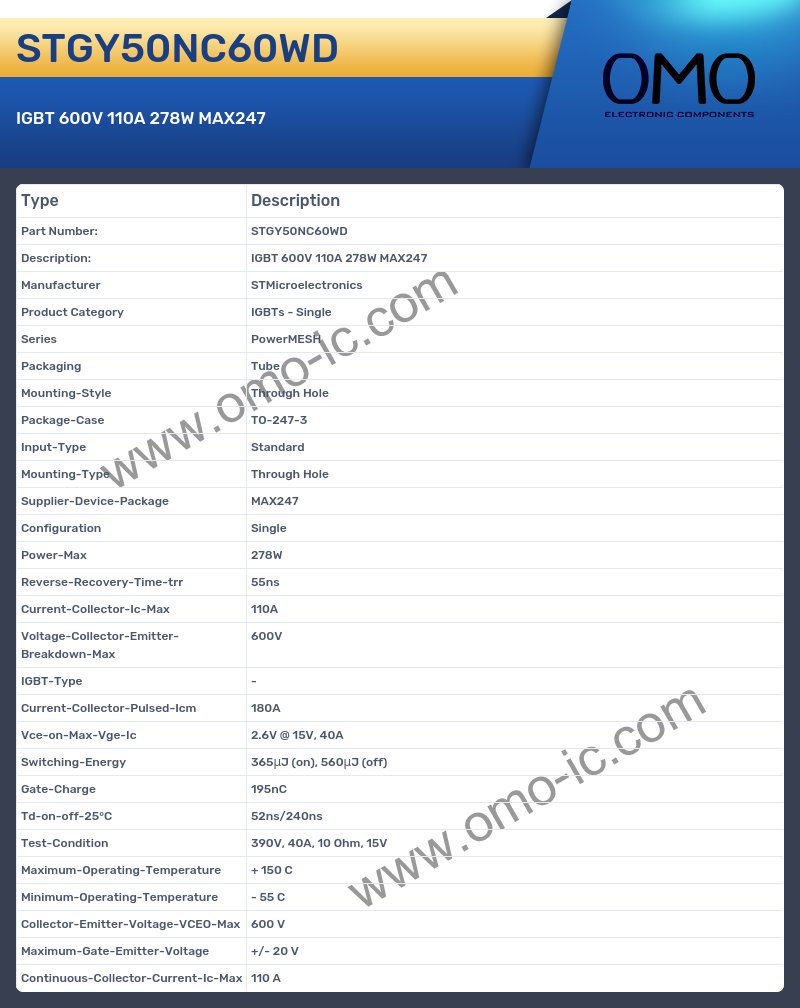

STGY50NC60WD Specifications

• Manufacturer STMicroelectronics
• Product Category IGBTs - Single
• Series PowerMESH
• Packaging Tube
• Mounting-Style Through Hole
• Package-Case TO-247-3
• Input-Type Standard
• Mounting-Type Through Hole
• Supplier-Device-Package MAX247
• Configuration Single
• Power-Max 278W
• Reverse-Recovery-Time-trr 55ns
• Current-Collector-Ic-Max 110A
• Voltage-Collector-Emitter-Breakdown-Max 600V
• IGBT-Type -
• Current-Collector-Pulsed-Icm 180A
• Vce-on-Max-Vge-Ic 2.6V @ 15V, 40A
• Switching-Energy 365μJ (on), 560μJ (off)
• Gate-Charge 195nC
• Td-on-off-25°C 52ns/240ns
• Test-Condition 390V, 40A, 10 Ohm, 15V
• Maximum-Operating-Temperature + 150 C
• Minimum-Operating-Temperature - 55 C
• Collector-Emitter-Voltage-VCEO-Max 600 V
• Maximum-Gate-Emitter-Voltage +/- 20 V
• Continuous-Collector-Current-Ic-Max 110 A
