STH310N10F7-2 Overview

Product belongs to the DeepGATE, STripFET VII series. Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.139332 oz SMD/SMT Mounting-Style Trade name: STripFET. TO-263-3, D2Pak (2 Leads + Tab) Variant Si is the technology used. Operational temperature range: -55°C ~ 175°C (TJ) Surface Mount mounting type Number of channels: 1 Channel Supplier device package: H2PAK Configuration Single This product uses an MOSFET N-Channel, Metal Oxide FET-Type transistor. Transistor type: 1 N-Channel 100V This product has an 12800pF @ 25V value of 300pF @ 25V. This product's Standard. 180A (Tc) continuous drain-ID current at 25°C; This product has an 2.5 mOhm @ 60A, 10V of 12 Ohm @ 150mA, 0V. Power-off control: 315 W Maximum operating temperature of + 175 C Minimum operating temperature: - 55 C This product has a 40 ns of 16 ns. This product has a 108 ns of 16 ns. This product's 20 V. The ID of continuous drain current is 180 A. This product has a Vds-Drain-Source-Breakdown-Voltageof 100 V. This product has a 3.8 V Vgs-th gate-source threshold voltage for efficient power management. The 2.5 mOhms for this product is 12 Ohms. The transistor polarity is N-Channel. 'Typical-Turn-Off-Delay-Time' of 148 ns This product has a 62 ns. Qg-Gate-Charge is 180 nC.

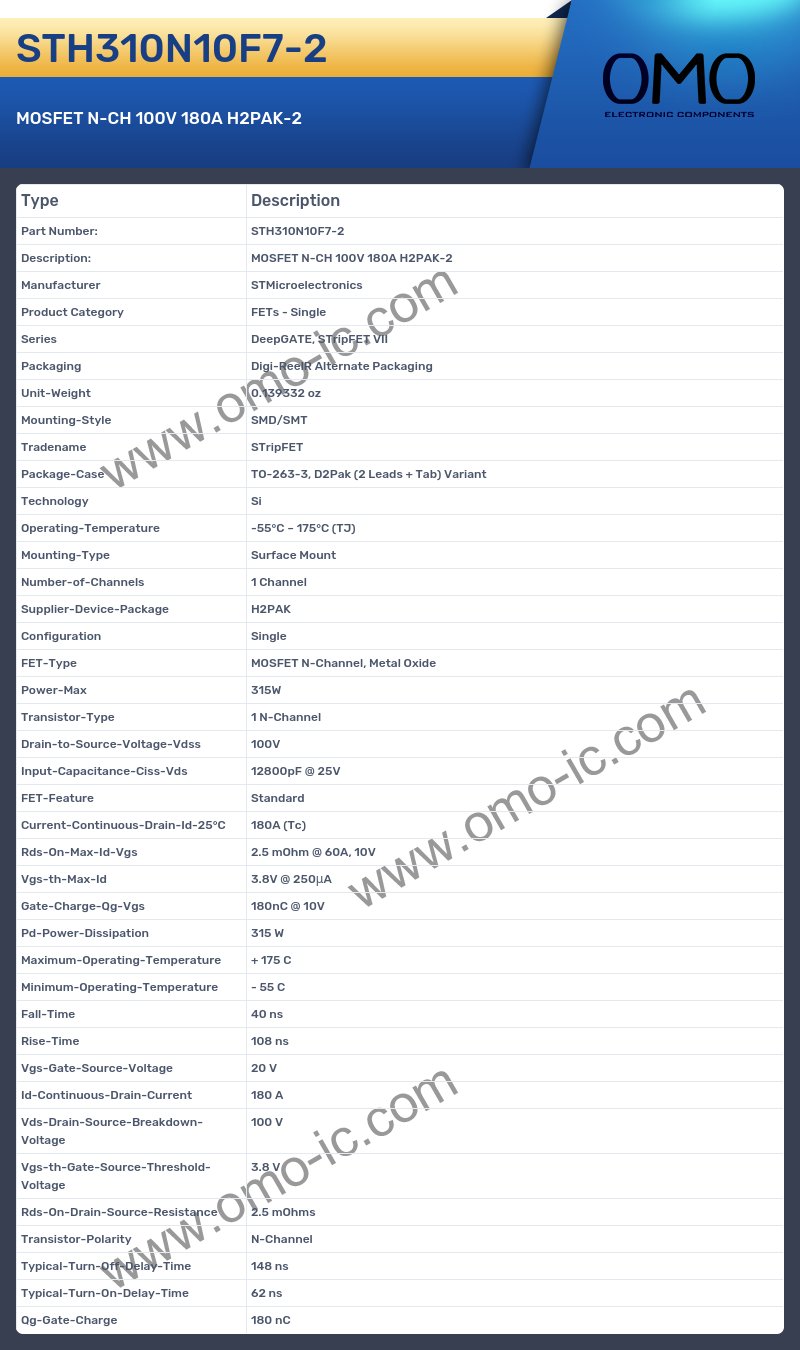

STH310N10F7-2 Image

STH310N10F7-2 Specifications

• Manufacturer STMicroelectronics
• Product Category FETs - Single
• Series DeepGATE, STripFET VII
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.139332 oz
• Mounting-Style SMD/SMT
• Tradename STripFET
• Package-Case TO-263-3, D2Pak (2 Leads + Tab) Variant
• Technology Si
• Operating-Temperature -55°C ~ 175°C (TJ)
• Mounting-Type Surface Mount
• Number-of-Channels 1 Channel
• Supplier-Device-Package H2PAK
• Configuration Single
• FET-Type MOSFET N-Channel, Metal Oxide
• Power-Max 315W
• Transistor-Type 1 N-Channel
• Drain-to-Source-Voltage-Vdss 100V
• Input-Capacitance-Ciss-Vds 12800pF @ 25V
• FET-Feature Standard
• Current-Continuous-Drain-Id-25°C 180A (Tc)
• Rds-On-Max-Id-Vgs 2.5 mOhm @ 60A, 10V
• Vgs-th-Max-Id 3.8V @ 250μA
• Gate-Charge-Qg-Vgs 180nC @ 10V
• Pd-Power-Dissipation 315 W
• Maximum-Operating-Temperature + 175 C
• Minimum-Operating-Temperature - 55 C
• Fall-Time 40 ns
• Rise-Time 108 ns
• Vgs-Gate-Source-Voltage 20 V
• Id-Continuous-Drain-Current 180 A
• Vds-Drain-Source-Breakdown-Voltage 100 V
• Vgs-th-Gate-Source-Threshold-Voltage 3.8 V
• Rds-On-Drain-Source-Resistance 2.5 mOhms
• Transistor-Polarity N-Channel
• Typical-Turn-Off-Delay-Time 148 ns
• Typical-Turn-On-Delay-Time 62 ns
• Qg-Gate-Charge 180 nC
