| Mfr. #: | STL10N60M2 |
|---|---|
| メーカー: | STMicroelectronics |
| 説明: | IGBT Transistors MOSFET POWER MOSFET |
| ライフサイクル: | メーカー新製品 |
| データシート: | STL10N60M2 データシート |
Product belongs to the MDmesh M2 series. Reel is the packaging method for this product SMD/SMT Mounting-Style PowerFlat-8 Si is the technology used. Number of channels: 1 Channel Configuration Single Transistor type: 1 N-Channel Power-off control: 48 W Maximum operating temperature of + 150 C Minimum operating temperature: - 55 C This product has a 13.2 ns of 16 ns. This product has a 8 ns of 16 ns. This product's +/- 25 V. The ID of continuous drain current is 5.5 A. This product has a Vds-Drain-Source-Breakdown-Voltageof 600 V. This product has a 3 V Vgs-th gate-source threshold voltage for efficient power management. The 660 mOhms for this product is 12 Ohms. The transistor polarity is N-Channel. 'Typical-Turn-Off-Delay-Time' of 32.5 ns This product has a 8.8 ns. Qg-Gate-Charge is 13.5 nC. This product operates in Enhancement channel mode for optimal performance.
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

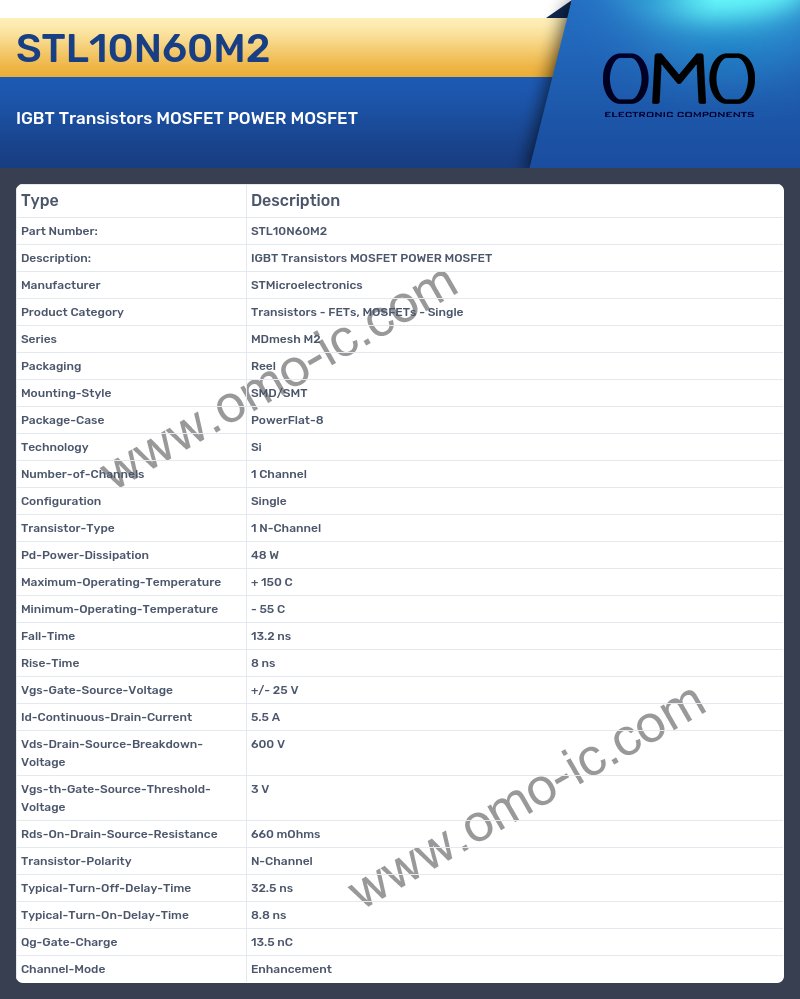

STL10N60M2 Specifications
