STL11N3LLH6

STL11N3LLH6 Overview

Product belongs to the N-channel STripFET series. Reel is the packaging method for this product SMD/SMT Mounting-Style PowerFlat-8 Si is the technology used. Number of channels: 1 Channel Configuration Single Transistor type: 1 N-Channel Power-off control: 50 W Maximum operating temperature of + 150 C Minimum operating temperature: - 55 C This product's +/- 20 V. The ID of continuous drain current is 11 A. This product has a Vds-Drain-Source-Breakdown-Voltageof 30 V. This product has a 1 V Vgs-th gate-source threshold voltage for efficient power management. The 6 mOhms for this product is 12 Ohms. The transistor polarity is N-Channel. Qg-Gate-Charge is 17 nC.

STL11N3LLH6 Image

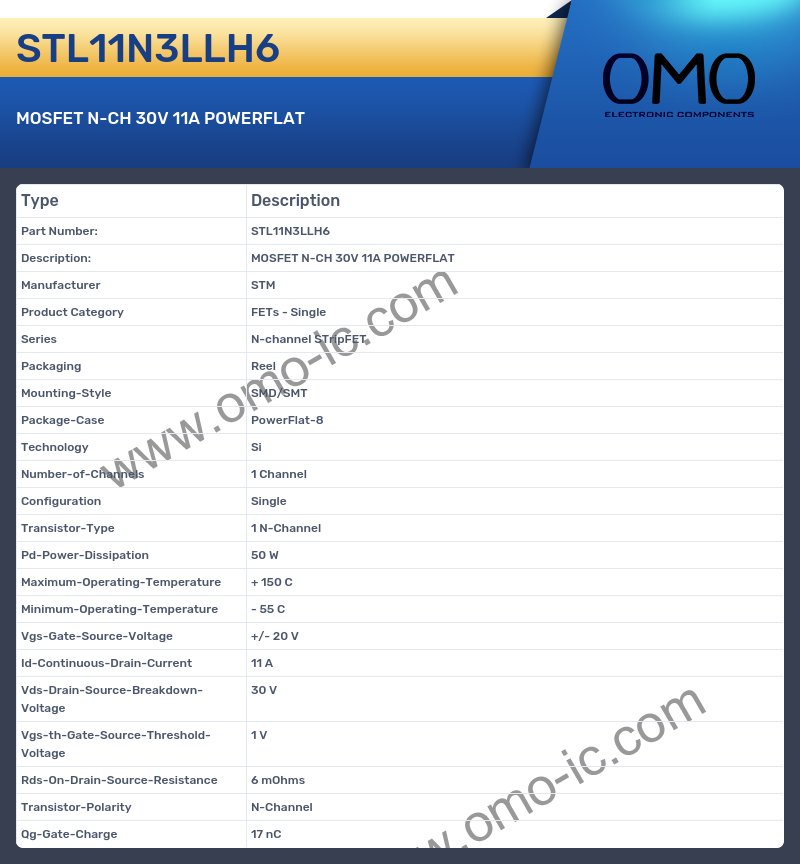

STL11N3LLH6 Specifications

• Manufacturer STM
• Product Category FETs - Single
• Series N-channel STripFET
• Packaging Reel
• Mounting-Style SMD/SMT
• Package-Case PowerFlat-8
• Technology Si
• Number-of-Channels 1 Channel
• Configuration Single
• Transistor-Type 1 N-Channel
• Pd-Power-Dissipation 50 W
• Maximum-Operating-Temperature + 150 C
• Minimum-Operating-Temperature - 55 C
• Vgs-Gate-Source-Voltage +/- 20 V
• Id-Continuous-Drain-Current 11 A
• Vds-Drain-Source-Breakdown-Voltage 30 V
• Vgs-th-Gate-Source-Threshold-Voltage 1 V
• Rds-On-Drain-Source-Resistance 6 mOhms
• Transistor-Polarity N-Channel
• Qg-Gate-Charge 17 nC
