STL140N4LLF5

STL140N4LLF5 Overview

Product belongs to the STripFET V series. Digi-ReelR Alternate Packaging is the packaging method for this product SMD/SMT Mounting-Style 8-PowerVDFN Si is the technology used. Operational temperature range: -55°C ~ 150°C (TJ) Surface Mount mounting type Number of channels: 1 Channel Supplier device package: PowerFlat (5x6) Configuration Single This product uses an MOSFET N-Channel, Metal Oxide FET-Type transistor. Transistor type: 1 N-Channel 40V This product has an 5900pF @ 25V value of 300pF @ 25V. This product's Standard. 140A (Tc) continuous drain-ID current at 25°C; This product has an 2.75 mOhm @ 16A, 10V of 12 Ohm @ 150mA, 0V. Power-off control: 80 W Maximum operating temperature of + 150 C Minimum operating temperature: - 55 C This product's 22 V. The ID of continuous drain current is 140 A. This product has a Vds-Drain-Source-Breakdown-Voltageof 40 V. The 2.1 mOhms for this product is 12 Ohms. The transistor polarity is N-Channel.

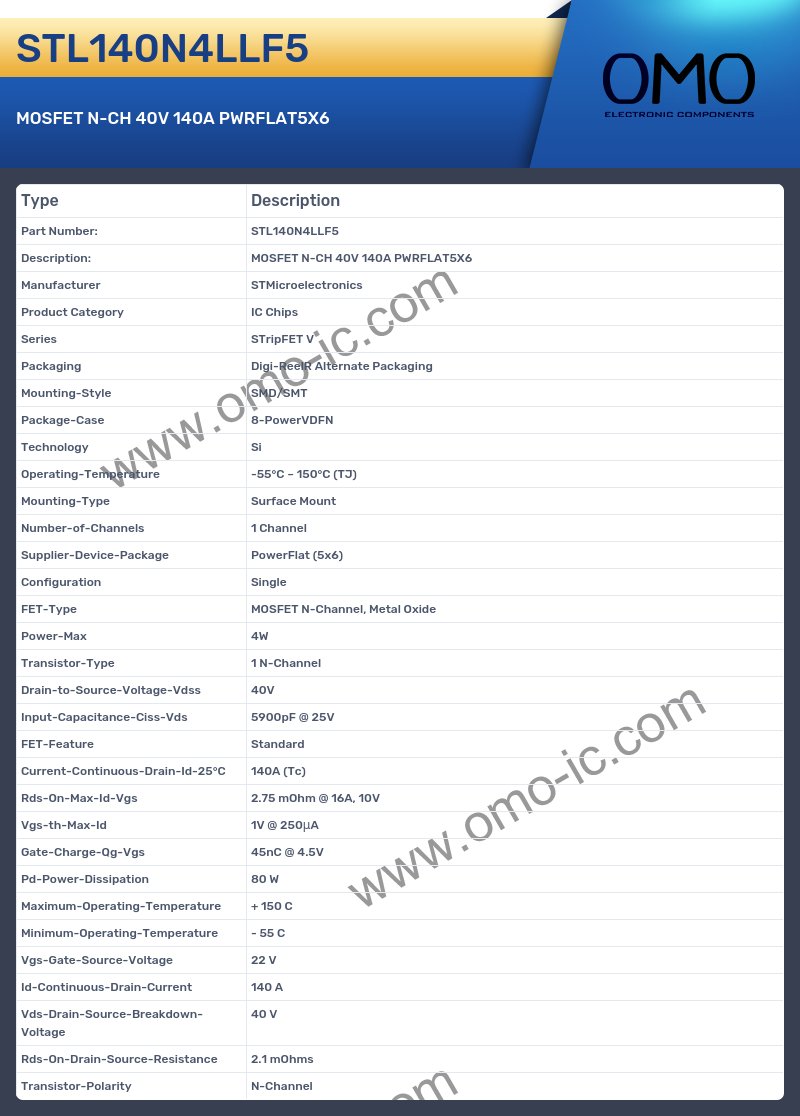

STL140N4LLF5 Image

STL140N4LLF5 Specifications

• Manufacturer STMicroelectronics
• Product Category IC Chips
• Series STripFET V
• Packaging Digi-ReelR Alternate Packaging
• Mounting-Style SMD/SMT
• Package-Case 8-PowerVDFN
• Technology Si
• Operating-Temperature -55°C ~ 150°C (TJ)
• Mounting-Type Surface Mount
• Number-of-Channels 1 Channel
• Supplier-Device-Package PowerFlat (5x6)
• Configuration Single
• FET-Type MOSFET N-Channel, Metal Oxide
• Power-Max 4W
• Transistor-Type 1 N-Channel
• Drain-to-Source-Voltage-Vdss 40V
• Input-Capacitance-Ciss-Vds 5900pF @ 25V
• FET-Feature Standard
• Current-Continuous-Drain-Id-25°C 140A (Tc)
• Rds-On-Max-Id-Vgs 2.75 mOhm @ 16A, 10V
• Vgs-th-Max-Id 1V @ 250μA
• Gate-Charge-Qg-Vgs 45nC @ 4.5V
• Pd-Power-Dissipation 80 W
• Maximum-Operating-Temperature + 150 C
• Minimum-Operating-Temperature - 55 C
• Vgs-Gate-Source-Voltage 22 V
• Id-Continuous-Drain-Current 140 A
• Vds-Drain-Source-Breakdown-Voltage 40 V
• Rds-On-Drain-Source-Resistance 2.1 mOhms
• Transistor-Polarity N-Channel
