STL20NF06LAG

STL20NF06LAG Overview

Reel is the packaging method for this product SMD/SMT Mounting-Style PowerFlat-8 Si is the technology used. Number of channels: 1 Channel Power-off control: 75 W Maximum operating temperature of + 175 C Minimum operating temperature: - 55 C This product has a 7.7 ns of 16 ns. This product has a 15.4 ns of 16 ns. This product's -. The ID of continuous drain current is 20 A. This product has a Vds-Drain-Source-Breakdown-Voltageof 60 V. This product has a 2.5 V Vgs-th gate-source threshold voltage for efficient power management. The 40 mOhms for this product is 12 Ohms. The transistor polarity is N-Channel. 'Typical-Turn-Off-Delay-Time' of 36.8 ns This product has a 7 ns. Qg-Gate-Charge is 22.5 nC. This product operates in Enhancement channel mode for optimal performance.

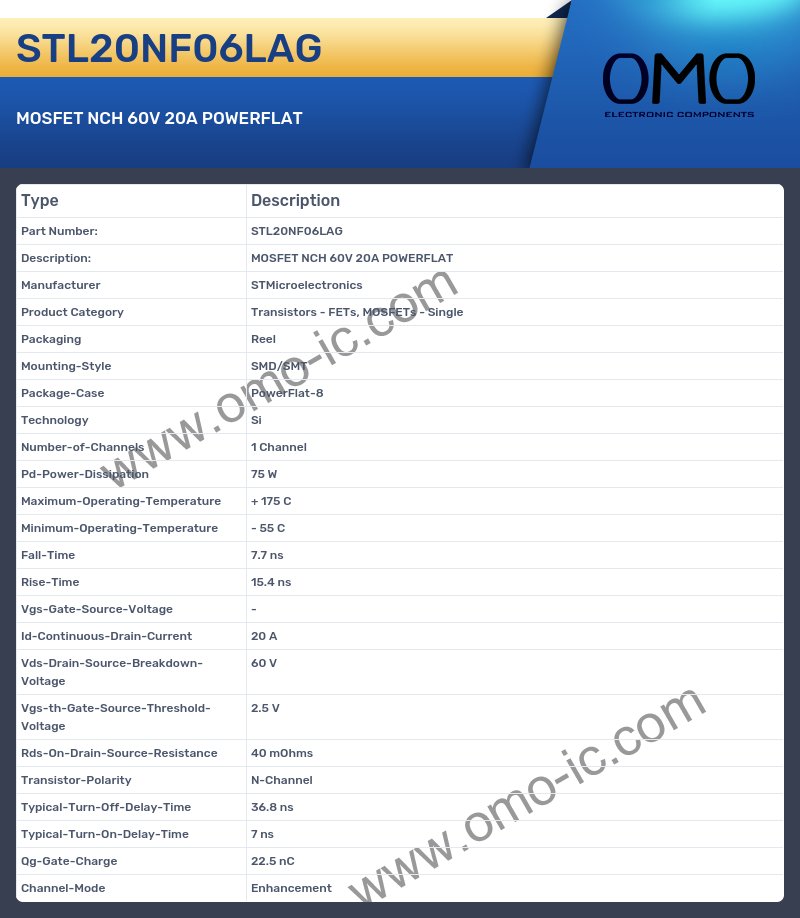

STL20NF06LAG Image

STL20NF06LAG Specifications

• Manufacturer STMicroelectronics
• Product Category Transistors - FETs, MOSFETs - Single
• Packaging Reel
• Mounting-Style SMD/SMT
• Package-Case PowerFlat-8
• Technology Si
• Number-of-Channels 1 Channel
• Pd-Power-Dissipation 75 W
• Maximum-Operating-Temperature + 175 C
• Minimum-Operating-Temperature - 55 C
• Fall-Time 7.7 ns
• Rise-Time 15.4 ns
• Vgs-Gate-Source-Voltage -
• Id-Continuous-Drain-Current 20 A
• Vds-Drain-Source-Breakdown-Voltage 60 V
• Vgs-th-Gate-Source-Threshold-Voltage 2.5 V
• Rds-On-Drain-Source-Resistance 40 mOhms
• Transistor-Polarity N-Channel
• Typical-Turn-Off-Delay-Time 36.8 ns
• Typical-Turn-On-Delay-Time 7 ns
• Qg-Gate-Charge 22.5 nC
• Channel-Mode Enhancement
