STL4N80K5

STL4N80K5 Overview

Product belongs to the SuperMESH5 series. Digi-ReelR Alternate Packaging is the packaging method for this product SMD/SMT Mounting-Style 8-PowerVDFN Si is the technology used. Operational temperature range: -55°C ~ 150°C (TJ) Surface Mount mounting type Number of channels: 1 Channel Supplier device package: PowerFlat (5x6) Configuration Triple Common Source This product uses an MOSFET N-Channel, Metal Oxide FET-Type transistor. Transistor type: 1 N-Channel 800V This product has an 175pF @ 100V value of 300pF @ 25V. This product's Standard. 2.5A (Tc) continuous drain-ID current at 25°C; This product has an 2.5 Ohm @ 1.5A, 10V of 12 Ohm @ 150mA, 0V. Power-off control: 38 W Maximum operating temperature of + 150 C Minimum operating temperature: - 55 C This product has a 21 ns of 16 ns. This product has a 15 ns of 16 ns. This product's 30 V. The ID of continuous drain current is 2.5 A. This product has a Vds-Drain-Source-Breakdown-Voltageof 800 V. This product has a 4 V Vgs-th gate-source threshold voltage for efficient power management. The 2.5 Ohms for this product is 12 Ohms. The transistor polarity is N-Channel. 'Typical-Turn-Off-Delay-Time' of 36 ns This product has a 16.5 ns. Qg-Gate-Charge is 10.5 nC.

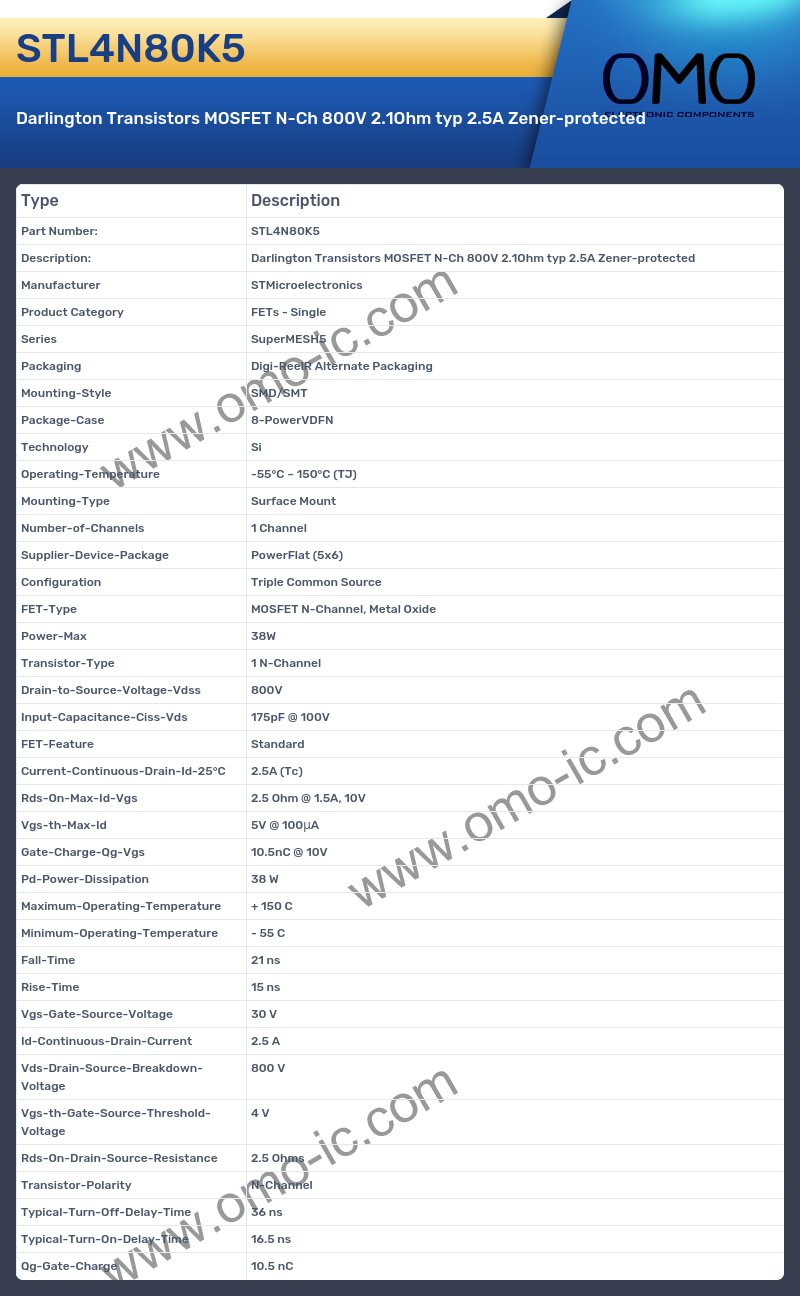

STL4N80K5 Image

STL4N80K5 Specifications

• Manufacturer STMicroelectronics
• Product Category FETs - Single
• Series SuperMESH5
• Packaging Digi-ReelR Alternate Packaging
• Mounting-Style SMD/SMT
• Package-Case 8-PowerVDFN
• Technology Si
• Operating-Temperature -55°C ~ 150°C (TJ)
• Mounting-Type Surface Mount
• Number-of-Channels 1 Channel
• Supplier-Device-Package PowerFlat (5x6)
• Configuration Triple Common Source
• FET-Type MOSFET N-Channel, Metal Oxide
• Power-Max 38W
• Transistor-Type 1 N-Channel
• Drain-to-Source-Voltage-Vdss 800V
• Input-Capacitance-Ciss-Vds 175pF @ 100V
• FET-Feature Standard
• Current-Continuous-Drain-Id-25°C 2.5A (Tc)
• Rds-On-Max-Id-Vgs 2.5 Ohm @ 1.5A, 10V
• Vgs-th-Max-Id 5V @ 100μA
• Gate-Charge-Qg-Vgs 10.5nC @ 10V
• Pd-Power-Dissipation 38 W
• Maximum-Operating-Temperature + 150 C
• Minimum-Operating-Temperature - 55 C
• Fall-Time 21 ns
• Rise-Time 15 ns
• Vgs-Gate-Source-Voltage 30 V
• Id-Continuous-Drain-Current 2.5 A
• Vds-Drain-Source-Breakdown-Voltage 800 V
• Vgs-th-Gate-Source-Threshold-Voltage 4 V
• Rds-On-Drain-Source-Resistance 2.5 Ohms
• Transistor-Polarity N-Channel
• Typical-Turn-Off-Delay-Time 36 ns
• Typical-Turn-On-Delay-Time 16.5 ns
• Qg-Gate-Charge 10.5 nC
