STM1061N25WX6F

STM1061N25WX6F Overview

Product belongs to the STM1061 series. Type: Simple Reset/Power-On Reset Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.050717 oz SMD/SMT Mounting-Style SOT-23-3 Operational temperature range: -40°C ~ 85°C (TA) Surface Mount mounting type Output-Type: Active Low Open Drain Supplier device package: SOT-23-3 The Open Drain or Open Collector. This product's Active Low. This product has 1 monitored voltages. The reset timeout for this product is 30 μs Typical Propagation Delay. This product's 2.5V. Power-off control: 320 mW Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C 3.6 uA is 92 nA. This product does not have No Backup capability. Maximum supply voltage of 6 V Minimum supply voltage is 0.7 V This product includes No Watchdog This product's 2.5 V is 2.32 V. This product can only 1 Input at a time. This product features a No Manual Reset function that allows for manual reset. This product does not support No Chip Enable. This product does not have No capability. The 2.55 V is 2.35 V. 2.45 V is set to 2.29 V.

STM1061N25WX6F Image

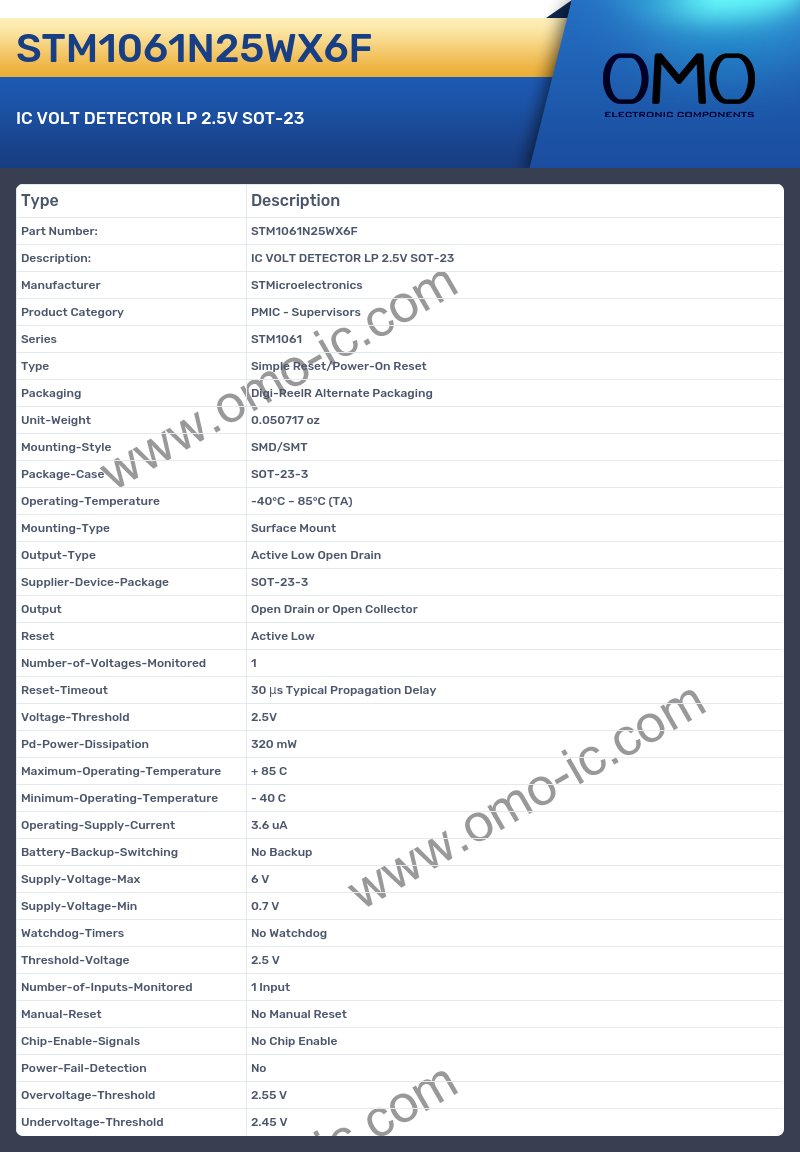

STM1061N25WX6F Specifications

• Manufacturer STMicroelectronics
• Product Category PMIC - Supervisors
• Series STM1061
• Type Simple Reset/Power-On Reset
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.050717 oz
• Mounting-Style SMD/SMT
• Package-Case SOT-23-3
• Operating-Temperature -40°C ~ 85°C (TA)
• Mounting-Type Surface Mount
• Output-Type Active Low Open Drain
• Supplier-Device-Package SOT-23-3
• Output Open Drain or Open Collector
• Reset Active Low
• Number-of-Voltages-Monitored 1
• Reset-Timeout 30 μs Typical Propagation Delay
• Voltage-Threshold 2.5V
• Pd-Power-Dissipation 320 mW
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Current 3.6 uA
• Battery-Backup-Switching No Backup
• Supply-Voltage-Max 6 V
• Supply-Voltage-Min 0.7 V
• Watchdog-Timers No Watchdog
• Threshold-Voltage 2.5 V
• Number-of-Inputs-Monitored 1 Input
• Manual-Reset No Manual Reset
• Chip-Enable-Signals No Chip Enable
• Power-Fail-Detection No
• Overvoltage-Threshold 2.55 V
• Undervoltage-Threshold 2.45 V
