STM6905SYEDS6F

STM6905SYEDS6F Overview

Product belongs to the STM6905 series. Type: Multi-Voltage Supervisor Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.005573 oz SMD/SMT Mounting-Style TSSOP-8 Operational temperature range: -40°C ~ 85°C (TA) Surface Mount mounting type Output-Type: Active Low Open Drain Supplier device package: 8-TSSOP The Open Drain or Open Collector. This product's Active Low. This product has 5 monitored voltages. The reset timeout for this product is 140 ms Minimum. This product's 2.188V, 2.955V, Adj, Adj, Adj. Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C 12 uA is 92 nA. This product does not have No Backup capability. Maximum supply voltage of 5.5 V Minimum supply voltage is 0.8 V This product includes No Watchdog This product's 0.8 V to 5.5 V is 2.32 V. This product can only 2 Input at a time. This product features a Manual Reset function that allows for manual reset. The 2.985 V 2.21 V is 2.35 V. 2.925 V 2.166 V is set to 2.29 V.

STM6905SYEDS6F Image

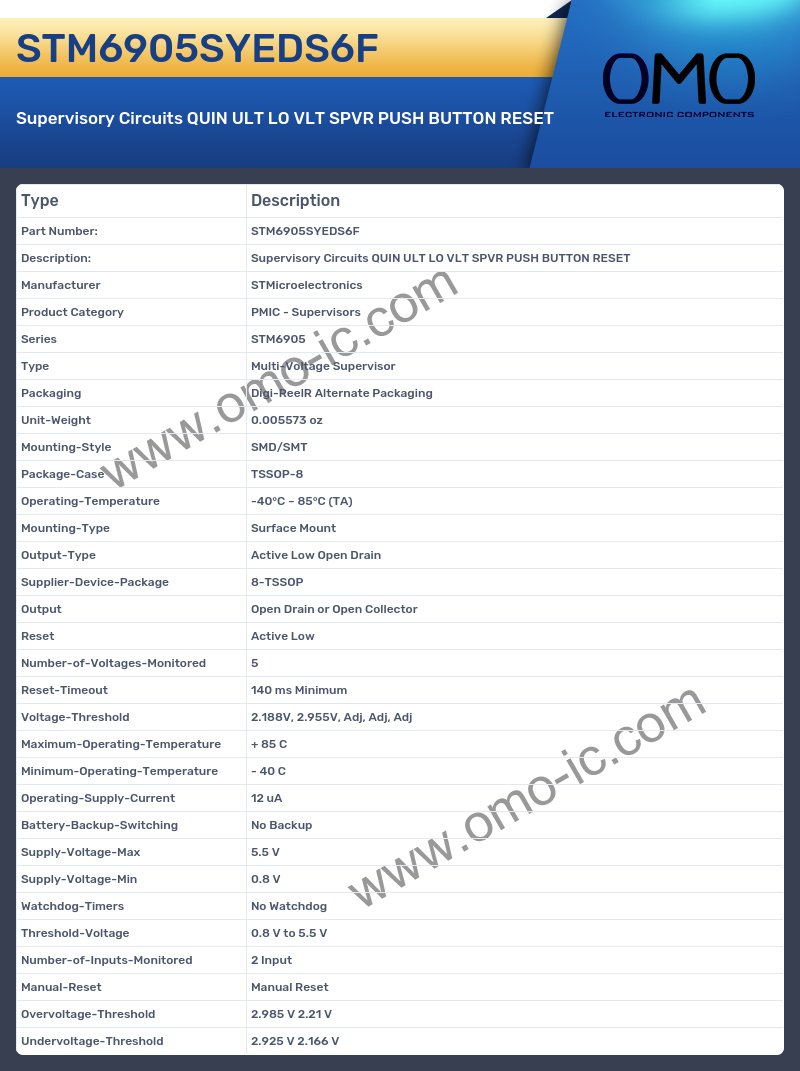

STM6905SYEDS6F Specifications

• Manufacturer STMicroelectronics
• Product Category PMIC - Supervisors
• Series STM6905
• Type Multi-Voltage Supervisor
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.005573 oz
• Mounting-Style SMD/SMT
• Package-Case TSSOP-8
• Operating-Temperature -40°C ~ 85°C (TA)
• Mounting-Type Surface Mount
• Output-Type Active Low Open Drain
• Supplier-Device-Package 8-TSSOP
• Output Open Drain or Open Collector
• Reset Active Low
• Number-of-Voltages-Monitored 5
• Reset-Timeout 140 ms Minimum
• Voltage-Threshold 2.188V, 2.955V, Adj, Adj, Adj
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Current 12 uA
• Battery-Backup-Switching No Backup
• Supply-Voltage-Max 5.5 V
• Supply-Voltage-Min 0.8 V
• Watchdog-Timers No Watchdog
• Threshold-Voltage 0.8 V to 5.5 V
• Number-of-Inputs-Monitored 2 Input
• Manual-Reset Manual Reset
• Overvoltage-Threshold 2.985 V 2.21 V
• Undervoltage-Threshold 2.925 V 2.166 V
