STM802SM6E Overview

Product belongs to the STM802SM series. Type: Simple Reset/Power-On Reset Tube Alternate Packaging is the packaging method for this product Weight of 0.017870 oz SMD/SMT Mounting-Style SO-8 Operational temperature range: -40°C ~ 85°C (TA) Surface Mount mounting type Output-Type: Active Low Push-Pull Supplier device package: 8-SO The Push-Pull, Totem Pole. This product's Active Low. This product has 1 monitored voltages. The reset timeout for this product is 140 ms Minimum. This product's 2.925V. Power-off control: 320 mW Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C 60 uA is 92 nA. This product does not have Backup capability. Maximum supply voltage of 5.5 V Minimum supply voltage is 1 V This product includes Watchdog This product's 1 V to 5.5 V is 2.32 V. This product can only 1 Input at a time. This product features a No Manual Reset function that allows for manual reset. This product does not support No Chip Enable. This product does not have Yes capability. The product's 280 ms is 200 ms. The 3 V is 2.35 V. 2.88 V is set to 2.29 V.

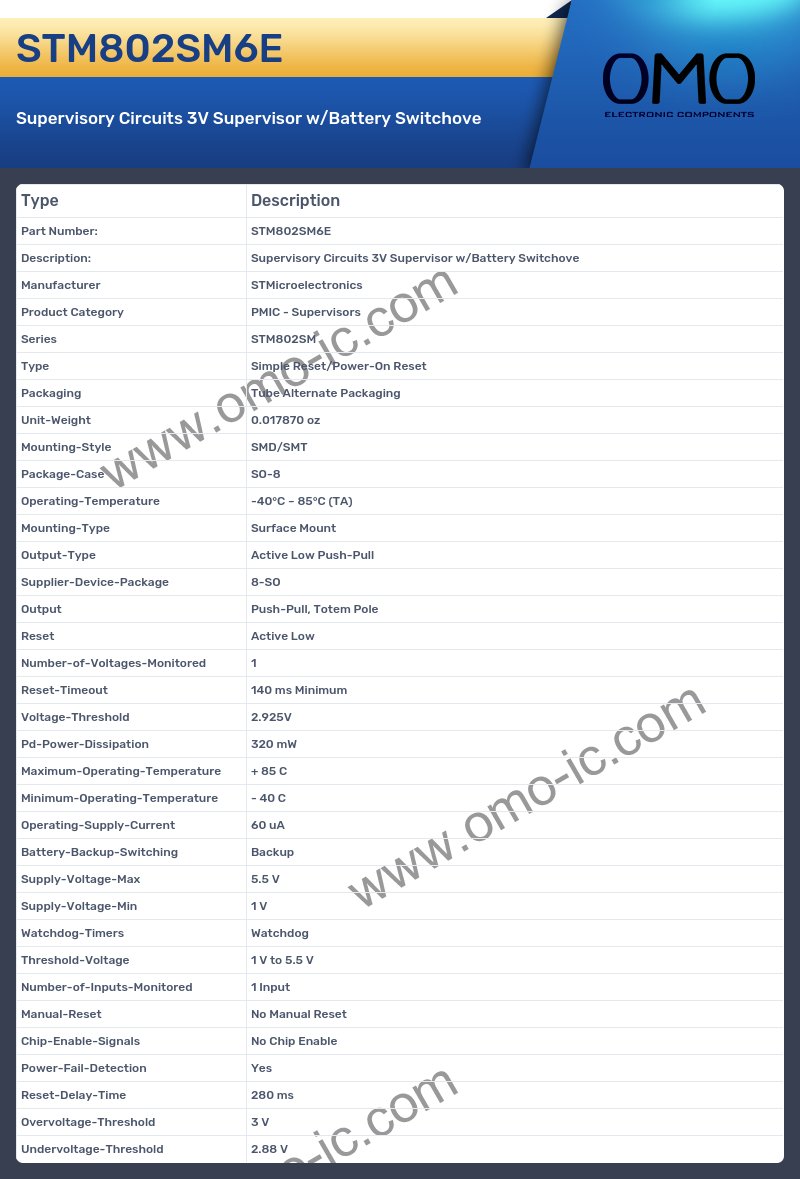

STM802SM6E Image

STM802SM6E Specifications

• Manufacturer STMicroelectronics
• Product Category PMIC - Supervisors
• Series STM802SM
• Type Simple Reset/Power-On Reset
• Packaging Tube Alternate Packaging
• Unit-Weight 0.017870 oz
• Mounting-Style SMD/SMT
• Package-Case SO-8
• Operating-Temperature -40°C ~ 85°C (TA)
• Mounting-Type Surface Mount
• Output-Type Active Low Push-Pull
• Supplier-Device-Package 8-SO
• Output Push-Pull, Totem Pole
• Reset Active Low
• Number-of-Voltages-Monitored 1
• Reset-Timeout 140 ms Minimum
• Voltage-Threshold 2.925V
• Pd-Power-Dissipation 320 mW
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Current 60 uA
• Battery-Backup-Switching Backup
• Supply-Voltage-Max 5.5 V
• Supply-Voltage-Min 1 V
• Watchdog-Timers Watchdog
• Threshold-Voltage 1 V to 5.5 V
• Number-of-Inputs-Monitored 1 Input
• Manual-Reset No Manual Reset
• Chip-Enable-Signals No Chip Enable
• Power-Fail-Detection Yes
• Reset-Delay-Time 280 ms
• Overvoltage-Threshold 3 V
• Undervoltage-Threshold 2.88 V
