STN4NF20L

STN4NF20L Overview

Product belongs to the STripFET II series. Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.008826 oz SMD/SMT Mounting-Style TO-261-4, TO-261AA Si is the technology used. Operational temperature range: -55°C ~ 150°C (TJ) Surface Mount mounting type Number of channels: 1 Channel Supplier device package: SOT-223 Configuration Single This product uses an MOSFET N-Channel, Metal Oxide FET-Type transistor. Transistor type: 1 N-Channel 200V This product has an 150pF @ 25V value of 300pF @ 25V. This product's Standard. 1A (Tc) continuous drain-ID current at 25°C; This product has an 1.5 Ohm @ 500mA, 10V of 12 Ohm @ 150mA, 0V. Power-off control: 3.3 W Maximum operating temperature of + 150 C The ID of continuous drain current is 1 A. This product has a Vds-Drain-Source-Breakdown-Voltageof 200 V. The 1.5 Ohms for this product is 12 Ohms. The transistor polarity is N-Channel.

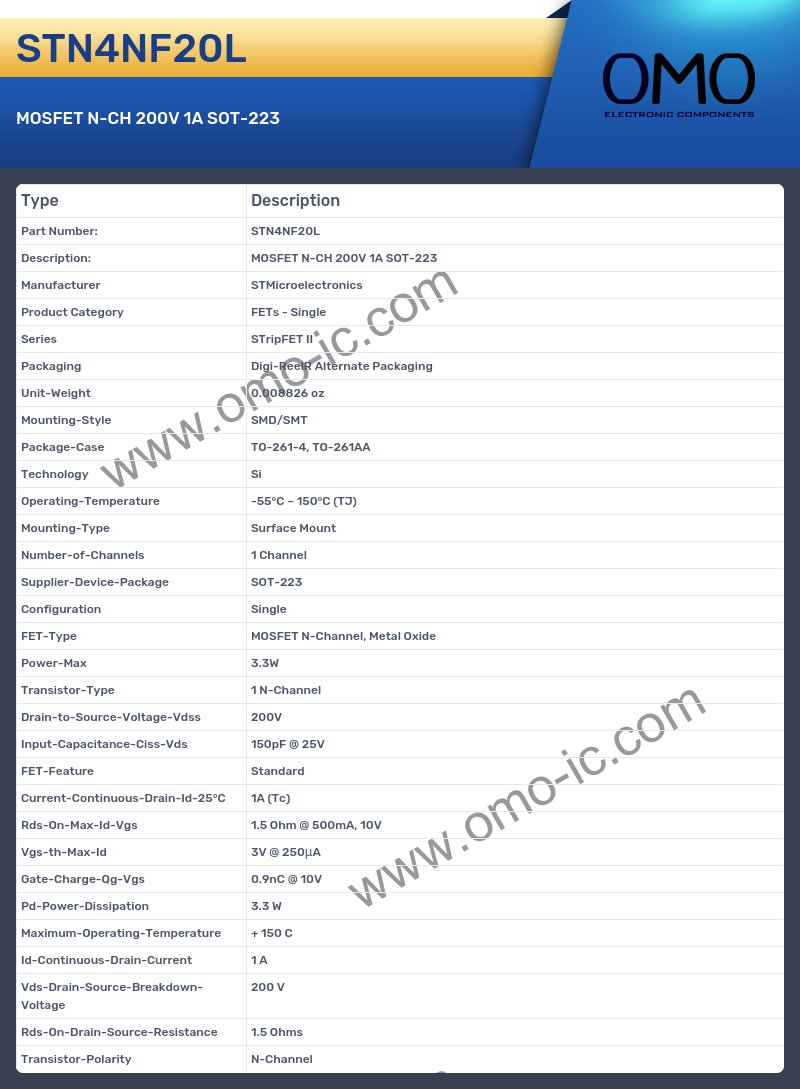

STN4NF20L Image

STN4NF20L Specifications

• Manufacturer STMicroelectronics
• Product Category FETs - Single
• Series STripFET II
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.008826 oz
• Mounting-Style SMD/SMT
• Package-Case TO-261-4, TO-261AA
• Technology Si
• Operating-Temperature -55°C ~ 150°C (TJ)
• Mounting-Type Surface Mount
• Number-of-Channels 1 Channel
• Supplier-Device-Package SOT-223
• Configuration Single
• FET-Type MOSFET N-Channel, Metal Oxide
• Power-Max 3.3W
• Transistor-Type 1 N-Channel
• Drain-to-Source-Voltage-Vdss 200V
• Input-Capacitance-Ciss-Vds 150pF @ 25V
• FET-Feature Standard
• Current-Continuous-Drain-Id-25°C 1A (Tc)
• Rds-On-Max-Id-Vgs 1.5 Ohm @ 500mA, 10V
• Vgs-th-Max-Id 3V @ 250μA
• Gate-Charge-Qg-Vgs 0.9nC @ 10V
• Pd-Power-Dissipation 3.3 W
• Maximum-Operating-Temperature + 150 C
• Id-Continuous-Drain-Current 1 A
• Vds-Drain-Source-Breakdown-Voltage 200 V
• Rds-On-Drain-Source-Resistance 1.5 Ohms
• Transistor-Polarity N-Channel
