STN9360

STN9360 Overview

Product belongs to the 500V to 1000V Transistors series. Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.006632 oz SMD/SMT Mounting-Style TO-261-4, TO-261AA Surface Mount mounting type Supplier device package: SOT-223 Transistor type: PNP Maximum current collector Ic is 500mA . Maximum collector-emitter breakdown voltage of 600V DC current gain minimum (hFE) of Ic/Vce at 120 @ 20mA, 5V. Product Attribute: Vce-Saturation-Max-Ib-Ic: 500mV @ 10mA, 100mA Power-off control: 1.6 W Maximum operating temperature of + 150 C Rated VCEO up to - 600 V The transistor polarity is PNP. Saturation voltage between collector and emitter is - 0.5 V - 7 V rating of 5 V Max DC collector current: - 0.5 A This product is capable of handling a - 0.5 V continuous collector current. Minimum hfe for DC collector-base gain is 200. 200 of 605.

STN9360 Image

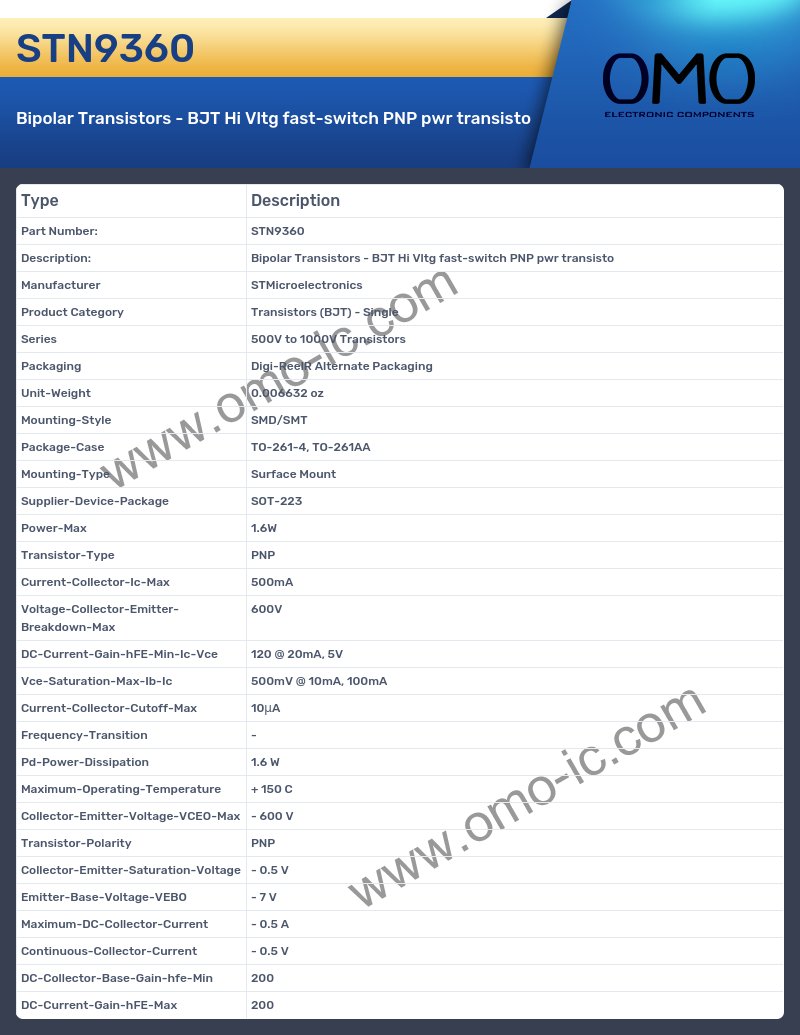

STN9360 Specifications

• Manufacturer STMicroelectronics
• Product Category Transistors (BJT) - Single
• Series 500V to 1000V Transistors
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.006632 oz
• Mounting-Style SMD/SMT
• Package-Case TO-261-4, TO-261AA
• Mounting-Type Surface Mount
• Supplier-Device-Package SOT-223
• Power-Max 1.6W
• Transistor-Type PNP
• Current-Collector-Ic-Max 500mA
• Voltage-Collector-Emitter-Breakdown-Max 600V
• DC-Current-Gain-hFE-Min-Ic-Vce 120 @ 20mA, 5V
• Vce-Saturation-Max-Ib-Ic 500mV @ 10mA, 100mA
• Current-Collector-Cutoff-Max 10μA
• Frequency-Transition -
• Pd-Power-Dissipation 1.6 W
• Maximum-Operating-Temperature + 150 C
• Collector-Emitter-Voltage-VCEO-Max - 600 V
• Transistor-Polarity PNP
• Collector-Emitter-Saturation-Voltage - 0.5 V
• Emitter-Base-Voltage-VEBO - 7 V
• Maximum-DC-Collector-Current - 0.5 A
• Continuous-Collector-Current - 0.5 V
• DC-Collector-Base-Gain-hfe-Min 200
• DC-Current-Gain-hFE-Max 200
