| Mfr. #: | STP120N4F6 |
|---|---|
| メーカー: | STMicroelectronics |
| 説明: | MOSFET N-CH 40V 80A TO-220AB |
| ライフサイクル: | メーカー新製品 |
| データシート: | STP120N4F6 データシート |
Product belongs to the N-channel STripFET series. Tube is the packaging method for this product Weight of 0.011640 oz Through Hole Mounting-Style TO-220-3 Si is the technology used. Number of channels: 1 Channel Configuration Single Transistor type: 1 N-Channel Power-off control: 110 W Maximum operating temperature of + 175 C Minimum operating temperature: - 55 C This product has a 20 ns of 16 ns. This product has a 70 ns of 16 ns. This product's 20 V. The ID of continuous drain current is 80 A. This product has a Vds-Drain-Source-Breakdown-Voltageof 40 V. This product has a 4 V Vgs-th gate-source threshold voltage for efficient power management. The 4.3 mOhms for this product is 12 Ohms. The transistor polarity is N-Channel. 'Typical-Turn-Off-Delay-Time' of 40 ns This product has a 20 ns. Qg-Gate-Charge is 65 nC. This product operates in Enhancement channel mode for optimal performance.
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

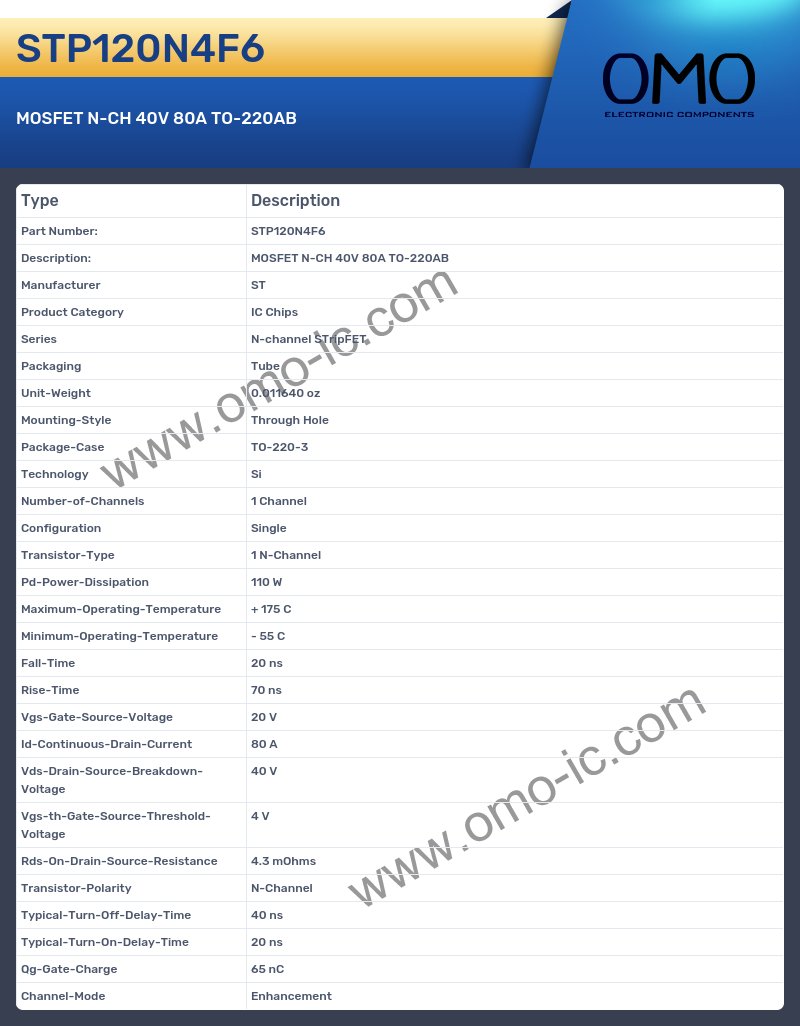

STP120N4F6 Specifications
A: Is the cutoff frequency of the product Series?
Q: Yes, the product's Series is indeed N-channel STripFET
A: At what frequency does the Packaging?
Q: The product Packaging is Tube.
A: At what frequency does the Unit-Weight?
Q: The product Unit-Weight is 0.011640 oz.
A: What is the Mounting-Style of the product?
Q: The Mounting-Style of the product is Through Hole.
A: At what frequency does the Package-Case?
Q: The product Package-Case is TO-220-3.
A: At what frequency does the Technology?
Q: The product Technology is Si.
A: What is the Number-of-Channels of the product?
Q: The Number-of-Channels of the product is 1 Channel.
A: What is the Configuration of the product?
Q: The Configuration of the product is Single.
A: What is the Transistor-Type of the product?
Q: The Transistor-Type of the product is 1 N-Channel.
A: What is the Pd-Power-Dissipation of the product?
Q: The Pd-Power-Dissipation of the product is 110 W.
A: Is the cutoff frequency of the product Maximum-Operating-Temperature?
Q: Yes, the product's Maximum-Operating-Temperature is indeed + 175 C
A: Is the cutoff frequency of the product Minimum-Operating-Temperature?
Q: Yes, the product's Minimum-Operating-Temperature is indeed - 55 C
A: What is the Fall-Time of the product?
Q: The Fall-Time of the product is 20 ns.
A: What is the Rise-Time of the product?
Q: The Rise-Time of the product is 70 ns.
A: Is the cutoff frequency of the product Vgs-Gate-Source-Voltage?
Q: Yes, the product's Vgs-Gate-Source-Voltage is indeed 20 V
A: Is the cutoff frequency of the product Id-Continuous-Drain-Current?
Q: Yes, the product's Id-Continuous-Drain-Current is indeed 80 A
A: What is the Vds-Drain-Source-Breakdown-Voltage of the product?
Q: The Vds-Drain-Source-Breakdown-Voltage of the product is 40 V.
A: What is the Vgs-th-Gate-Source-Threshold-Voltage of the product?
Q: The Vgs-th-Gate-Source-Threshold-Voltage of the product is 4 V.
A: What is the Rds-On-Drain-Source-Resistance of the product?
Q: The Rds-On-Drain-Source-Resistance of the product is 4.3 mOhms.
A: Is the cutoff frequency of the product Transistor-Polarity?
Q: Yes, the product's Transistor-Polarity is indeed N-Channel
A: At what frequency does the Typical-Turn-Off-Delay-Time?
Q: The product Typical-Turn-Off-Delay-Time is 40 ns.
A: What is the Typical-Turn-On-Delay-Time of the product?
Q: The Typical-Turn-On-Delay-Time of the product is 20 ns.
A: At what frequency does the Qg-Gate-Charge?
Q: The product Qg-Gate-Charge is 65 nC.
A: What is the Channel-Mode of the product?
Q: The Channel-Mode of the product is Enhancement.
