| Mfr. #: | STP270N8F7 |
|---|---|
| メーカー: | STMicroelectronics |
| 説明: | MOSFET N CH 80V 180A TO220 |
| ライフサイクル: | メーカー新製品 |
| データシート: | STP270N8F7 データシート |
Product belongs to the N-channel STripFET series. Tube is the packaging method for this product Weight of 0.011640 oz Through Hole Mounting-Style TO-220-3 Si is the technology used. Number of channels: 1 Channel Configuration Single Transistor type: 1 N-Channel Power-off control: 315 W Maximum operating temperature of + 175 C Minimum operating temperature: - 55 C This product has a 42 ns of 16 ns. This product has a 180 ns of 16 ns. This product's 20 V. The ID of continuous drain current is 180 A. This product has a Vds-Drain-Source-Breakdown-Voltageof 80 V. This product has a 2 V to 4 V Vgs-th gate-source threshold voltage for efficient power management. The 2.5 mOhms for this product is 12 Ohms. The transistor polarity is N-Channel. 'Typical-Turn-Off-Delay-Time' of 98 ns This product has a 56 ns. Qg-Gate-Charge is 193 nC.
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

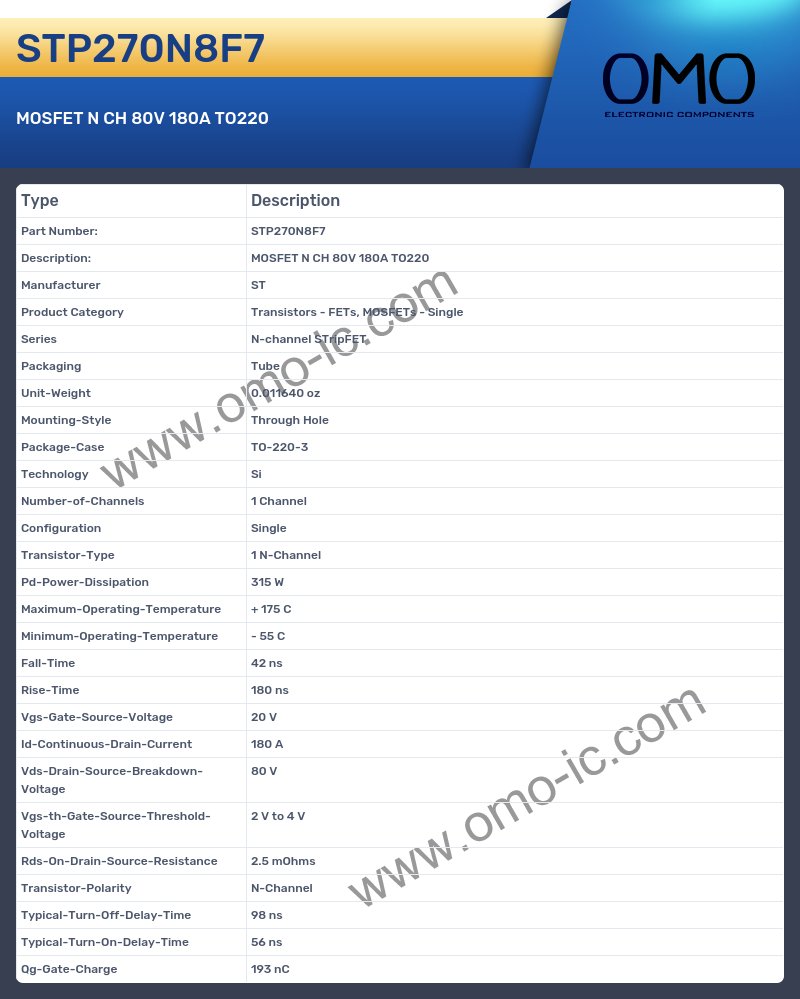

STP270N8F7 Specifications
A: At what frequency does the Series?
Q: The product Series is N-channel STripFET.
A: At what frequency does the Packaging?
Q: The product Packaging is Tube.
A: At what frequency does the Unit-Weight?
Q: The product Unit-Weight is 0.011640 oz.
A: Is the cutoff frequency of the product Mounting-Style?
Q: Yes, the product's Mounting-Style is indeed Through Hole
A: Is the cutoff frequency of the product Package-Case?
Q: Yes, the product's Package-Case is indeed TO-220-3
A: What is the Technology of the product?
Q: The Technology of the product is Si.
A: Is the cutoff frequency of the product Number-of-Channels?
Q: Yes, the product's Number-of-Channels is indeed 1 Channel
A: What is the Configuration of the product?
Q: The Configuration of the product is Single.
A: At what frequency does the Transistor-Type?
Q: The product Transistor-Type is 1 N-Channel.
A: What is the Pd-Power-Dissipation of the product?
Q: The Pd-Power-Dissipation of the product is 315 W.
A: Is the cutoff frequency of the product Maximum-Operating-Temperature?
Q: Yes, the product's Maximum-Operating-Temperature is indeed + 175 C
A: At what frequency does the Minimum-Operating-Temperature?
Q: The product Minimum-Operating-Temperature is - 55 C.
A: Is the cutoff frequency of the product Fall-Time?
Q: Yes, the product's Fall-Time is indeed 42 ns
A: Is the cutoff frequency of the product Rise-Time?
Q: Yes, the product's Rise-Time is indeed 180 ns
A: At what frequency does the Vgs-Gate-Source-Voltage?
Q: The product Vgs-Gate-Source-Voltage is 20 V.
A: Is the cutoff frequency of the product Id-Continuous-Drain-Current?
Q: Yes, the product's Id-Continuous-Drain-Current is indeed 180 A
A: Is the cutoff frequency of the product Vds-Drain-Source-Breakdown-Voltage?
Q: Yes, the product's Vds-Drain-Source-Breakdown-Voltage is indeed 80 V
A: At what frequency does the Vgs-th-Gate-Source-Threshold-Voltage?
Q: The product Vgs-th-Gate-Source-Threshold-Voltage is 2 V to 4 V.
A: What is the Rds-On-Drain-Source-Resistance of the product?
Q: The Rds-On-Drain-Source-Resistance of the product is 2.5 mOhms.
A: At what frequency does the Transistor-Polarity?
Q: The product Transistor-Polarity is N-Channel.
A: What is the Typical-Turn-Off-Delay-Time of the product?
Q: The Typical-Turn-Off-Delay-Time of the product is 98 ns.
A: At what frequency does the Typical-Turn-On-Delay-Time?
Q: The product Typical-Turn-On-Delay-Time is 56 ns.
A: At what frequency does the Qg-Gate-Charge?
Q: The product Qg-Gate-Charge is 193 nC.
