STP75N75F4

STP75N75F4 Overview

Product belongs to the N-channel STripFET series. Tube is the packaging method for this product Weight of 0.011640 oz Through Hole Mounting-Style TO-220-3 Si is the technology used. Number of channels: 1 Channel Transistor type: 1 N-Channel Power-off control: 150 W This product has a 14 ns of 16 ns. This product has a 33 ns of 16 ns. The ID of continuous drain current is 78 A. This product has a Vds-Drain-Source-Breakdown-Voltageof 75 V. This product has a 4 V Vgs-th gate-source threshold voltage for efficient power management. The 11 mOhms for this product is 12 Ohms. The transistor polarity is N-Channel. 'Typical-Turn-Off-Delay-Time' of 61 ns This product has a 25 ns. Qg-Gate-Charge is 76 nC. This product operates in Enhancement channel mode for optimal performance.

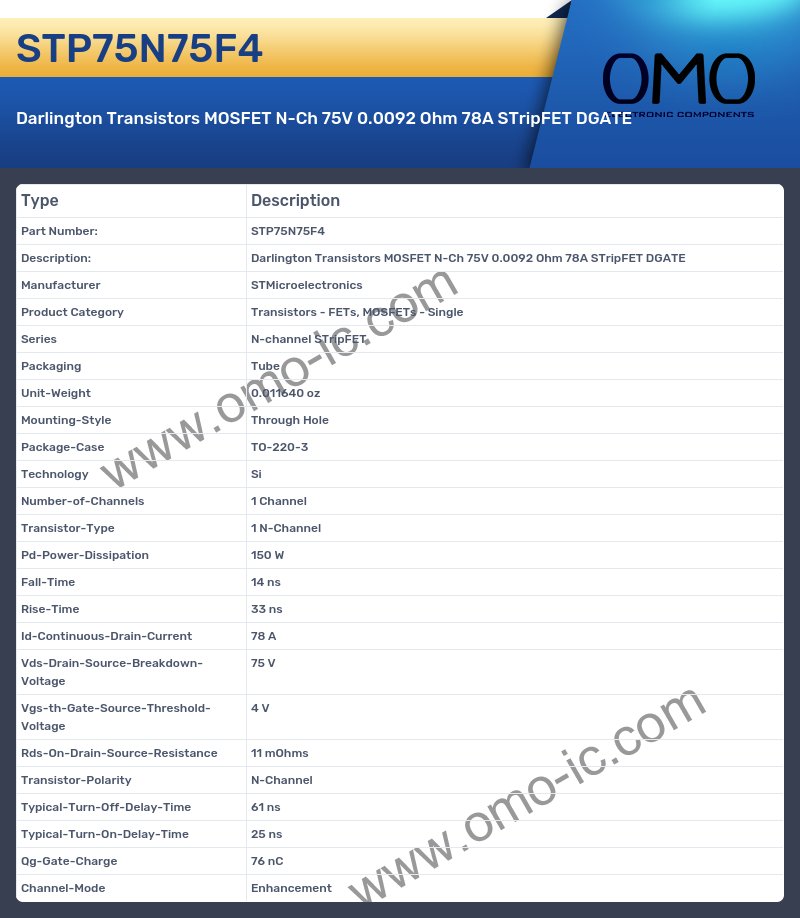

STP75N75F4 Image

STP75N75F4 Specifications

• Manufacturer STMicroelectronics
• Product Category Transistors - FETs, MOSFETs - Single
• Series N-channel STripFET
• Packaging Tube
• Unit-Weight 0.011640 oz
• Mounting-Style Through Hole
• Package-Case TO-220-3
• Technology Si
• Number-of-Channels 1 Channel
• Transistor-Type 1 N-Channel
• Pd-Power-Dissipation 150 W
• Fall-Time 14 ns
• Rise-Time 33 ns
• Id-Continuous-Drain-Current 78 A
• Vds-Drain-Source-Breakdown-Voltage 75 V
• Vgs-th-Gate-Source-Threshold-Voltage 4 V
• Rds-On-Drain-Source-Resistance 11 mOhms
• Transistor-Polarity N-Channel
• Typical-Turn-Off-Delay-Time 61 ns
• Typical-Turn-On-Delay-Time 25 ns
• Qg-Gate-Charge 76 nC
• Channel-Mode Enhancement
