STPS1545FP

STPS1545FP Overview

Product belongs to the STPS1545 series. This product is categorized as Schottky Rectifiers Tube is the packaging method for this product Weight of 0.090478 oz Through Hole Mounting-Style TO-220-2 Full Pack Si is the technology used. Through Hole mounting type Supplier device package: TO-220FPAC Configuration Single Operating frequency: Fast Recovery = 200mA (Io) Schottky diode type The 200μA @ 45V Current-Reverse-Leakage-Vr 1. Vf Max 840mV @ 30A is the Voltage-Forward; Maximum DC reverse voltage 45V The 15A Current-Average-Rectified-Io; The capacitance value of this product is - for maximum efficiency. Operating-Temperature-Junction: 175°C (Max) Maximum operating temperature of + 175 C Minimum operating temperature: - 65 C Vf-Forward-Voltage: 0.84 V at 30 A Ir-Reverse-Current is 200 uA. If-Forward-Current is 15 A. VRRM (45 V) Reverse Voltage 220 A IFSM Forward Surge Current

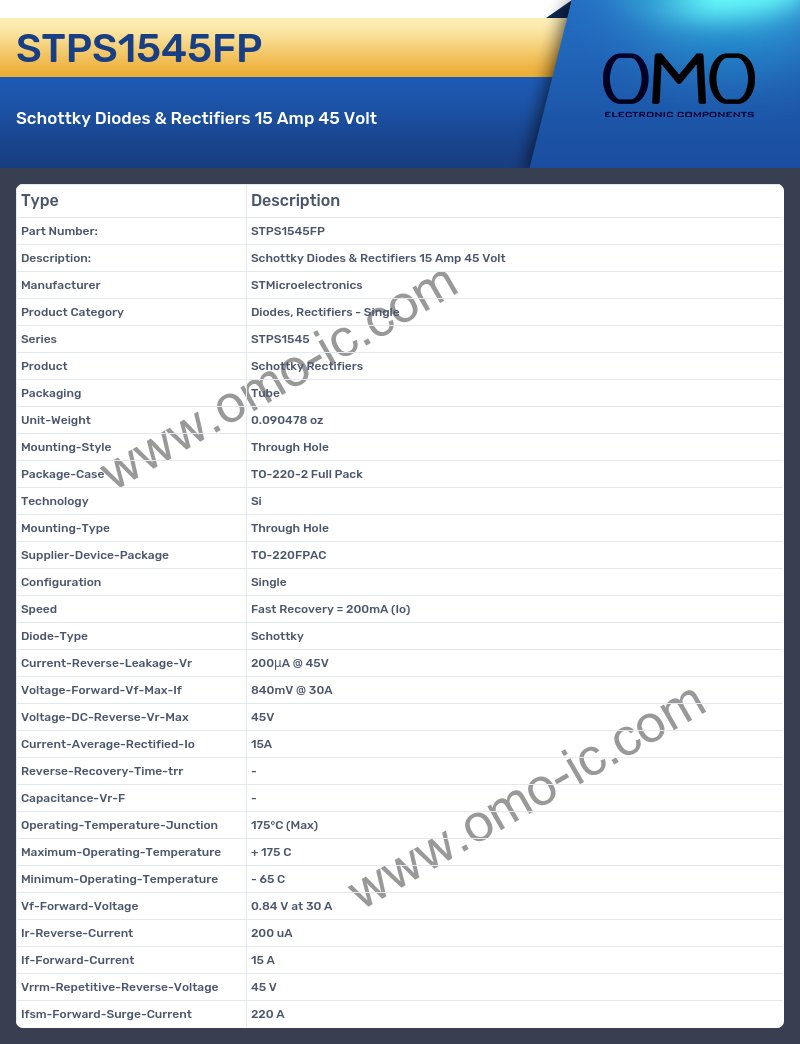

STPS1545FP Image

STPS1545FP Specifications

• Manufacturer STMicroelectronics
• Product Category Diodes, Rectifiers - Single
• Series STPS1545
• Product Schottky Rectifiers
• Packaging Tube
• Unit-Weight 0.090478 oz
• Mounting-Style Through Hole
• Package-Case TO-220-2 Full Pack
• Technology Si
• Mounting-Type Through Hole
• Supplier-Device-Package TO-220FPAC
• Configuration Single
• Speed Fast Recovery = 200mA (Io)
• Diode-Type Schottky
• Current-Reverse-Leakage-Vr 200μA @ 45V
• Voltage-Forward-Vf-Max-If 840mV @ 30A
• Voltage-DC-Reverse-Vr-Max 45V
• Current-Average-Rectified-Io 15A
• Reverse-Recovery-Time-trr -
• Capacitance-Vr-F -
• Operating-Temperature-Junction 175°C (Max)
• Maximum-Operating-Temperature + 175 C
• Minimum-Operating-Temperature - 65 C
• Vf-Forward-Voltage 0.84 V at 30 A
• Ir-Reverse-Current 200 uA
• If-Forward-Current 15 A
• Vrrm-Repetitive-Reverse-Voltage 45 V
• Ifsm-Forward-Surge-Current 220 A
