Product belongs to the STPS1L60MF series. This product is categorized as Schottky Rectifiers Digi-ReelR Alternate Packaging is the packaging method for this product SMD/SMT Mounting-Style DO-222AA Si is the technology used. Surface Mount mounting type Supplier device package: DO222-AA Configuration Single Operating frequency: Fast Recovery = 200mA (Io) Schottky diode type The 50μA @ 60V Current-Reverse-Leakage-Vr 1. Vf Max 570mV @ 1A is the Voltage-Forward; Maximum DC reverse voltage 60V The 1A Current-Average-Rectified-Io; The capacitance value of this product is - for maximum efficiency. Operating-Temperature-Junction: 150°C (Max) Power-off control: - Maximum operating temperature of + 150 C Minimum operating temperature: - Vf-Forward-Voltage: 570 mV VR Reverse Voltage of 60 V Ir-Reverse-Current is 50 uA. If-Forward-Current is 1 A. VRRM (60 V) Reverse Voltage 40 A IFSM Forward Surge Current The - TRR-Reverse-Recovery-time

STPS1L60MF Image

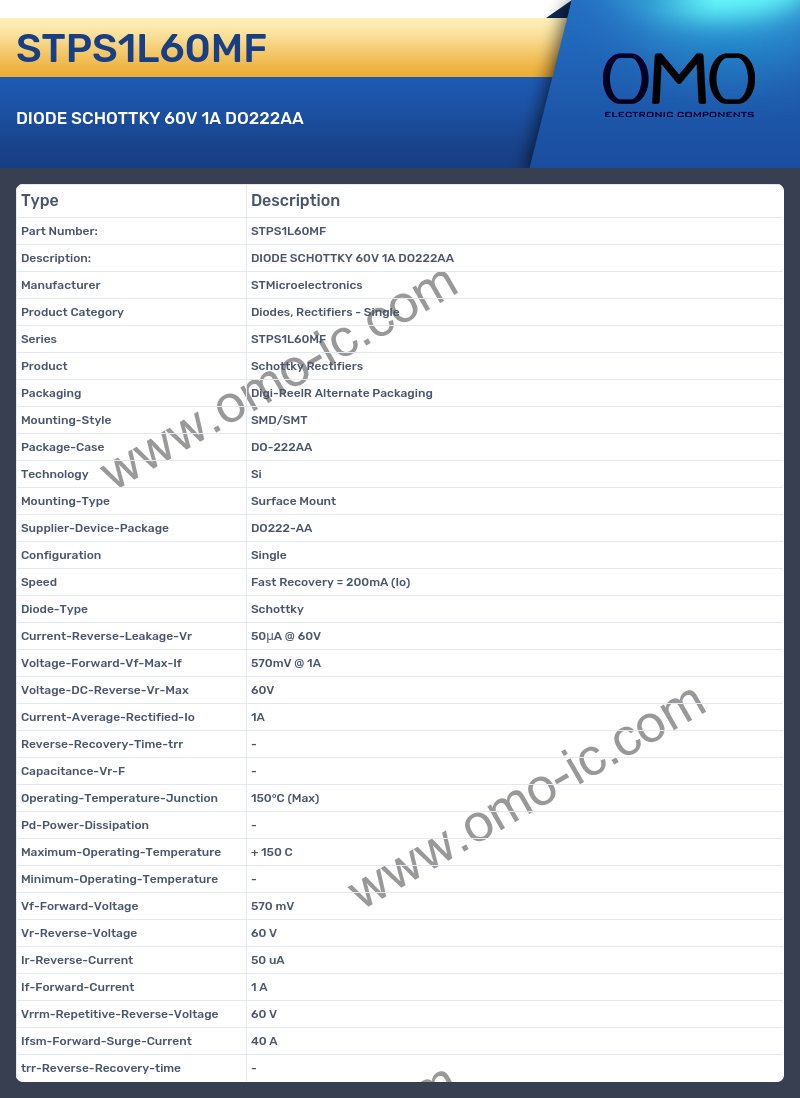

STPS1L60MF Specifications

• Manufacturer STMicroelectronics
• Product Category Diodes, Rectifiers - Single
• Series STPS1L60MF
• Product Schottky Rectifiers
• Packaging Digi-ReelR Alternate Packaging
• Mounting-Style SMD/SMT
• Package-Case DO-222AA
• Technology Si
• Mounting-Type Surface Mount
• Supplier-Device-Package DO222-AA
• Configuration Single
• Speed Fast Recovery = 200mA (Io)
• Diode-Type Schottky
• Current-Reverse-Leakage-Vr 50μA @ 60V
• Voltage-Forward-Vf-Max-If 570mV @ 1A
• Voltage-DC-Reverse-Vr-Max 60V
• Current-Average-Rectified-Io 1A
• Reverse-Recovery-Time-trr -
• Capacitance-Vr-F -
• Operating-Temperature-Junction 150°C (Max)
• Pd-Power-Dissipation -
• Maximum-Operating-Temperature + 150 C
• Minimum-Operating-Temperature -
• Vf-Forward-Voltage 570 mV
• Vr-Reverse-Voltage 60 V
• Ir-Reverse-Current 50 uA
• If-Forward-Current 1 A
• Vrrm-Repetitive-Reverse-Voltage 60 V
• Ifsm-Forward-Surge-Current 40 A
• trr-Reverse-Recovery-time -
