STPS20L15G-TR

STPS20L15G-TR Overview

Product belongs to the STPS20L15 series. This product is categorized as Schottky Diodes Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.070548 oz SMD/SMT Mounting-Style TO-263-3, D2Pak (2 Leads + Tab), TO-263AB Si is the technology used. Surface Mount mounting type Supplier device package: D2PAK Configuration Single Operating frequency: Fast Recovery = 200mA (Io) Schottky diode type The 6mA @ 15V Current-Reverse-Leakage-Vr 1. Vf Max 410mV @ 19A is the Voltage-Forward; Maximum DC reverse voltage 15V The 20A Current-Average-Rectified-Io; The capacitance value of this product is - for maximum efficiency. Operating-Temperature-Junction: 125°C (Max) Maximum operating temperature of + 125 C Minimum operating temperature: - 65 C Vf-Forward-Voltage: 0.52 V at 40 A Ir-Reverse-Current is 6 mA. If-Forward-Current is 20 A. VRRM (15 V) Reverse Voltage 310 A IFSM Forward Surge Current

STPS20L15G-TR Image

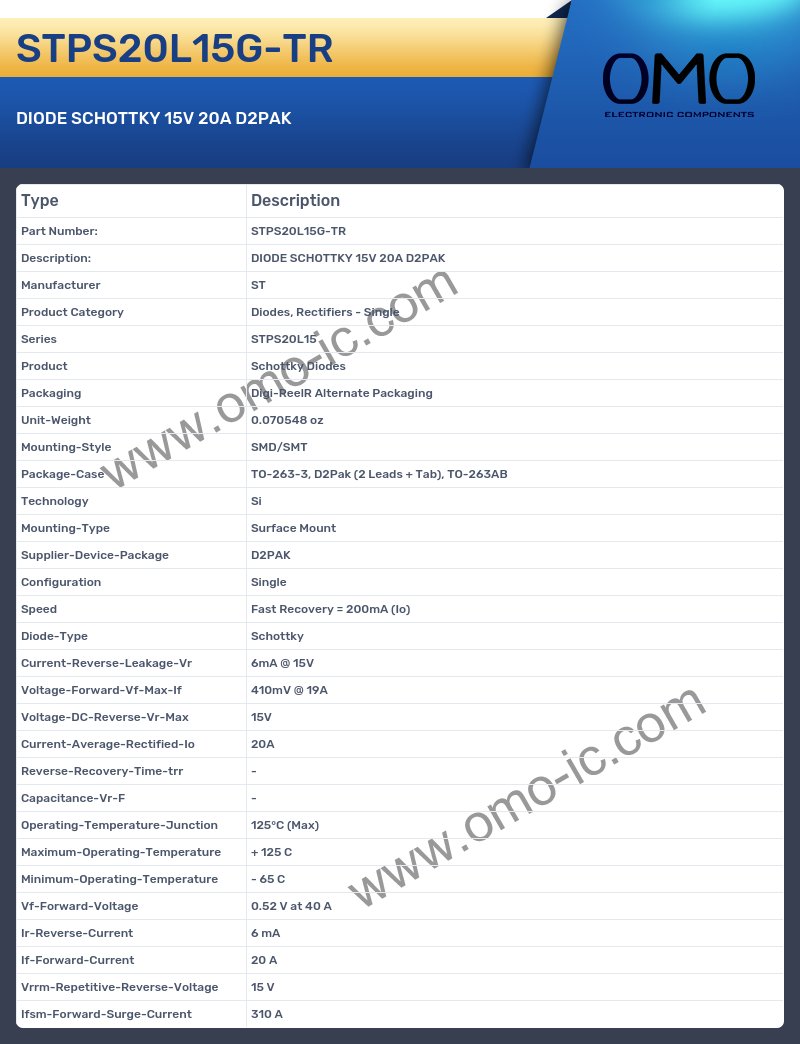

STPS20L15G-TR Specifications

• Manufacturer ST
• Product Category Diodes, Rectifiers - Single
• Series STPS20L15
• Product Schottky Diodes
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.070548 oz
• Mounting-Style SMD/SMT
• Package-Case TO-263-3, D2Pak (2 Leads + Tab), TO-263AB
• Technology Si
• Mounting-Type Surface Mount
• Supplier-Device-Package D2PAK
• Configuration Single
• Speed Fast Recovery = 200mA (Io)
• Diode-Type Schottky
• Current-Reverse-Leakage-Vr 6mA @ 15V
• Voltage-Forward-Vf-Max-If 410mV @ 19A
• Voltage-DC-Reverse-Vr-Max 15V
• Current-Average-Rectified-Io 20A
• Reverse-Recovery-Time-trr -
• Capacitance-Vr-F -
• Operating-Temperature-Junction 125°C (Max)
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 65 C
• Vf-Forward-Voltage 0.52 V at 40 A
• Ir-Reverse-Current 6 mA
• If-Forward-Current 20 A
• Vrrm-Repetitive-Reverse-Voltage 15 V
• Ifsm-Forward-Surge-Current 310 A
