STPS20M60D

STPS20M60D Overview

Product belongs to the STPS20M60 series. This product is categorized as Schottky Rectifiers Tube is the packaging method for this product Weight of 0.063493 oz Through Hole Mounting-Style TO-220-2 Si is the technology used. Through Hole mounting type Supplier device package: TO-220AC Configuration Single Operating frequency: Fast Recovery = 200mA (Io) Schottky diode type The 125μA @ 60V Current-Reverse-Leakage-Vr 1. Vf Max 580mV @ 20A is the Voltage-Forward; Maximum DC reverse voltage 60V The 20A Current-Average-Rectified-Io; The capacitance value of this product is - for maximum efficiency. Operating-Temperature-Junction: 150°C (Max) Vf-Forward-Voltage: 0.58 V Ir-Reverse-Current is 125 uA. If-Forward-Current is 60 A. VRRM (60 V) Reverse Voltage 400 A IFSM Forward Surge Current

STPS20M60D Image

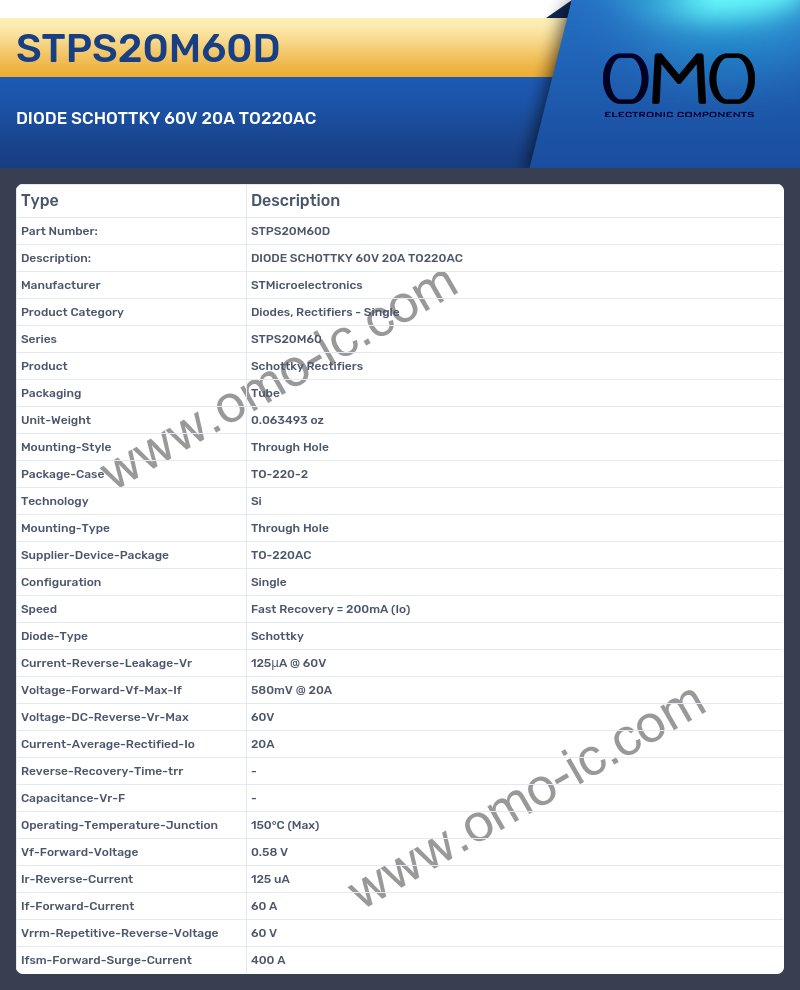

STPS20M60D Specifications

• Manufacturer STMicroelectronics
• Product Category Diodes, Rectifiers - Single
• Series STPS20M60
• Product Schottky Rectifiers
• Packaging Tube
• Unit-Weight 0.063493 oz
• Mounting-Style Through Hole
• Package-Case TO-220-2
• Technology Si
• Mounting-Type Through Hole
• Supplier-Device-Package TO-220AC
• Configuration Single
• Speed Fast Recovery = 200mA (Io)
• Diode-Type Schottky
• Current-Reverse-Leakage-Vr 125μA @ 60V
• Voltage-Forward-Vf-Max-If 580mV @ 20A
• Voltage-DC-Reverse-Vr-Max 60V
• Current-Average-Rectified-Io 20A
• Reverse-Recovery-Time-trr -
• Capacitance-Vr-F -
• Operating-Temperature-Junction 150°C (Max)
• Vf-Forward-Voltage 0.58 V
• Ir-Reverse-Current 125 uA
• If-Forward-Current 60 A
• Vrrm-Repetitive-Reverse-Voltage 60 V
• Ifsm-Forward-Surge-Current 400 A
