| 説明: | Schottky Diodes & Rectifiers RECTIFIER |
| ライフサイクル: | メーカー新製品 |
| データシート: | STPS2H100AF データシート |
Product belongs to the Automotive, AEC-Q101 series. This product is categorized as Schottky Rectifiers Tape & Reel (TR) is the packaging method for this product SMD/SMT Mounting-Style DO-214AC, SMA Flat Leads Si is the technology used. Surface Mount mounting type Supplier device package: SMAflat Configuration Single Operating frequency: Fast Recovery = 200mA (Io) Schottky diode type The 1μA @ 100V Current-Reverse-Leakage-Vr 1. Vf Max 790mV @ 2A is the Voltage-Forward; Maximum DC reverse voltage 100V The 2A Current-Average-Rectified-Io; The capacitance value of this product is - for maximum efficiency. Operating-Temperature-Junction: -65°C ~ 175°C Maximum operating temperature of + 175 C Minimum operating temperature: - 65 C Vf-Forward-Voltage: 0.69 V Ir-Reverse-Current is 0.4 mA. If-Forward-Current is 2 A. VRRM (100 V) Reverse Voltage 75 A IFSM Forward Surge Current
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

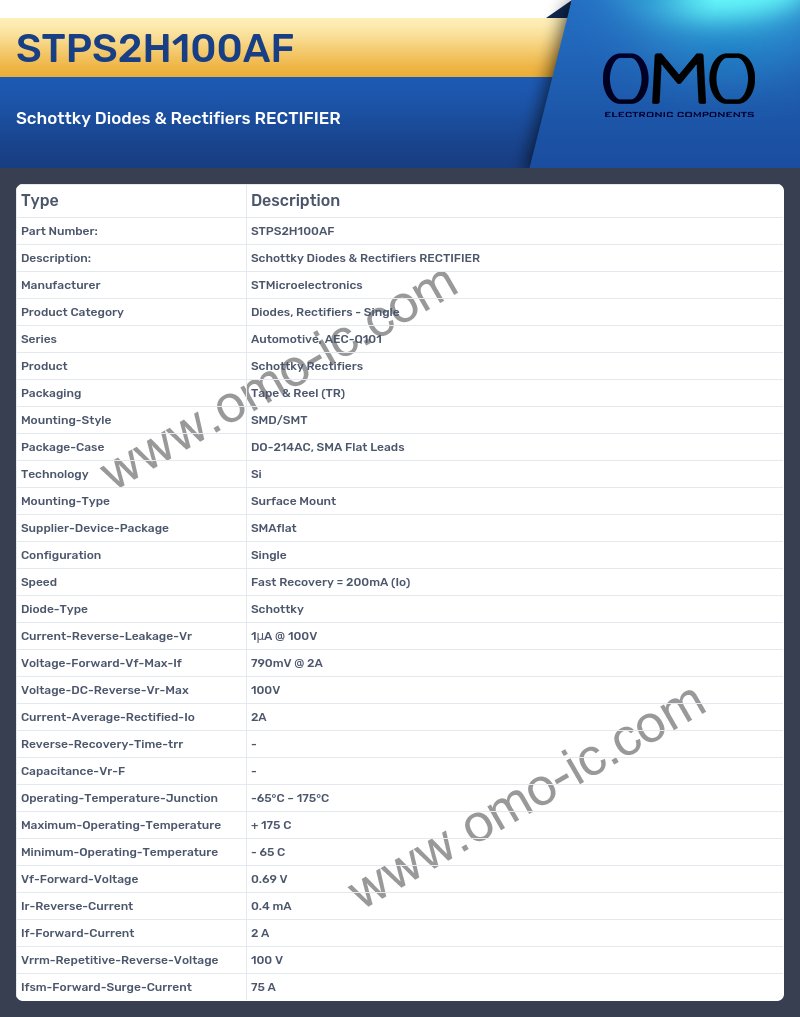

STPS2H100AF Specifications
