STPS30SM60SG-TR

STPS30SM60SG-TR Overview

Product belongs to the STPS30SM60S series. This product is categorized as Schottky Rectifiers Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.066315 oz SMD/SMT Mounting-Style TO-263-3, D2Pak (2 Leads + Tab), TO-263AB Si is the technology used. Surface Mount mounting type Supplier device package: D2PAK Configuration Single Dual Anode Operating frequency: Fast Recovery = 200mA (Io) Schottky diode type The 135μA @ 60V Current-Reverse-Leakage-Vr 1. Vf Max 615mV @ 30A is the Voltage-Forward; Maximum DC reverse voltage 60V The 30A Current-Average-Rectified-Io; The capacitance value of this product is - for maximum efficiency. Operating-Temperature-Junction: 150°C (Max) Maximum operating temperature of + 150 C Minimum operating temperature: - 40 C Vf-Forward-Voltage: 0.56 V Ir-Reverse-Current is 135 uA. If-Forward-Current is 90 A. VRRM (60 V) Reverse Voltage 600 A IFSM Forward Surge Current

STPS30SM60SG-TR Image

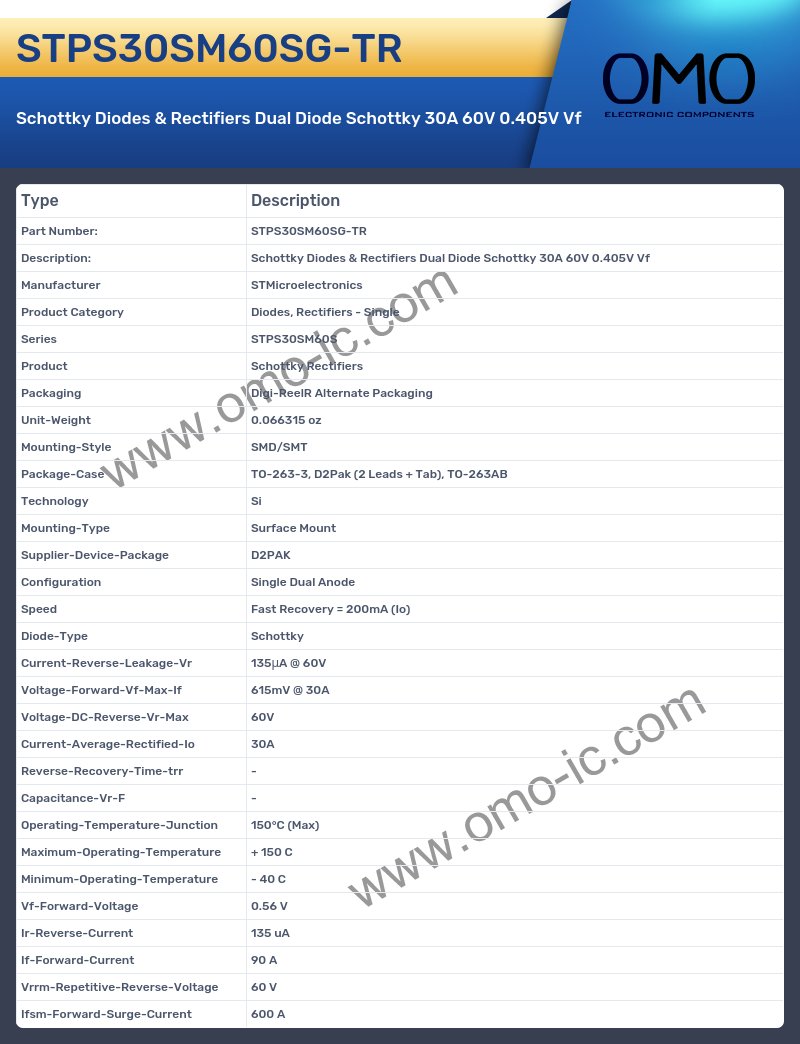

STPS30SM60SG-TR Specifications

• Manufacturer STMicroelectronics
• Product Category Diodes, Rectifiers - Single
• Series STPS30SM60S
• Product Schottky Rectifiers
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.066315 oz
• Mounting-Style SMD/SMT
• Package-Case TO-263-3, D2Pak (2 Leads + Tab), TO-263AB
• Technology Si
• Mounting-Type Surface Mount
• Supplier-Device-Package D2PAK
• Configuration Single Dual Anode
• Speed Fast Recovery = 200mA (Io)
• Diode-Type Schottky
• Current-Reverse-Leakage-Vr 135μA @ 60V
• Voltage-Forward-Vf-Max-If 615mV @ 30A
• Voltage-DC-Reverse-Vr-Max 60V
• Current-Average-Rectified-Io 30A
• Reverse-Recovery-Time-trr -
• Capacitance-Vr-F -
• Operating-Temperature-Junction 150°C (Max)
• Maximum-Operating-Temperature + 150 C
• Minimum-Operating-Temperature - 40 C
• Vf-Forward-Voltage 0.56 V
• Ir-Reverse-Current 135 uA
• If-Forward-Current 90 A
• Vrrm-Repetitive-Reverse-Voltage 60 V
• Ifsm-Forward-Surge-Current 600 A
