STPS745G-TR

STPS745G-TR Overview

Product belongs to the STPS745 series. This product is categorized as Schottky Rectifiers Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.070548 oz SMD/SMT Mounting-Style TO-263-3, D2Pak (2 Leads + Tab), TO-263AB Si is the technology used. Surface Mount mounting type Supplier device package: D2PAK Configuration Single Operating frequency: Fast Recovery = 200mA (Io) Schottky diode type The 100μA @ 45V Current-Reverse-Leakage-Vr 1. Vf Max 840mV @ 15A is the Voltage-Forward; Maximum DC reverse voltage 45V The 7.5A Current-Average-Rectified-Io; The capacitance value of this product is - for maximum efficiency. Operating-Temperature-Junction: 175°C (Max) Maximum operating temperature of + 175 C Minimum operating temperature: - 65 C Vf-Forward-Voltage: 0.84 V at 15 A Ir-Reverse-Current is 100 uA. If-Forward-Current is 7.5 A. VRRM (45 V) Reverse Voltage 150 A IFSM Forward Surge Current

STPS745G-TR Image

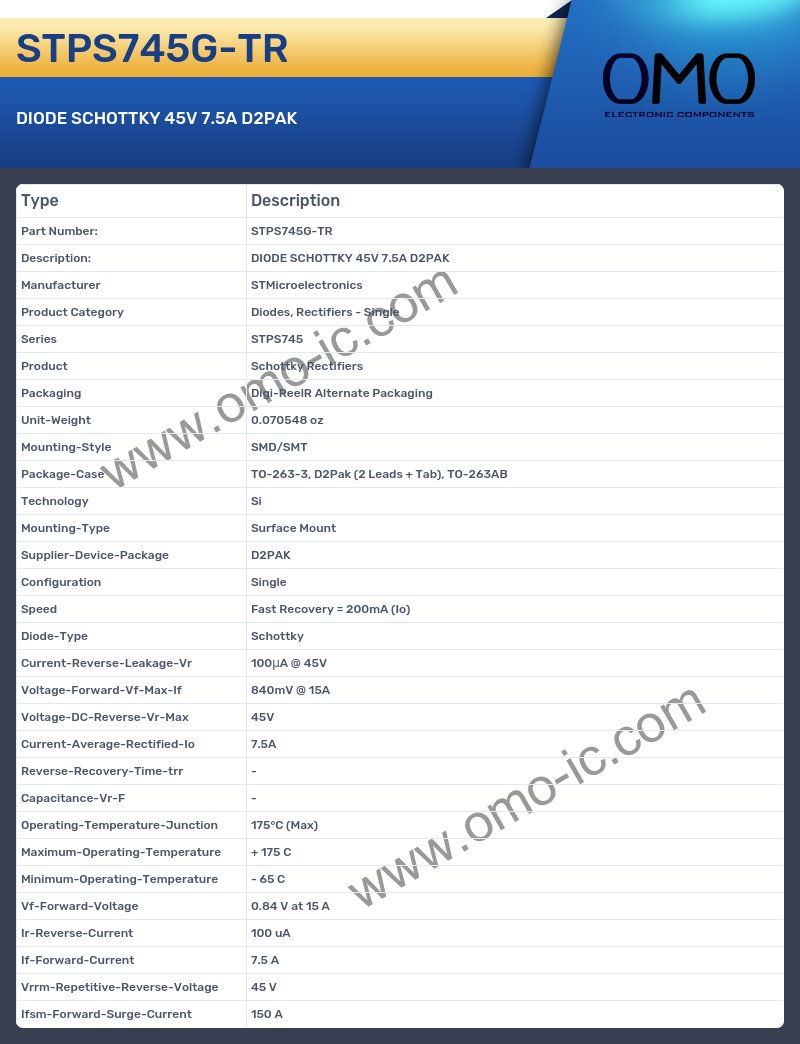

STPS745G-TR Specifications

• Manufacturer STMicroelectronics
• Product Category Diodes, Rectifiers - Single
• Series STPS745
• Product Schottky Rectifiers
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.070548 oz
• Mounting-Style SMD/SMT
• Package-Case TO-263-3, D2Pak (2 Leads + Tab), TO-263AB
• Technology Si
• Mounting-Type Surface Mount
• Supplier-Device-Package D2PAK
• Configuration Single
• Speed Fast Recovery = 200mA (Io)
• Diode-Type Schottky
• Current-Reverse-Leakage-Vr 100μA @ 45V
• Voltage-Forward-Vf-Max-If 840mV @ 15A
• Voltage-DC-Reverse-Vr-Max 45V
• Current-Average-Rectified-Io 7.5A
• Reverse-Recovery-Time-trr -
• Capacitance-Vr-F -
• Operating-Temperature-Junction 175°C (Max)
• Maximum-Operating-Temperature + 175 C
• Minimum-Operating-Temperature - 65 C
• Vf-Forward-Voltage 0.84 V at 15 A
• Ir-Reverse-Current 100 uA
• If-Forward-Current 7.5 A
• Vrrm-Repetitive-Reverse-Voltage 45 V
• Ifsm-Forward-Surge-Current 150 A
