STPS80L15CY

STPS80L15CY Overview

Product belongs to the - series. Tube is the packaging method for this product Product Obsolete 1 Pair Common Cathode Diode Configuration. Schottky Diode Type Maximum DC Reverse Voltage (Vr) of 15V The 40A Current - Average Rectified (Io) (per Diode). Voltage - Forward (Vf) (Max) with value of 420mV @ 40A Operating frequency: Fast Recovery =< 500ns, > 200mA (Io) 16mA @ 15V Current-Reverse Leakage Operating Temperature - Junction has a 125°C (Max) Limit. This product has a Through Hole. Package type is TO-247-3 The supplier device package for this product is MAX247. * is the base part number.

STPS80L15CY Image

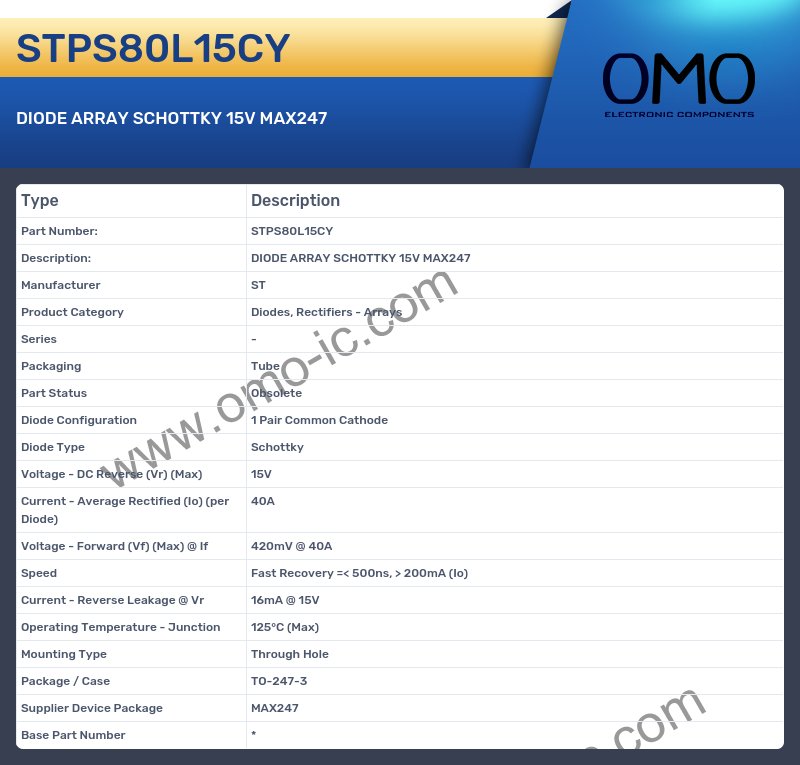

STPS80L15CY Specifications

• Manufacturer ST
• Product Category Diodes, Rectifiers - Arrays
• Series -
• Packaging Tube
• Part Status Obsolete
• Diode Configuration 1 Pair Common Cathode
• Diode Type Schottky
• Voltage - DC Reverse (Vr) (Max) 15V
• Current - Average Rectified (Io) (per Diode) 40A
• Voltage - Forward (Vf) (Max) @ If 420mV @ 40A
• Speed Fast Recovery =< 500ns, > 200mA (Io)
• Current - Reverse Leakage @ Vr 16mA @ 15V
• Operating Temperature - Junction 125°C (Max)
• Mounting Type Through Hole
• Package / Case TO-247-3
• Supplier Device Package MAX247
• Base Part Number *
