STPS8L30B

STPS8L30B Overview

Product belongs to the STPS8L30 series. This product is categorized as Schottky Rectifiers Tube Alternate Packaging is the packaging method for this product Weight of 0.009185 oz SMD/SMT Mounting-Style TO-252-3, DPak (2 Leads + Tab), SC-63 Si is the technology used. Surface Mount mounting type Supplier device package: D-Pak Configuration Single Operating frequency: Fast Recovery = 200mA (Io) Schottky diode type The 1mA @ 30V Current-Reverse-Leakage-Vr 1. Vf Max 490mV @ 8A is the Voltage-Forward; Maximum DC reverse voltage 30V The 8A Current-Average-Rectified-Io; The capacitance value of this product is - for maximum efficiency. Operating-Temperature-Junction: 150°C (Max) Maximum operating temperature of + 150 C Minimum operating temperature: - 65 C Vf-Forward-Voltage: 0.63 V at 16 A Ir-Reverse-Current is 1000 uA. If-Forward-Current is 8 A. VRRM (30 V) Reverse Voltage 75 A IFSM Forward Surge Current

STPS8L30B Image

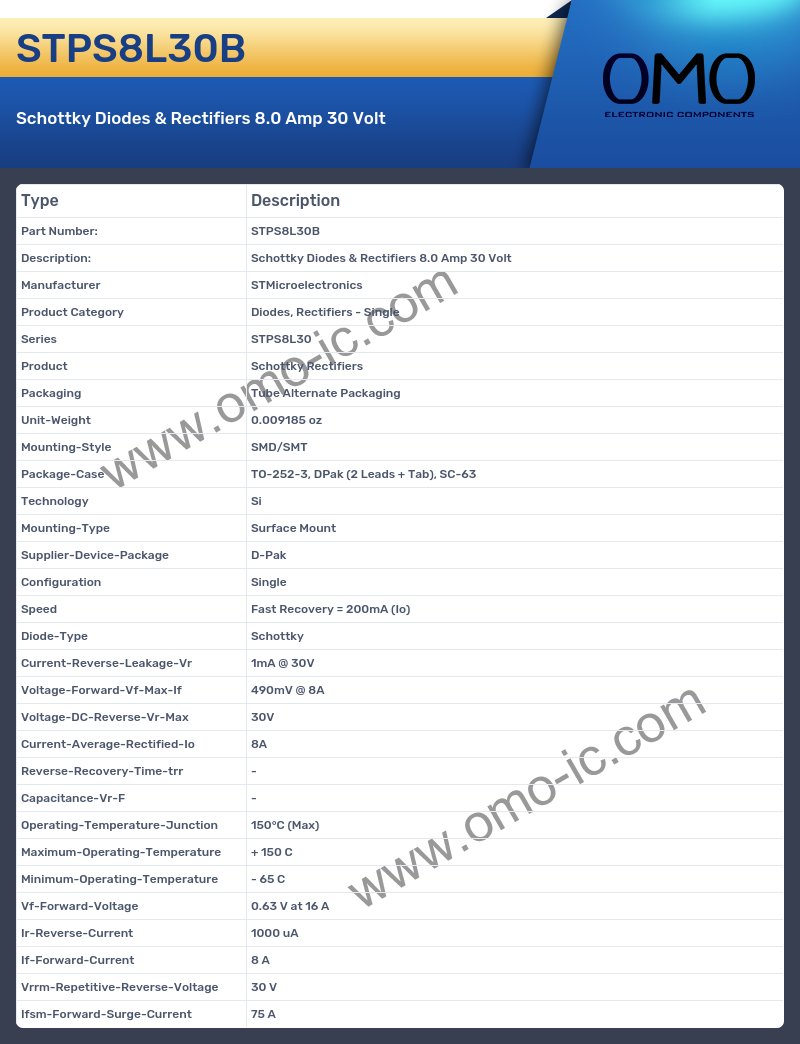

STPS8L30B Specifications

• Manufacturer STMicroelectronics
• Product Category Diodes, Rectifiers - Single
• Series STPS8L30
• Product Schottky Rectifiers
• Packaging Tube Alternate Packaging
• Unit-Weight 0.009185 oz
• Mounting-Style SMD/SMT
• Package-Case TO-252-3, DPak (2 Leads + Tab), SC-63
• Technology Si
• Mounting-Type Surface Mount
• Supplier-Device-Package D-Pak
• Configuration Single
• Speed Fast Recovery = 200mA (Io)
• Diode-Type Schottky
• Current-Reverse-Leakage-Vr 1mA @ 30V
• Voltage-Forward-Vf-Max-If 490mV @ 8A
• Voltage-DC-Reverse-Vr-Max 30V
• Current-Average-Rectified-Io 8A
• Reverse-Recovery-Time-trr -
• Capacitance-Vr-F -
• Operating-Temperature-Junction 150°C (Max)
• Maximum-Operating-Temperature + 150 C
• Minimum-Operating-Temperature - 65 C
• Vf-Forward-Voltage 0.63 V at 16 A
• Ir-Reverse-Current 1000 uA
• If-Forward-Current 8 A
• Vrrm-Repetitive-Reverse-Voltage 30 V
• Ifsm-Forward-Surge-Current 75 A
