STS1TXQTR Overview

Product belongs to the STS1TX series. Type: RF Transmitter Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.004339 oz SMD/SMT Mounting-Style QFN-20 This product's 169MHz, 315MHz, 433MHz, 868MHz, 915MHz range is 0Hz to 2.2GHz. Operational temperature range: -40°C ~ 85°C Versatile Home/Building Automation, Industrial Control and Monitoring applications for maximum usability Voltage Supply Range: 1.8 V ~ 3.6 V This product comes with a - memory size. Data-Interface: PCB, Surface Mount Data rate maximum is 500kbps . 16dBm 21mA range: 8.7mA to 32.1mA Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C This product operates at a 3 V supply voltage for reliable performance. 400 uA is 92 nA. The operating frequency is 1 GHz. Maximum supply voltage of 3.6 V Minimum supply voltage is 1.8 V ASK OOK are the supported modulation formats.

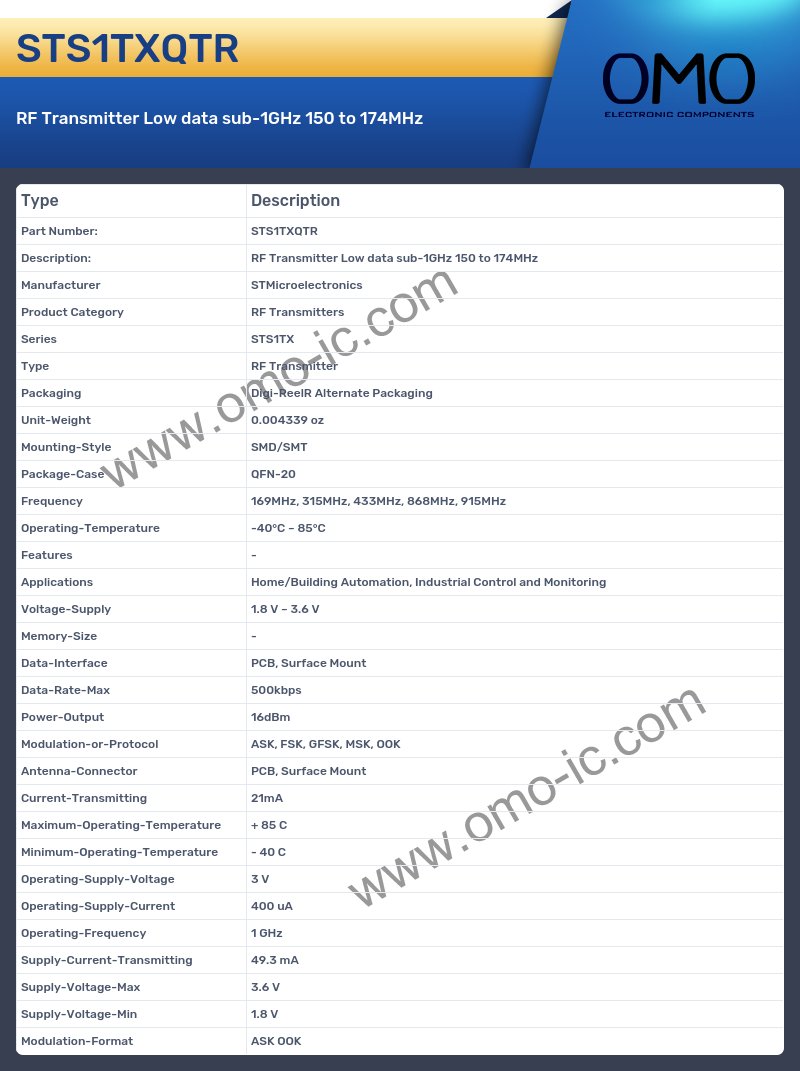

STS1TXQTR Image

STS1TXQTR Specifications

• Manufacturer STMicroelectronics
• Product Category RF Transmitters
• Series STS1TX
• Type RF Transmitter
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.004339 oz
• Mounting-Style SMD/SMT
• Package-Case QFN-20
• Frequency 169MHz, 315MHz, 433MHz, 868MHz, 915MHz
• Operating-Temperature -40°C ~ 85°C
• Features -
• Applications Home/Building Automation, Industrial Control and Monitoring
• Voltage-Supply 1.8 V ~ 3.6 V
• Memory-Size -
• Data-Interface PCB, Surface Mount
• Data-Rate-Max 500kbps
• Power-Output 16dBm
• Modulation-or-Protocol ASK, FSK, GFSK, MSK, OOK
• Antenna-Connector PCB, Surface Mount
• Current-Transmitting 21mA
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Voltage 3 V
• Operating-Supply-Current 400 uA
• Operating-Frequency 1 GHz
• Supply-Current-Transmitting 49.3 mA
• Supply-Voltage-Max 3.6 V
• Supply-Voltage-Min 1.8 V
• Modulation-Format ASK OOK
