| Mfr. #: | STS5DNF60L |
|---|---|
| メーカー: | STMicroelectronics |
| 説明: | MOSFET 2N-CH 60V 5A 8-SOIC |
| ライフサイクル: | メーカー新製品 |
| データシート: | STS5DNF60L データシート |
Product belongs to the STripFET II series. Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.017870 oz SMD/SMT Mounting-Style 8-SOIC (0.154", 3.90mm Width) Si is the technology used. Operational temperature range: -55°C ~ 150°C (TJ) Surface Mount mounting type Number of channels: 2 Channel Supplier device package: 8-SO Configuration Dual This product uses an 2 N-Channel (Dual) FET-Type transistor. Transistor type: 2 N-Channel 60V This product has an 1030pF @ 25V value of 300pF @ 25V. This product's Logic Level Gate. 5A continuous drain-ID current at 25°C; This product has an 45 mOhm @ 2A, 10V of 12 Ohm @ 150mA, 0V. Power-off control: 2 W Maximum operating temperature of + 150 C Minimum operating temperature: - 55 C This product has a 10 ns of 16 ns. This product has a 28 ns of 16 ns. This product's 15 V. The ID of continuous drain current is 5 A. This product has a Vds-Drain-Source-Breakdown-Voltageof 60 V. This product has a 1.7 V Vgs-th gate-source threshold voltage for efficient power management. The 45 mOhms for this product is 12 Ohms. The transistor polarity is N-Channel. 'Typical-Turn-Off-Delay-Time' of 45 ns This product has a 15 ns. Qg-Gate-Charge is 15 nC. This product features a 25 S of 500 S for high performance.
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

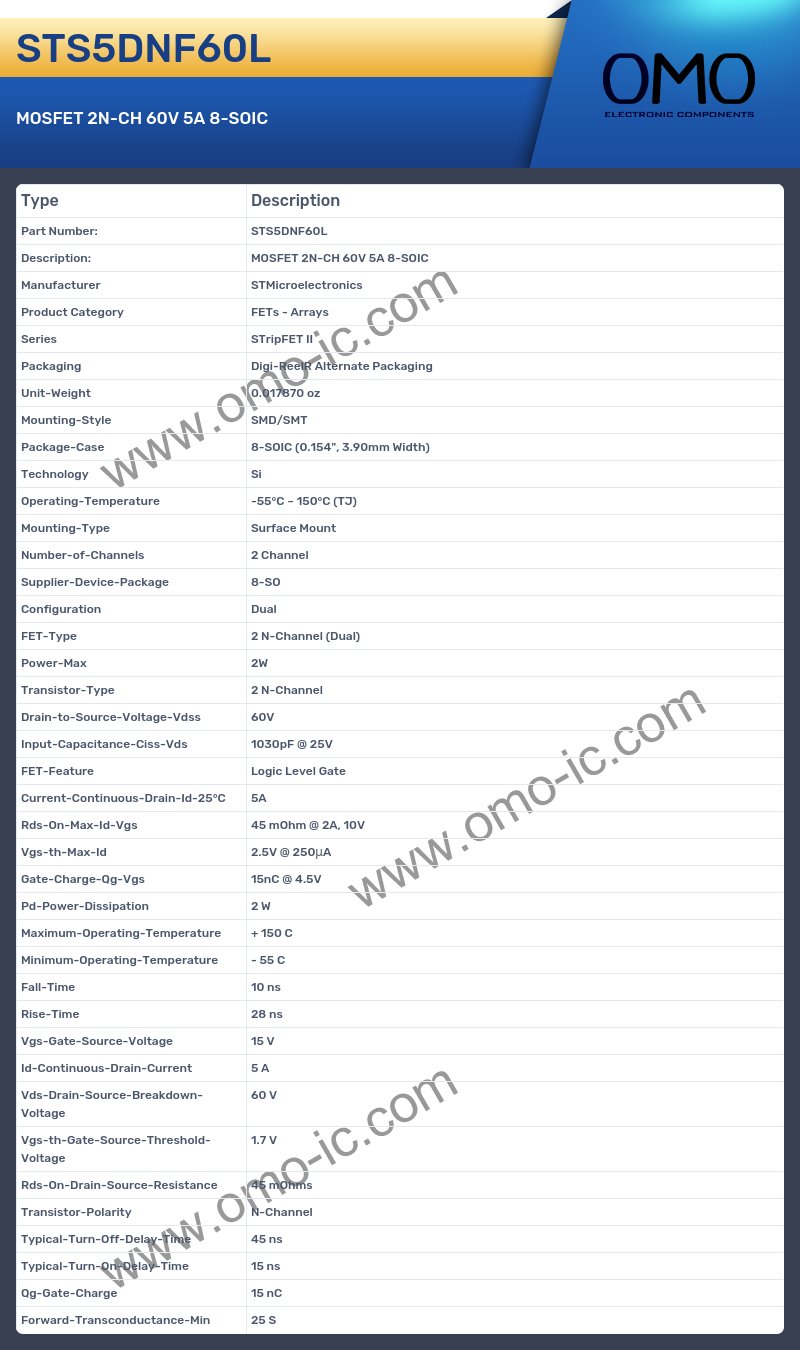

STS5DNF60L Specifications
A: What is the Series of the product?
Q: The Series of the product is STripFET II.
A: At what frequency does the Packaging?
Q: The product Packaging is Digi-ReelR Alternate Packaging.
A: Is the cutoff frequency of the product Unit-Weight?
Q: Yes, the product's Unit-Weight is indeed 0.017870 oz
A: What is the Mounting-Style of the product?
Q: The Mounting-Style of the product is SMD/SMT.
A: What is the Package-Case of the product?
Q: The Package-Case of the product is 8-SOIC (0.154", 3.90mm Width).
A: What is the Technology of the product?
Q: The Technology of the product is Si.
A: At what frequency does the Operating-Temperature?
Q: The product Operating-Temperature is -55°C ~ 150°C (TJ).
A: What is the Mounting-Type of the product?
Q: The Mounting-Type of the product is Surface Mount.
A: What is the Number-of-Channels of the product?
Q: The Number-of-Channels of the product is 2 Channel.
A: Is the cutoff frequency of the product Supplier-Device-Package?
Q: Yes, the product's Supplier-Device-Package is indeed 8-SO
A: Is the cutoff frequency of the product Configuration?
Q: Yes, the product's Configuration is indeed Dual
A: Is the cutoff frequency of the product FET-Type?
Q: Yes, the product's FET-Type is indeed 2 N-Channel (Dual)
A: Is the cutoff frequency of the product Transistor-Type?
Q: Yes, the product's Transistor-Type is indeed 2 N-Channel
A: At what frequency does the Drain-to-Source-Voltage-Vdss?
Q: The product Drain-to-Source-Voltage-Vdss is 60V.
A: What is the Input-Capacitance-Ciss-Vds of the product?
Q: The Input-Capacitance-Ciss-Vds of the product is 1030pF @ 25V.
A: At what frequency does the FET-Feature?
Q: The product FET-Feature is Logic Level Gate.
A: At what frequency does the Current-Continuous-Drain-Id-25°C?
Q: The product Current-Continuous-Drain-Id-25°C is 5A.
A: At what frequency does the Rds-On-Max-Id-Vgs?
Q: The product Rds-On-Max-Id-Vgs is 45 mOhm @ 2A, 10V.
A: At what frequency does the Pd-Power-Dissipation?
Q: The product Pd-Power-Dissipation is 2 W.
A: Is the cutoff frequency of the product Maximum-Operating-Temperature?
Q: Yes, the product's Maximum-Operating-Temperature is indeed + 150 C
A: Is the cutoff frequency of the product Minimum-Operating-Temperature?
Q: Yes, the product's Minimum-Operating-Temperature is indeed - 55 C
A: What is the Fall-Time of the product?
Q: The Fall-Time of the product is 10 ns.
A: Is the cutoff frequency of the product Rise-Time?
Q: Yes, the product's Rise-Time is indeed 28 ns
A: Is the cutoff frequency of the product Vgs-Gate-Source-Voltage?
Q: Yes, the product's Vgs-Gate-Source-Voltage is indeed 15 V
A: Is the cutoff frequency of the product Id-Continuous-Drain-Current?
Q: Yes, the product's Id-Continuous-Drain-Current is indeed 5 A
A: What is the Vds-Drain-Source-Breakdown-Voltage of the product?
Q: The Vds-Drain-Source-Breakdown-Voltage of the product is 60 V.
A: At what frequency does the Vgs-th-Gate-Source-Threshold-Voltage?
Q: The product Vgs-th-Gate-Source-Threshold-Voltage is 1.7 V.
A: Is the cutoff frequency of the product Rds-On-Drain-Source-Resistance?
Q: Yes, the product's Rds-On-Drain-Source-Resistance is indeed 45 mOhms
A: At what frequency does the Transistor-Polarity?
Q: The product Transistor-Polarity is N-Channel.
A: What is the Typical-Turn-Off-Delay-Time of the product?
Q: The Typical-Turn-Off-Delay-Time of the product is 45 ns.
A: What is the Typical-Turn-On-Delay-Time of the product?
Q: The Typical-Turn-On-Delay-Time of the product is 15 ns.
A: Is the cutoff frequency of the product Qg-Gate-Charge?
Q: Yes, the product's Qg-Gate-Charge is indeed 15 nC
A: What is the Forward-Transconductance-Min of the product?
Q: The Forward-Transconductance-Min of the product is 25 S.
