| Mfr. #: | STT818B |
|---|---|
| メーカー: | STMicroelectronics |
| 説明: | Bipolar Transistors - BJT PNP Lo-Volt Hi-Gain |
| ライフサイクル: | メーカー新製品 |
| データシート: | STT818B データシート |
Product belongs to the 500V Transistors series. Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.001270 oz SMD/SMT Mounting-Style SOT-23-6 Surface Mount mounting type Supplier device package: SOT-23-6 Configuration Single Transistor type: PNP Maximum current collector Ic is 3A . Maximum collector-emitter breakdown voltage of 30V DC current gain minimum (hFE) of Ic/Vce at 100 @ 500mA, 1V. Product Attribute: Vce-Saturation-Max-Ib-Ic: 500mV @ 20mA, 2A Power-off control: 1200 mW Maximum operating temperature of + 150 C Minimum operating temperature: - 65 C Rated VCEO up to - 30 V The transistor polarity is PNP. Saturation voltage between collector and emitter is - 0.21 V The - 30 V voltage rating is 40 V. - 5 V rating of 5 V Max DC collector current: 3 A This product is capable of handling a - 3 A continuous collector current. Minimum hfe for DC collector-base gain is 100.
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

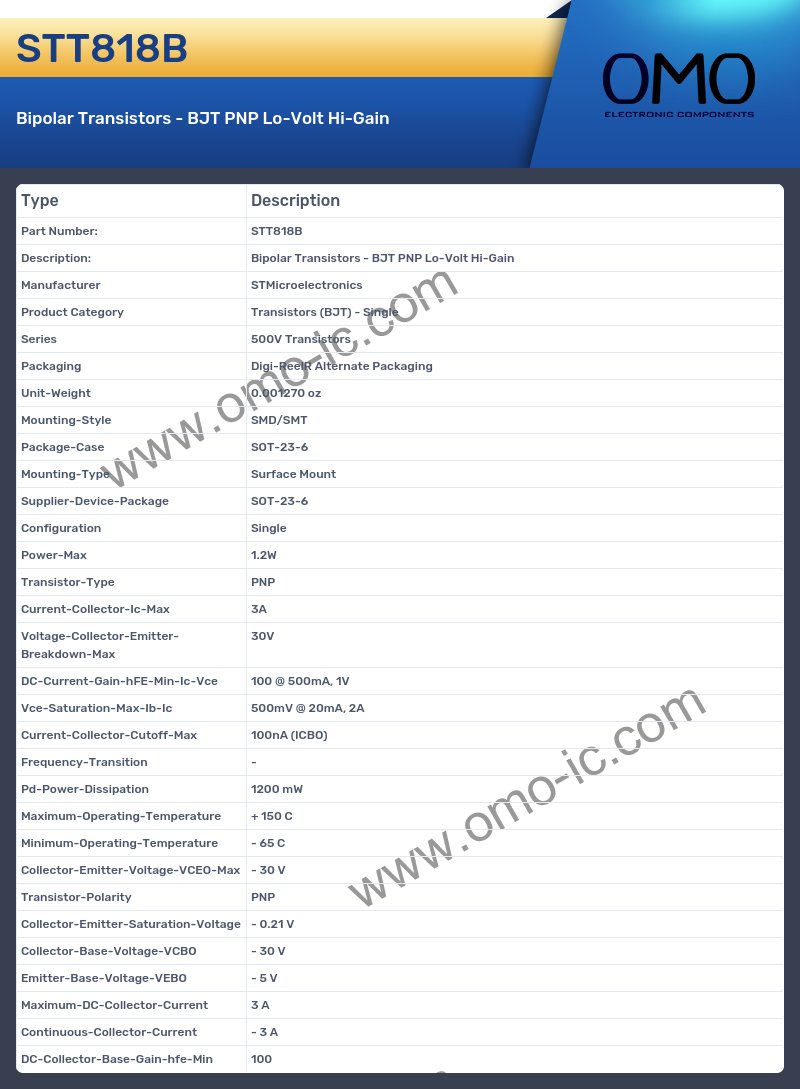

STT818B Specifications
