STTH15L06D

STTH15L06D Overview

Product belongs to the STTH15L06 series. This product is categorized as Ultra Fast Recovery Rectifiers Tube is the packaging method for this product Weight of 0.211644 oz Through Hole Mounting-Style TO-220-2 Through Hole mounting type Supplier device package: TO-220AC Configuration Single Operating frequency: Fast Recovery = 200mA (Io) Standard diode type The 15μA @ 600V Current-Reverse-Leakage-Vr 1. Vf Max 1.55V @ 15A is the Voltage-Forward; Maximum DC reverse voltage 600V The 15A Current-Average-Rectified-Io; The capacitance value of this product is - for maximum efficiency. Operating-Temperature-Junction: 175°C (Max) Maximum operating temperature of + 175 C Minimum operating temperature: - 65 C Vf-Forward-Voltage: 1.55 V at 15 A VR Reverse Voltage of 600 V Ir-Reverse-Current is 15 uA. If-Forward-Current is 15 A. Maximum Surge Current: 130 A

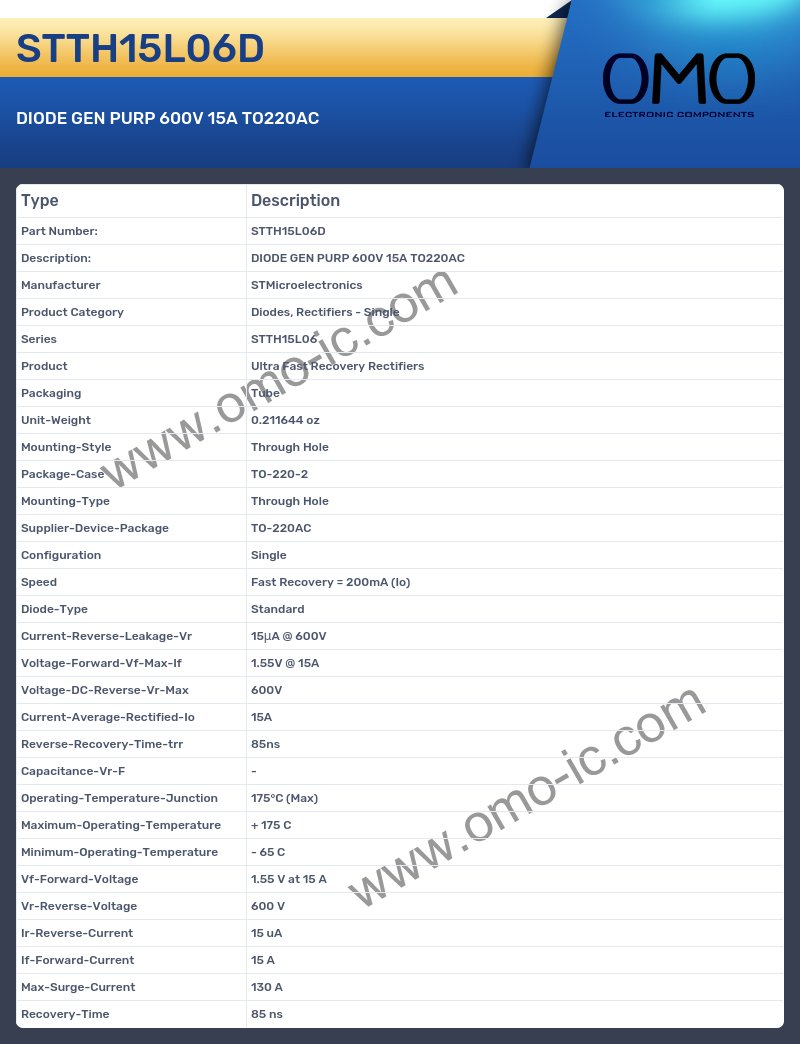

STTH15L06D Image

STTH15L06D Specifications

• Manufacturer STMicroelectronics
• Product Category Diodes, Rectifiers - Single
• Series STTH15L06
• Product Ultra Fast Recovery Rectifiers
• Packaging Tube
• Unit-Weight 0.211644 oz
• Mounting-Style Through Hole
• Package-Case TO-220-2
• Mounting-Type Through Hole
• Supplier-Device-Package TO-220AC
• Configuration Single
• Speed Fast Recovery = 200mA (Io)
• Diode-Type Standard
• Current-Reverse-Leakage-Vr 15μA @ 600V
• Voltage-Forward-Vf-Max-If 1.55V @ 15A
• Voltage-DC-Reverse-Vr-Max 600V
• Current-Average-Rectified-Io 15A
• Reverse-Recovery-Time-trr 85ns
• Capacitance-Vr-F -
• Operating-Temperature-Junction 175°C (Max)
• Maximum-Operating-Temperature + 175 C
• Minimum-Operating-Temperature - 65 C
• Vf-Forward-Voltage 1.55 V at 15 A
• Vr-Reverse-Voltage 600 V
• Ir-Reverse-Current 15 uA
• If-Forward-Current 15 A
• Max-Surge-Current 130 A
• Recovery-Time 85 ns
