STTH1L06RL

STTH1L06RL Overview

Product belongs to the STTH1L06 series. This product is categorized as Ultra Fast Recovery Rectifiers Cut Tape (CT) Alternate Packaging is the packaging method for this product Weight of 0.010935 oz Through Hole Mounting-Style DO-204AL, DO-41, Axial Through Hole mounting type Supplier device package: DO-41 Configuration Single Operating frequency: Fast Recovery = 200mA (Io) Standard diode type The 1μA @ 600V Current-Reverse-Leakage-Vr 1. Vf Max 1.3V @ 1A is the Voltage-Forward; Maximum DC reverse voltage 600V The 1A Current-Average-Rectified-Io; The capacitance value of this product is - for maximum efficiency. Operating-Temperature-Junction: 175°C (Max) Maximum operating temperature of + 175 C Minimum operating temperature: - 65 C Vf-Forward-Voltage: 1.3 V VR Reverse Voltage of 600 V Ir-Reverse-Current is 1 uA. If-Forward-Current is 1 A. Maximum Surge Current: 30 A

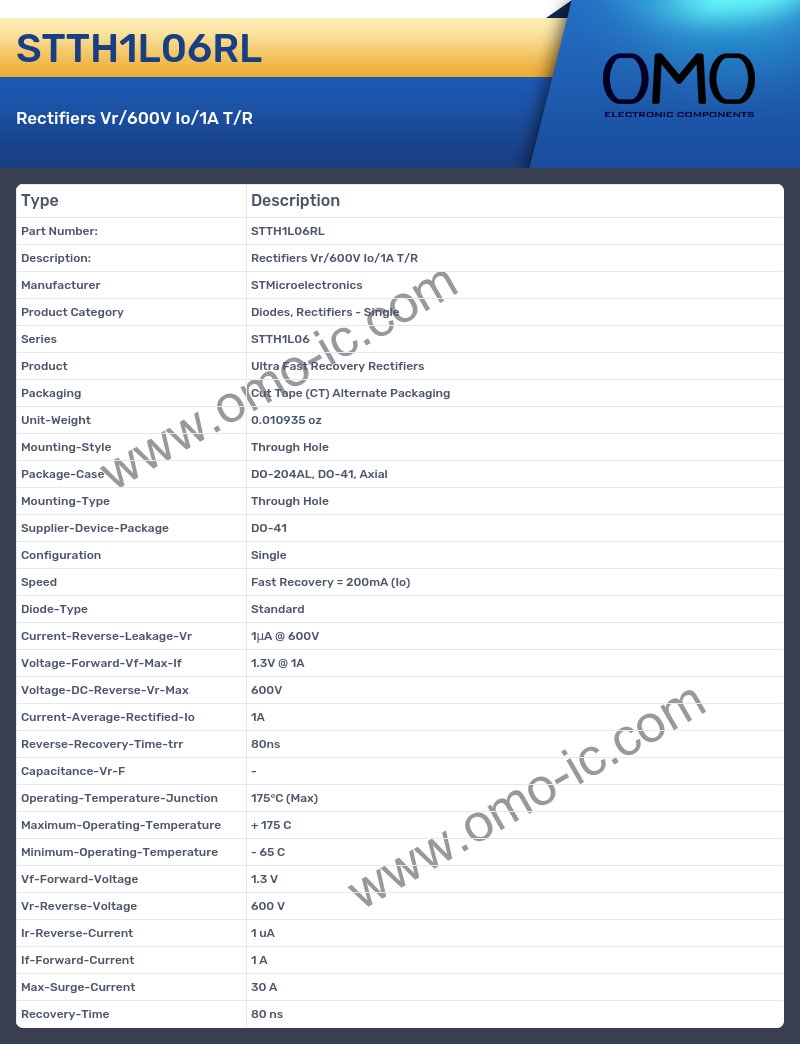

STTH1L06RL Image

STTH1L06RL Specifications

• Manufacturer STMicroelectronics
• Product Category Diodes, Rectifiers - Single
• Series STTH1L06
• Product Ultra Fast Recovery Rectifiers
• Packaging Cut Tape (CT) Alternate Packaging
• Unit-Weight 0.010935 oz
• Mounting-Style Through Hole
• Package-Case DO-204AL, DO-41, Axial
• Mounting-Type Through Hole
• Supplier-Device-Package DO-41
• Configuration Single
• Speed Fast Recovery = 200mA (Io)
• Diode-Type Standard
• Current-Reverse-Leakage-Vr 1μA @ 600V
• Voltage-Forward-Vf-Max-If 1.3V @ 1A
• Voltage-DC-Reverse-Vr-Max 600V
• Current-Average-Rectified-Io 1A
• Reverse-Recovery-Time-trr 80ns
• Capacitance-Vr-F -
• Operating-Temperature-Junction 175°C (Max)
• Maximum-Operating-Temperature + 175 C
• Minimum-Operating-Temperature - 65 C
• Vf-Forward-Voltage 1.3 V
• Vr-Reverse-Voltage 600 V
• Ir-Reverse-Current 1 uA
• If-Forward-Current 1 A
• Max-Surge-Current 30 A
• Recovery-Time 80 ns
