STTH2002D

STTH2002D Overview

Product belongs to the STTH2002 series. This product is categorized as Ultra Fast Recovery Rectifiers Tube is the packaging method for this product Weight of 0.211644 oz Through Hole Mounting-Style TO-220-2 Through Hole mounting type Supplier device package: TO-220AC Configuration Single Operating frequency: Fast Recovery = 200mA (Io) Standard diode type The 10μA @ 200V Current-Reverse-Leakage-Vr 1. Vf Max 1.1V @ 20A is the Voltage-Forward; Maximum DC reverse voltage 200V The 20A Current-Average-Rectified-Io; The capacitance value of this product is - for maximum efficiency. Operating-Temperature-Junction: 175°C (Max) Maximum operating temperature of + 175 C Minimum operating temperature: - 65 C Vf-Forward-Voltage: 1.15 V at 25 A VR Reverse Voltage of 200 V Ir-Reverse-Current is 10 uA. If-Forward-Current is 20 A. Maximum Surge Current: 175 A

STTH2002D Image

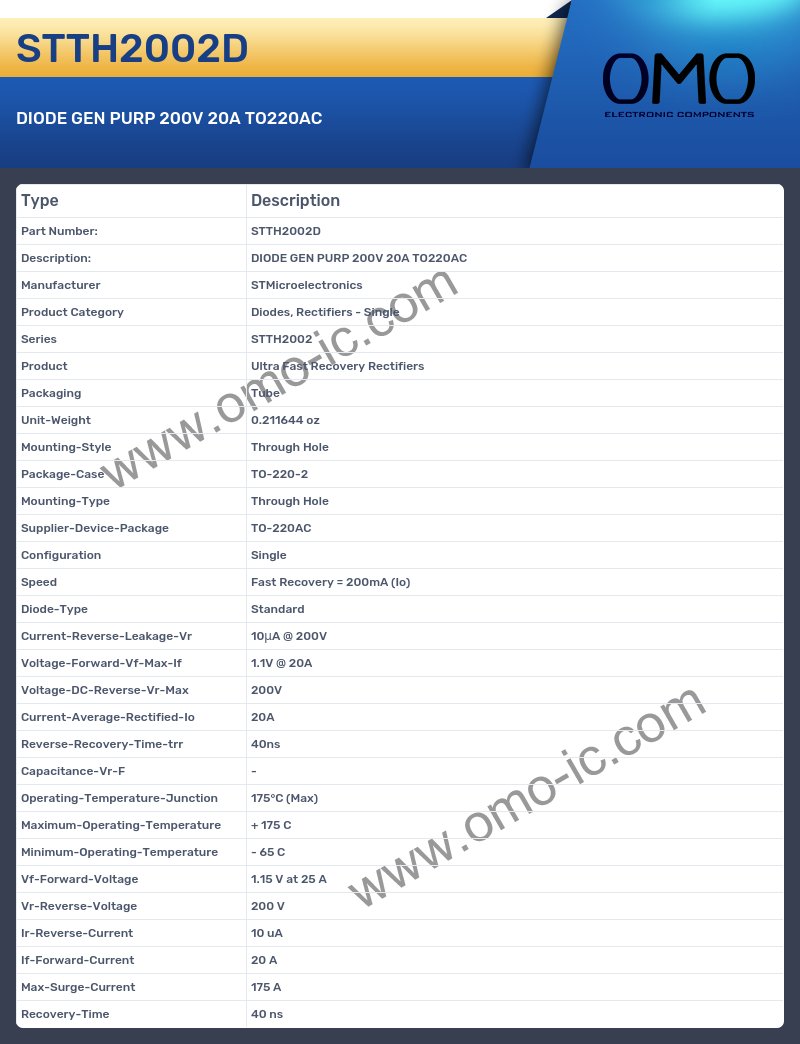

STTH2002D Specifications

• Manufacturer STMicroelectronics
• Product Category Diodes, Rectifiers - Single
• Series STTH2002
• Product Ultra Fast Recovery Rectifiers
• Packaging Tube
• Unit-Weight 0.211644 oz
• Mounting-Style Through Hole
• Package-Case TO-220-2
• Mounting-Type Through Hole
• Supplier-Device-Package TO-220AC
• Configuration Single
• Speed Fast Recovery = 200mA (Io)
• Diode-Type Standard
• Current-Reverse-Leakage-Vr 10μA @ 200V
• Voltage-Forward-Vf-Max-If 1.1V @ 20A
• Voltage-DC-Reverse-Vr-Max 200V
• Current-Average-Rectified-Io 20A
• Reverse-Recovery-Time-trr 40ns
• Capacitance-Vr-F -
• Operating-Temperature-Junction 175°C (Max)
• Maximum-Operating-Temperature + 175 C
• Minimum-Operating-Temperature - 65 C
• Vf-Forward-Voltage 1.15 V at 25 A
• Vr-Reverse-Voltage 200 V
• Ir-Reverse-Current 10 uA
• If-Forward-Current 20 A
• Max-Surge-Current 175 A
• Recovery-Time 40 ns
