STTH3002G-TR

STTH3002G-TR Overview

Product belongs to the STTH3002 series. This product is categorized as Ultra Fast Recovery Rectifiers Cut Tape (CT) Alternate Packaging is the packaging method for this product Weight of 0.070548 oz SMD/SMT Mounting-Style TO-263-3, D2Pak (2 Leads + Tab), TO-263AB Surface Mount mounting type Supplier device package: D2PAK Configuration Single Operating frequency: Fast Recovery = 200mA (Io) Standard diode type The 20μA @ 200V Current-Reverse-Leakage-Vr 1. Vf Max 1.05V @ 30A is the Voltage-Forward; Maximum DC reverse voltage 200V The 30A Current-Average-Rectified-Io; The capacitance value of this product is - for maximum efficiency. Operating-Temperature-Junction: 175°C (Max) Maximum operating temperature of + 175 C Minimum operating temperature: - 65 C Vf-Forward-Voltage: 1.05 V VR Reverse Voltage of 200 V Ir-Reverse-Current is 20 uA. If-Forward-Current is 30 A. Maximum Surge Current: 300 A

STTH3002G-TR Image

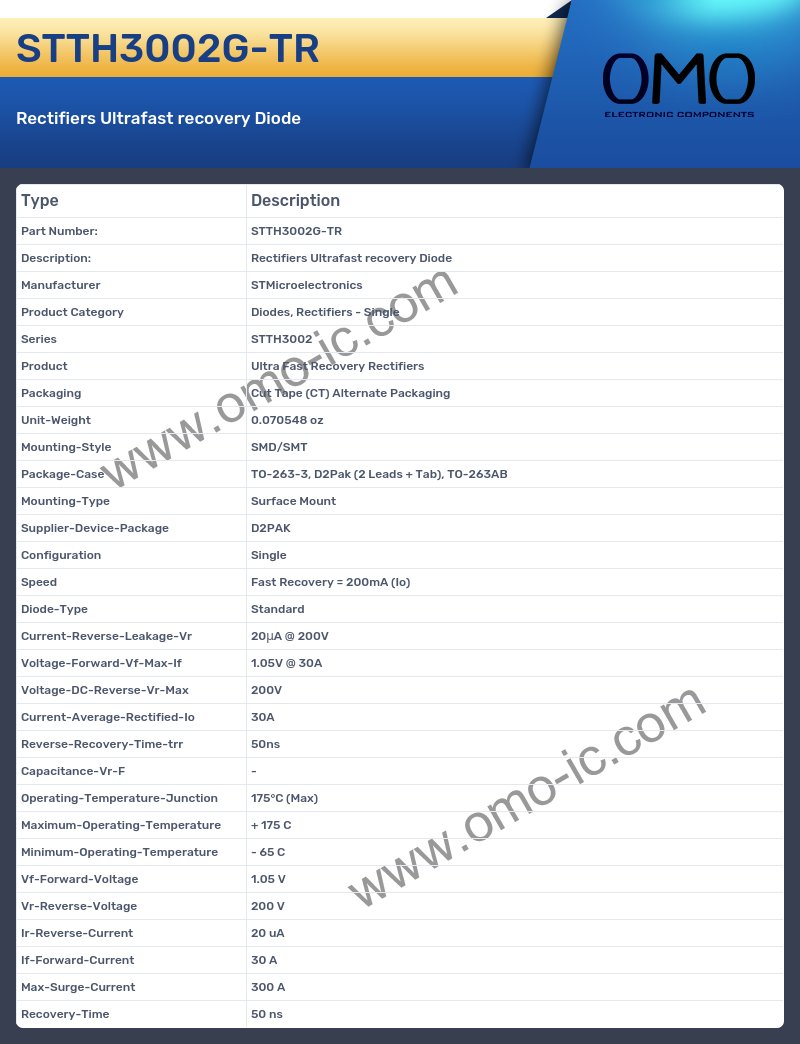

STTH3002G-TR Specifications

• Manufacturer STMicroelectronics
• Product Category Diodes, Rectifiers - Single
• Series STTH3002
• Product Ultra Fast Recovery Rectifiers
• Packaging Cut Tape (CT) Alternate Packaging
• Unit-Weight 0.070548 oz
• Mounting-Style SMD/SMT
• Package-Case TO-263-3, D2Pak (2 Leads + Tab), TO-263AB
• Mounting-Type Surface Mount
• Supplier-Device-Package D2PAK
• Configuration Single
• Speed Fast Recovery = 200mA (Io)
• Diode-Type Standard
• Current-Reverse-Leakage-Vr 20μA @ 200V
• Voltage-Forward-Vf-Max-If 1.05V @ 30A
• Voltage-DC-Reverse-Vr-Max 200V
• Current-Average-Rectified-Io 30A
• Reverse-Recovery-Time-trr 50ns
• Capacitance-Vr-F -
• Operating-Temperature-Junction 175°C (Max)
• Maximum-Operating-Temperature + 175 C
• Minimum-Operating-Temperature - 65 C
• Vf-Forward-Voltage 1.05 V
• Vr-Reverse-Voltage 200 V
• Ir-Reverse-Current 20 uA
• If-Forward-Current 30 A
• Max-Surge-Current 300 A
• Recovery-Time 50 ns
