STTH3002PI

STTH3002PI Overview

Product belongs to the STTH3002 series. This product is categorized as Ultra Fast Recovery Rectifiers Tube is the packaging method for this product Through Hole Mounting-Style DOP 3 ISOL Through Hole mounting type Supplier device package: DOP3I Configuration Single Operating frequency: Fast Recovery = 200mA (Io) Standard diode type The 20μA @ 200V Current-Reverse-Leakage-Vr 1. Vf Max 1.05V @ 30A is the Voltage-Forward; Maximum DC reverse voltage 200V The 30A Current-Average-Rectified-Io; The capacitance value of this product is - for maximum efficiency. Operating-Temperature-Junction: 175°C (Max) Maximum operating temperature of + 175 C Minimum operating temperature: - 65 C Vf-Forward-Voltage: 1.05 V VR Reverse Voltage of 200 V Ir-Reverse-Current is 20 uA. If-Forward-Current is 30 A. Maximum Surge Current: 300 A

STTH3002PI Image

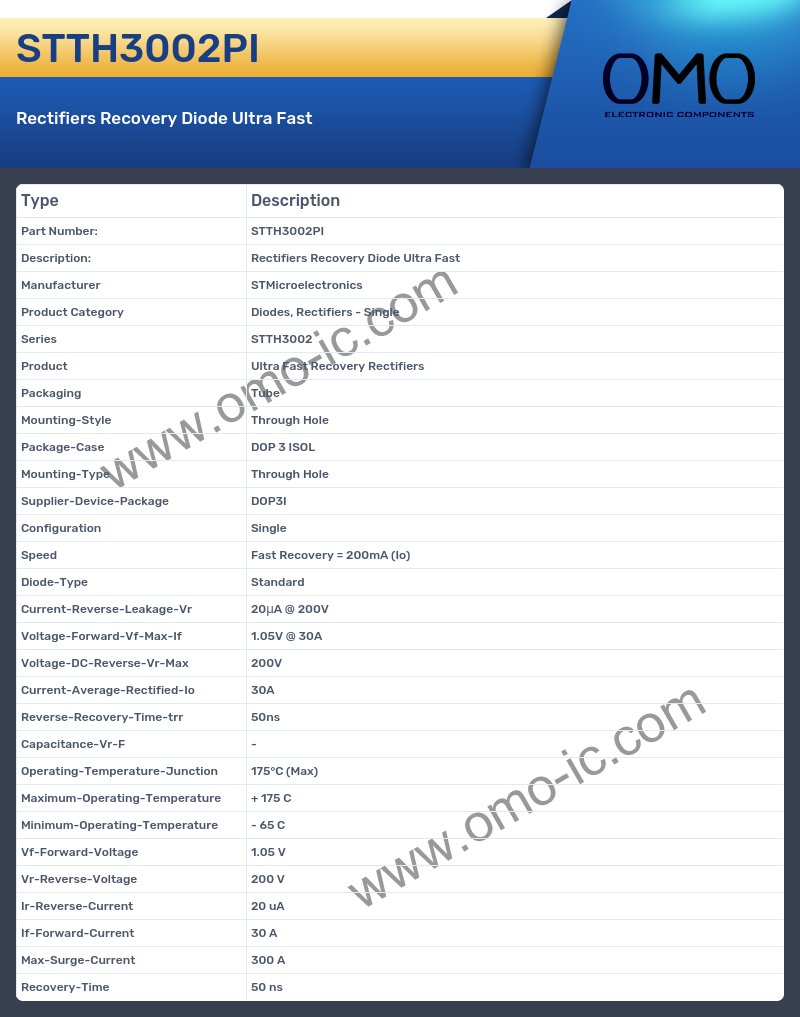

STTH3002PI Specifications

• Manufacturer STMicroelectronics
• Product Category Diodes, Rectifiers - Single
• Series STTH3002
• Product Ultra Fast Recovery Rectifiers
• Packaging Tube
• Mounting-Style Through Hole
• Package-Case DOP 3 ISOL
• Mounting-Type Through Hole
• Supplier-Device-Package DOP3I
• Configuration Single
• Speed Fast Recovery = 200mA (Io)
• Diode-Type Standard
• Current-Reverse-Leakage-Vr 20μA @ 200V
• Voltage-Forward-Vf-Max-If 1.05V @ 30A
• Voltage-DC-Reverse-Vr-Max 200V
• Current-Average-Rectified-Io 30A
• Reverse-Recovery-Time-trr 50ns
• Capacitance-Vr-F -
• Operating-Temperature-Junction 175°C (Max)
• Maximum-Operating-Temperature + 175 C
• Minimum-Operating-Temperature - 65 C
• Vf-Forward-Voltage 1.05 V
• Vr-Reverse-Voltage 200 V
• Ir-Reverse-Current 20 uA
• If-Forward-Current 30 A
• Max-Surge-Current 300 A
• Recovery-Time 50 ns
