STTH3010PI

STTH3010PI Overview

Product belongs to the STTH3010 series. This product is categorized as Ultra Fast Recovery Rectifiers Tube is the packaging method for this product Through Hole Mounting-Style DOP3I-2 Insulated (Straight Leads) Through Hole mounting type Supplier device package: DOP3I Configuration Single Operating frequency: Fast Recovery = 200mA (Io) Standard diode type The 15μA @ 1000V Current-Reverse-Leakage-Vr 1. Vf Max 2V @ 30A is the Voltage-Forward; Maximum DC reverse voltage 1000V (1kV) The 30A Current-Average-Rectified-Io; The capacitance value of this product is - for maximum efficiency. Operating-Temperature-Junction: 175°C (Max) Maximum operating temperature of + 175 C Minimum operating temperature: - 65 C Vf-Forward-Voltage: 2 V VR Reverse Voltage of 1000 V Ir-Reverse-Current is 15 uA. If-Forward-Current is 30 A. Maximum Surge Current: 180 A

STTH3010PI Image

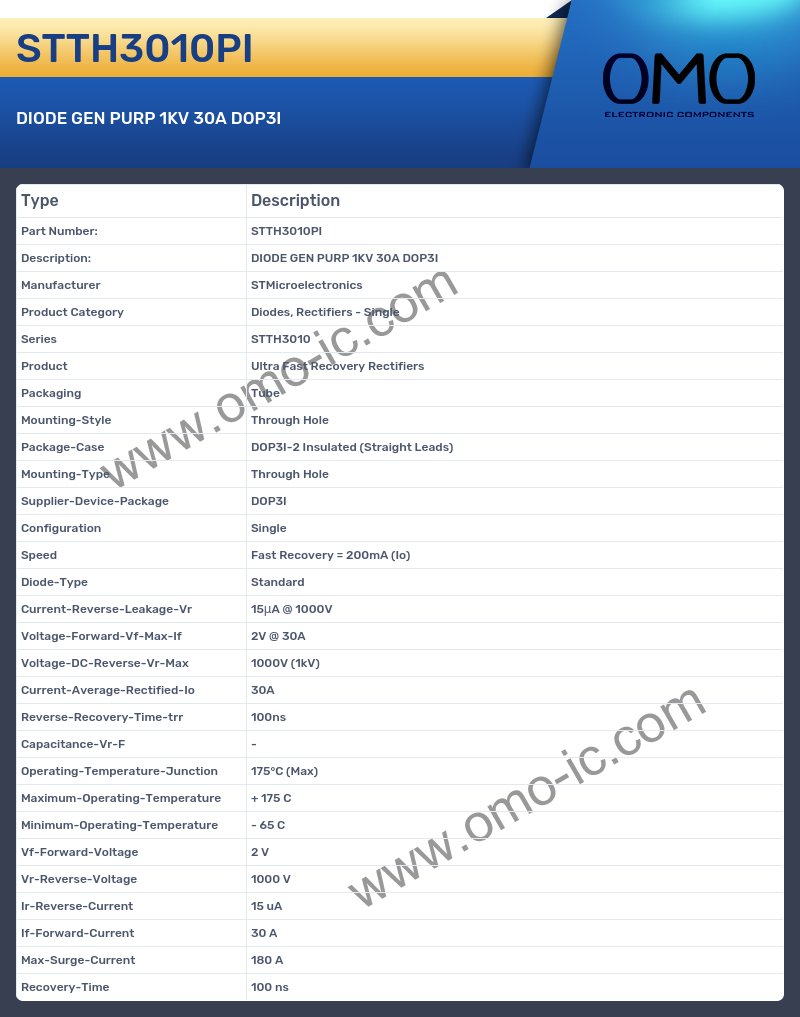

STTH3010PI Specifications

• Manufacturer STMicroelectronics
• Product Category Diodes, Rectifiers - Single
• Series STTH3010
• Product Ultra Fast Recovery Rectifiers
• Packaging Tube
• Mounting-Style Through Hole
• Package-Case DOP3I-2 Insulated (Straight Leads)
• Mounting-Type Through Hole
• Supplier-Device-Package DOP3I
• Configuration Single
• Speed Fast Recovery = 200mA (Io)
• Diode-Type Standard
• Current-Reverse-Leakage-Vr 15μA @ 1000V
• Voltage-Forward-Vf-Max-If 2V @ 30A
• Voltage-DC-Reverse-Vr-Max 1000V (1kV)
• Current-Average-Rectified-Io 30A
• Reverse-Recovery-Time-trr 100ns
• Capacitance-Vr-F -
• Operating-Temperature-Junction 175°C (Max)
• Maximum-Operating-Temperature + 175 C
• Minimum-Operating-Temperature - 65 C
• Vf-Forward-Voltage 2 V
• Vr-Reverse-Voltage 1000 V
• Ir-Reverse-Current 15 uA
• If-Forward-Current 30 A
• Max-Surge-Current 180 A
• Recovery-Time 100 ns
