STTH3012D

STTH3012D Overview

Product belongs to the STTH3012 series. This product is categorized as Ultra Fast Recovery Rectifiers Tube is the packaging method for this product Weight of 0.211644 oz Through Hole Mounting-Style TO-220-2 Through Hole mounting type Supplier device package: TO-220AC Configuration Single Operating frequency: Fast Recovery = 200mA (Io) Standard diode type The 20μA @ 1200V Current-Reverse-Leakage-Vr 1. Vf Max 2.25V @ 30A is the Voltage-Forward; Maximum DC reverse voltage 1200V (1.2kV) The 30A Current-Average-Rectified-Io; The capacitance value of this product is - for maximum efficiency. Operating-Temperature-Junction: 175°C (Max) Maximum operating temperature of + 175 C Minimum operating temperature: - 65 C Vf-Forward-Voltage: 2.25 V VR Reverse Voltage of 1200 V Ir-Reverse-Current is 20 uA. If-Forward-Current is 30 A. Maximum Surge Current: 210 A

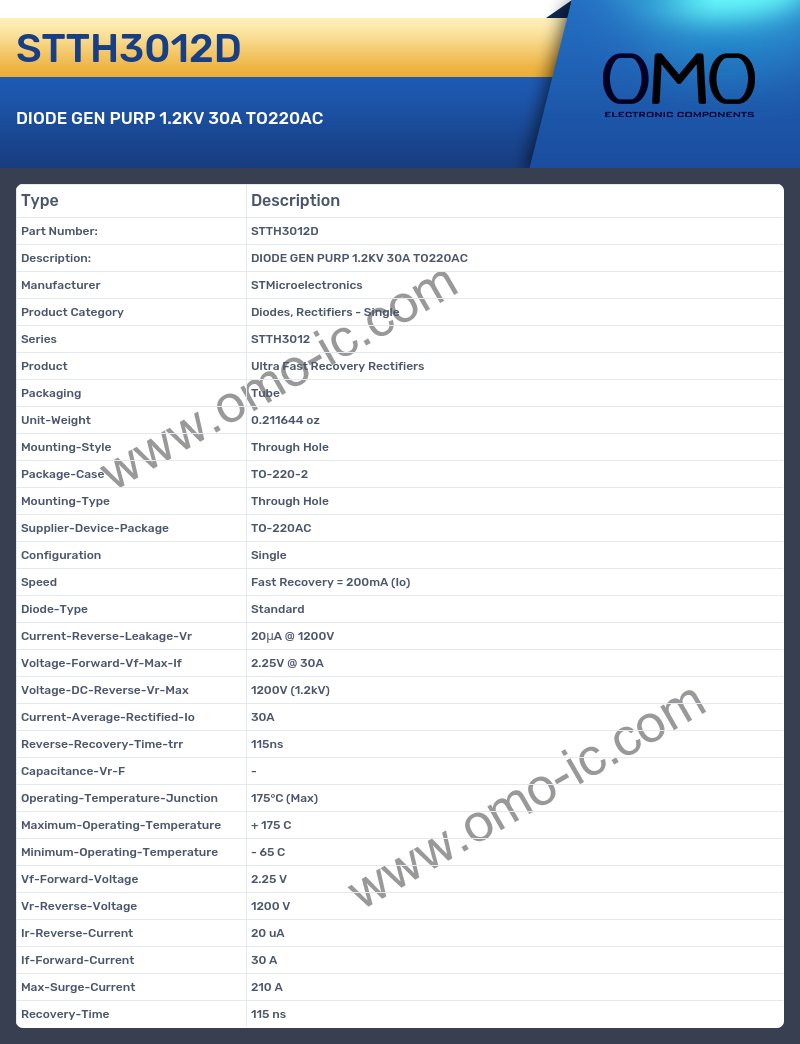

STTH3012D Image

STTH3012D Specifications

• Manufacturer STMicroelectronics
• Product Category Diodes, Rectifiers - Single
• Series STTH3012
• Product Ultra Fast Recovery Rectifiers
• Packaging Tube
• Unit-Weight 0.211644 oz
• Mounting-Style Through Hole
• Package-Case TO-220-2
• Mounting-Type Through Hole
• Supplier-Device-Package TO-220AC
• Configuration Single
• Speed Fast Recovery = 200mA (Io)
• Diode-Type Standard
• Current-Reverse-Leakage-Vr 20μA @ 1200V
• Voltage-Forward-Vf-Max-If 2.25V @ 30A
• Voltage-DC-Reverse-Vr-Max 1200V (1.2kV)
• Current-Average-Rectified-Io 30A
• Reverse-Recovery-Time-trr 115ns
• Capacitance-Vr-F -
• Operating-Temperature-Junction 175°C (Max)
• Maximum-Operating-Temperature + 175 C
• Minimum-Operating-Temperature - 65 C
• Vf-Forward-Voltage 2.25 V
• Vr-Reverse-Voltage 1200 V
• Ir-Reverse-Current 20 uA
• If-Forward-Current 30 A
• Max-Surge-Current 210 A
• Recovery-Time 115 ns
